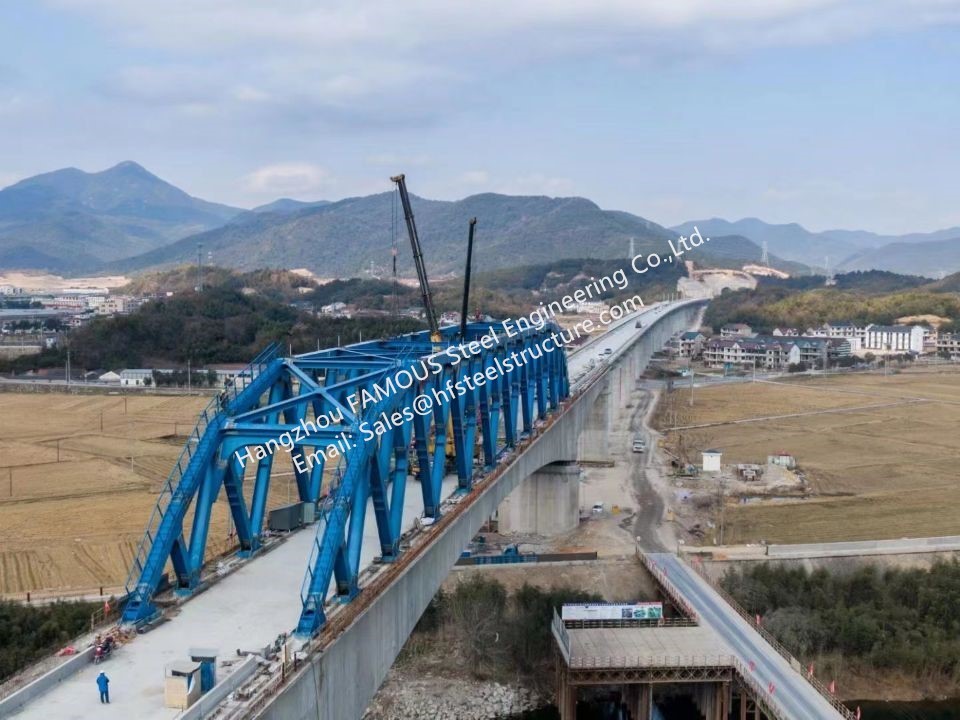

Bowstring Concrete Roller Steel Girder Railway Bridge Structure Truss H Welded Frame
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | IS09001 |
| Model Number | NO.100 |
| Minimum Order Quantity | 100MT |
| Price | USD 1100-3100 PER TON |
| Packaging Details | container or break bulk vessel of seaworhty type packings |
| Delivery Time | 60-120 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 ton per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Steel Structure Bridge For Railway Construction | Warranty | QA QC Of Foreign Standard |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Overseas,Field Installation,commissioning And Training,Online Support | Surface Treatment | Hot Dip Galvanized Or Painted |
| Grade | Q235 Q355 & Q460 Steel Etc | Performance | Safety, Convenient, Install Easily Etc. |
| Color | Sandblast,Client's Demand,customized | Standard | ASTM,BS,GB,AISI,DIN |
| High Light | steels bowstring girders bridges FASEC,FASEC steels bowstring girders bridges,FASEC steels bowstrings bridges |
||
Product Description

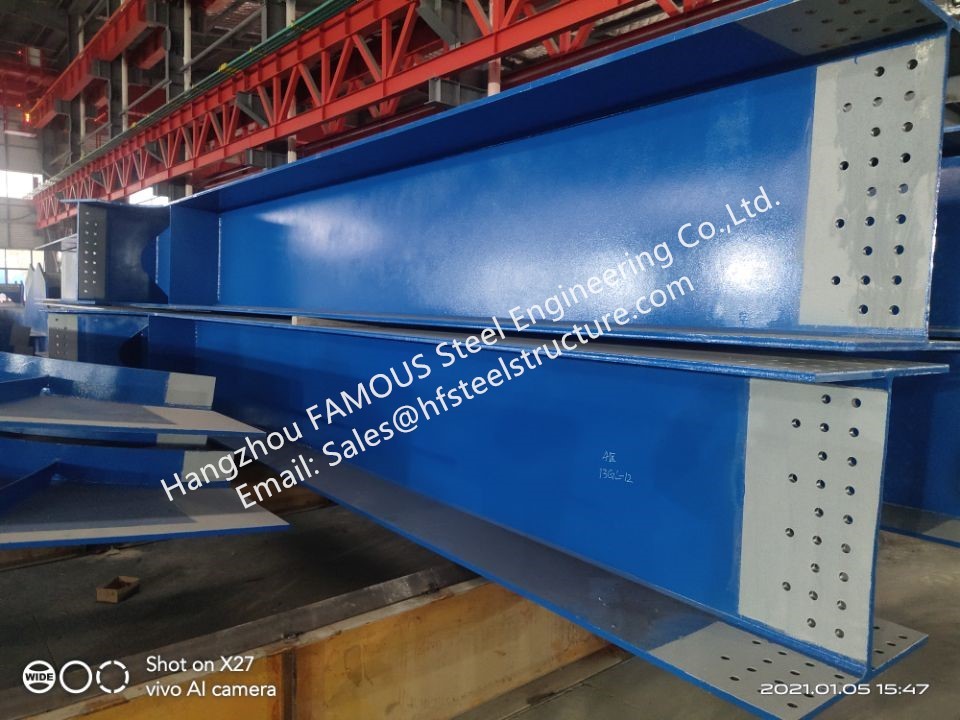

Steel Structure Prefabricated Modern Steel Girder Bridge H Welded Frame Truss Bridge
Advantages of our products
1. High strength, high strength-to-weight ratio; good plasticity and toughness;
2. Uniform material, high safety and reliability;
3. Factory production, high degree of industrialization, fast construction speed;
4. The total weight of the building is light, and the steel structure residential system uses various lightweight materials;
5. Good environmental protection effect;
6. It has a high price-performance ratio and meets the requirements of residential industrialization and sustainable development;

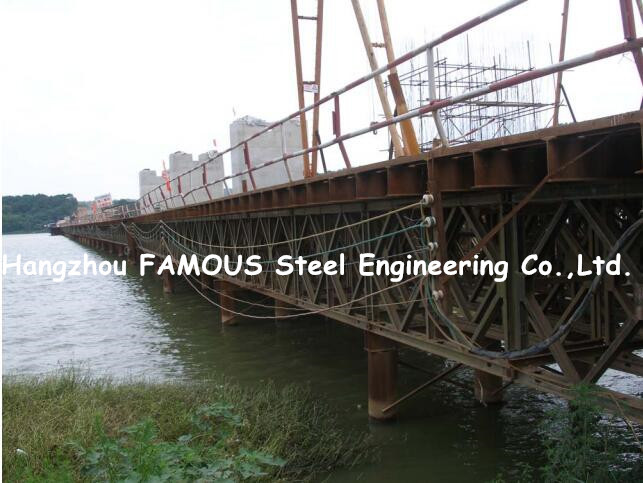

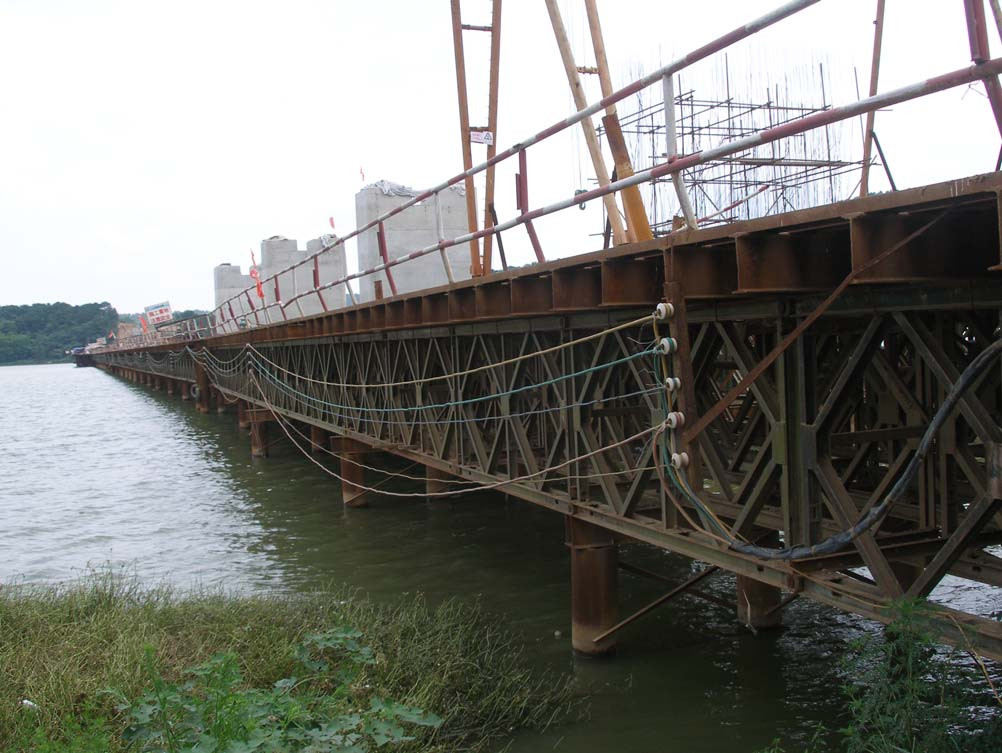

| Table of characteristics of truss bridge(Half bridge) | ||||
| structure | geometric characteristics | |||
| geometric characteristics | chord area(cm2) | Section properties(cm3) | Moment of inertia(cm4) | |
| ss | SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 | |
| DS | DS | 50.96 | 10875 | 1160348 |
| DSR1 | 76.44 | 16312 | 1740522 | |
| DSR2 | 101.92 | 21750 | 2320696 | |
| TS | TS | 76.44 | 16312 | 1740522 |
| TSR2 | 127.4 | 27185 | 2900870 | |
| TSR3 | 152.88 | 32625 | 3481044 | |
| QS | QS | 101.92 | 21750 | 2320696 |
| QSR3 | 178.36 | 38059 | 4061218 | |
| QSR4 | 203.84 | 43500 | 4641392 | |
Based on the static load test of a simply supported steel box girder suspension bridge spanning the Yangtze River with a main span of 800 m, the strength and stiffness of the control section of the bridge structure under static load are analyzed to evaluate the bearing capacity performance of the bridge.
Through the finite element analysis and simulation of the static load state of the bridge, the measured structural response of the bridge under the actual static load is compared with the finite element simulation analysis results. The results show that the strength and stiffness of the test control section of the extra-large bridge meet the requirements of the specification , the stress condition is consistent with the theoretical simulation results, and the overall performance of the bridge is good.
Wind Resistance
Steel structure building has the performance of high strength, solid rigidity and good deformation capacity, can resist strong wind for 50m/s.
·Durable
The steel material will be painted or galvanized as customers' requirement to be more anticorrosion and rustproof, the lifespan of the structure can be reach to 50~70 years.
·Heat Insulation
Sandwich panel can improve the insulation performance of the building, effectively avoid the phenomenon of "cold bridge" wall
·Environment Protection
Little waste for pollution in construction, 100% steel structure materials can be recycled, most of other related materials also can be recycled.
