Galvanizing Pylons And Steel Rods Contemporary Bridge Architecture

  • Galvanizing Pylons And Steel Rods Contemporary Bridge Architecture
  • Galvanizing Pylons And Steel Rods Contemporary Bridge Architecture
  • Galvanizing Pylons And Steel Rods Contemporary Bridge Architecture
  • Galvanizing Pylons And Steel Rods Contemporary Bridge Architecture
Place of Origin CHINA
Brand Name FASEC
Certification CE
Model Number A
Minimum Order Quantity 100 meters
Price USD50-200 Per Meter
Packaging Details Seaworthy packings into container or bulk vessel
Delivery Time As client's need
Payment Terms L/C, T/T
Supply Ability 600,000 tons per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Time 7-15 Days MOQ 1 Piece
Material Metal Steel Packaging Wooden Case Or As Requested
Process Fabrication Service OEM/ODM
Size Customized Standard GB, ASTM, DIN, JIS, Etc.
Surface Treatment Polishing, Galvanizing, Powder Coating, Etc. Thickness 0.5-20mm
High Light

Pylons and steel rods

,

Galvanizing Pylons steel rods

,

Bridge Architecture Galvanizing steel rods
Leave a Message
Product Description

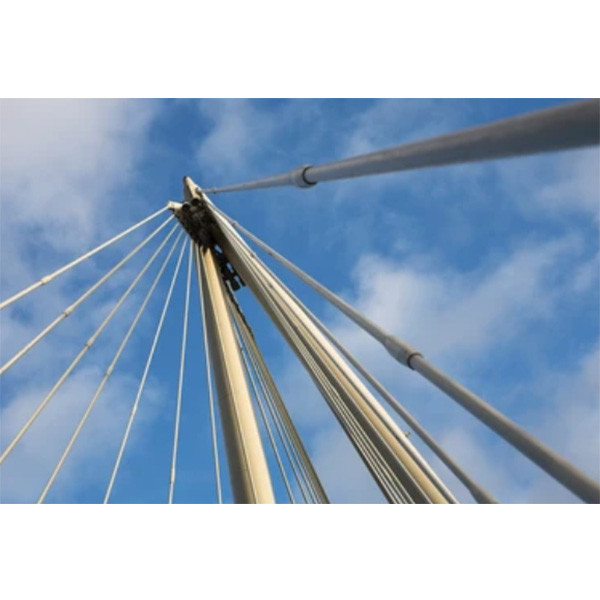

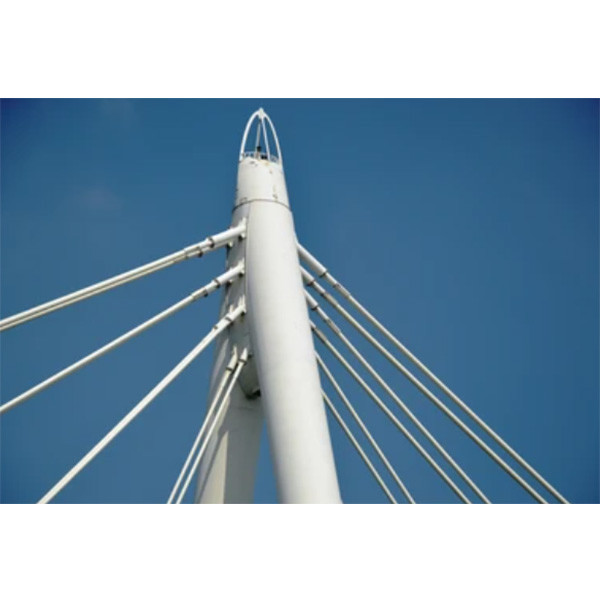

Pylons and steel rods contemporary bridge architecture against a blue sky

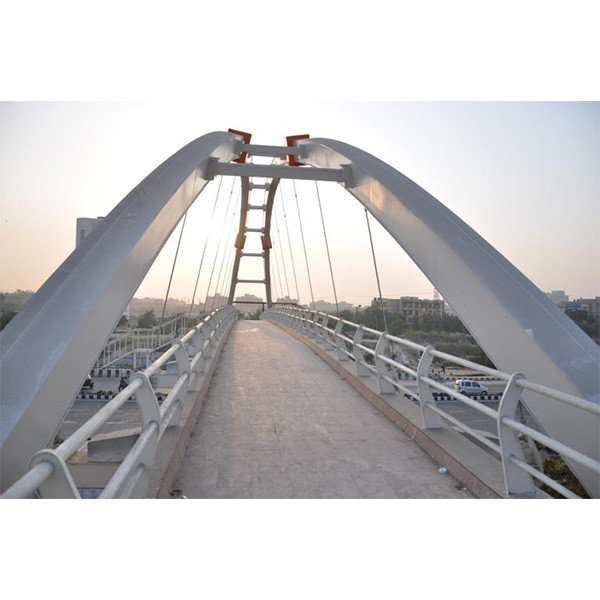

Steel Tention Structures are used for “bow-string” tied-arch bridges.
Whereas the deck is anchored at the hangers which are fitted on the bridge piers.
Our “H-Rod” for hangers and pre-stressed bars are manufactured using a specific industrial process including heat treatment (Quenched + Tempered) that increase the mechanical characteristics.

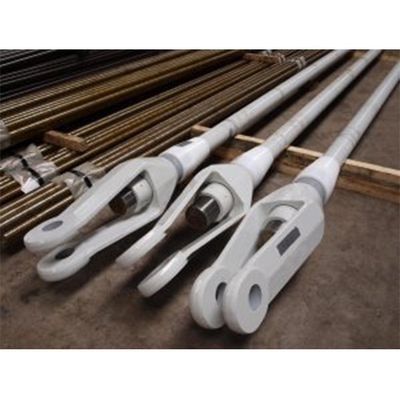

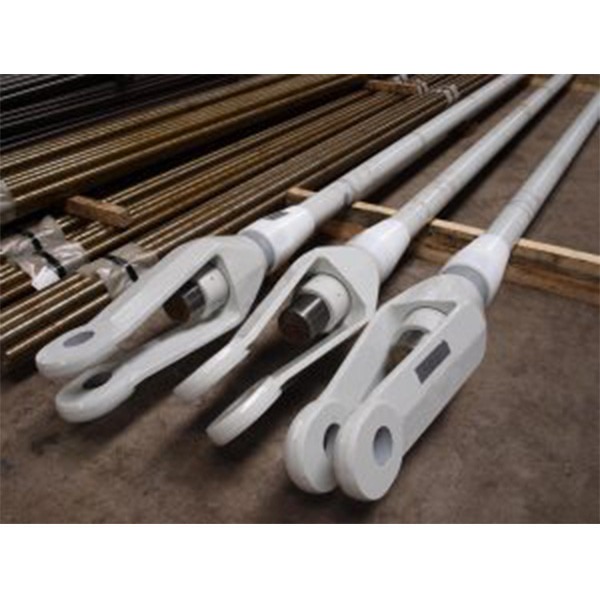

Steel hangers
H-Rods from Filtaro are available in M18 until M160 and in lengths between 200 mm and 17 meters, however the standard grades are S355, S460, S520 and HSA.
All heat treatments and finishes are adjusted to the customer’s grades, for ex. S355NL or S700.
H-Rods advantages:
variable yield strengths
variable tensile strengths
higher elongation
Young modulus: E = 200000 MPa +/- 5 GPa
Impact value (-20°C ) > 57J resp. -40°C or – 70°C on demand
– Threading is performed by cold rolling, in accordance with ISO 965-1.
– Standard lengths: 11800 mm
– On demand up to 17 meters
Quality Insurance:
The production of H-Rods is carried out under a strict Quality Management System according to
ISO 9001:20015.
Moreover, each delivery is supplied with a certificate 3.1 according to the norm EN 10204 for each heat treatment lot.
Additionally each bar is individually marked with its heat treatment lot number.
Protection:
Depending on customer requirements, hot galvanisation, zinc metal coating or zinc multi-disc coating for subsequent treatment according to ACQPA and RAL scale can be applied as corrosion protection.
H-Rods in different STAINLESS STEEL grades
– The resulting ductility, tensile and yield strengths are higher than for usual stainless grades.
– The permanent protection of the hangers is better than for other usual austenitic stainless steel like 316L.
– The application range is particularly adapted for city or harbours buildings close to the sea.
Corrosion protections tests under chlorine influence have proved that this grade is more competitive on the market.
H-Rods advantages:
variable yield strengths
variable tensile strengths
higher elongation
Young modulus: E = 20000
