Shop Welded AASHTO LRFD Steel Arch Bridge for Permanent Road Construction Works
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001; EN 1090-1 FPC; CE; AWS CWI; AISC IBR/ABR |
| Model Number | Steel Arch Bridges |
| Minimum Order Quantity | 100 MT |
| Price | USD 1,000-1,500/MT |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 30-60 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5,000-15,000 MT/Year |
Product Details
| Aestheticoptions | Customizable Arch Shapes And Finishes | Corrosionresistance | High, With Protective Coatings |
|---|---|---|---|
| Aesthetic Options | Customizable With Paint Colors And Architectural Details | Deck Type | Steel Deck Or Composite Deck |
| Foundation Type | Concrete Or Steel Pile Foundations | Construction Method | Prefabrication And On-site Assembly |
| Maintenance Requirements | Regular Inspection And Painting | Environmental Resistance | Resistant To Wind, Seismic Forces, And Temperature Variations |
Product Description
The Shop Welded AASHTO LRFD Steel Arch Bridge is a full factory-fabricated permanent bridge system designed for long-term road and highway infrastructure. Different from conventional on-site welded bridges, this model adopts 100% shop welding under stable factory conditions to ensure consistent weld quality and structural stability.
Fully designed per AASHTO LRFD and fabricated under AWS D1.5M, the bridge applies standard LRFD load-resistance design methodology to meet US highway safety requirements. The closed-box steel arch structure delivers high spanning capability and structural efficiency, ideal for permanent highway overpasses, ramp interchanges and major road crossings.
Shop Welding Core Advantages
Controlled Factory Welding: Climate-stable workshop environment avoids wind, moisture and temperature interference of field welding.- Higher Weld Consistency: Adopts automated SAW/GMAW welding for full penetration, uniform fusion and fewer defects.
- 100% Full NDT Inspection: All primary load-carrying welds complete 100% UT ultrasonic testing in factory.
- No Field Welding Risk: On-site assembly uses high-strength bolted connections to eliminate on-site welding errors and rework.
- Schedule Stability: Fabrication is weather-independent, ensuring on-time project delivery.
- Fast On-Site Erection: Pre-welded modular design greatly shortens construction period and reduces road closure time.
AASHTO LRFD Compliance (US Highway Standard)
Design Method: Official LRFD load & resistance factor design- Design Live Load: Standard HL-93 truck + lane load
- Steel Structure Design: Fully compliant with AASHTO LRFD Section 6 (flexure, shear, fatigue, fracture control)
- Fatigue Performance: Classified per AASHTO 6.6.1.2 fatigue category standards
- Seismic Design: Compliant with AASHTO LRFD seismic provisions
- Design Lifespan: 75–100+ years service life
AWS D1.5M Welding Certification
Top-tier bridge welding standard (stricter than general AWS D1.1)- FCM fracture-critical member specification & enhanced inspection
- 100% UT testing for full-penetration critical welds
- AWS-certified welders + CWI certified inspectors for full-process supervision
- Standard UT/MT/PT multi-level NDT quality control
Key Specifications
| Parameter | Details |
|---|---|
| Design Standard | AASHTO LRFD Bridge Design Specifications (latest edition) – Load and Resistance Factor Design methodology |
| Welding Code | AWS D1.5M Bridge Welding Code (latest edition) |
| Fabrication Method | 100% shop welded – all primary structural welds completed in controlled factory conditions |

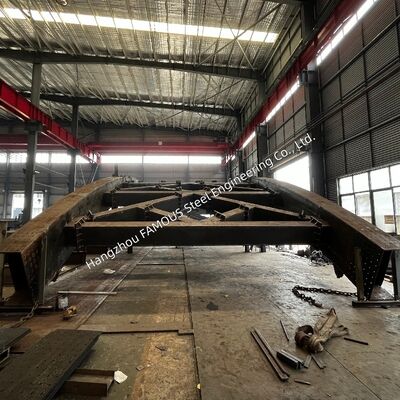

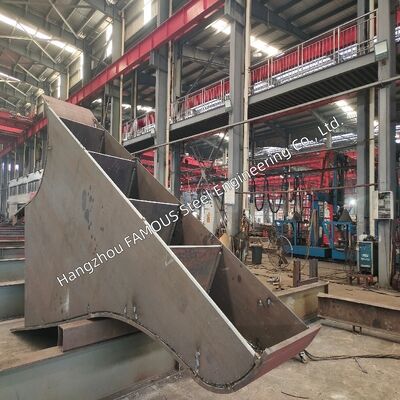

| Arch Section Type | Closed-box arch ribs with internal stiffeners |
| Main Steel Material | ASTM A709 Grade 50; Grade 50W and HPS 70W optional |
| Design Load | HL-93 (design truck + design lane load) |
| Fatigue Design | Per AASHTO LRFD Article 6.6.1.2 |
| Welding NDT | 100% UT on primary load-carrying welds |

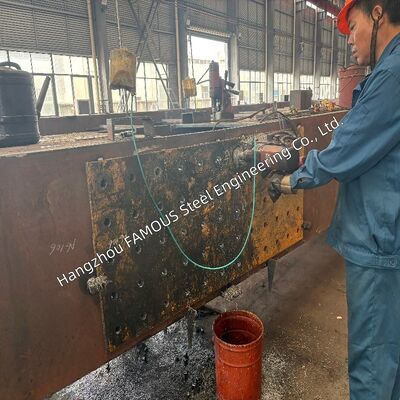

| Field Connection | High-strength bolted, no field welding required |
| Corrosion Protection | Epoxy paint / Hot-dip galvanizing (ASTM A123) / Weathering steel |
| Design Life | 75 – 100+ years |

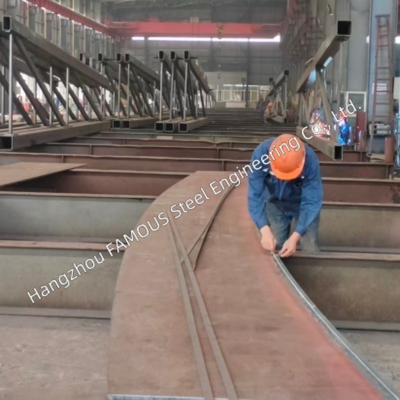

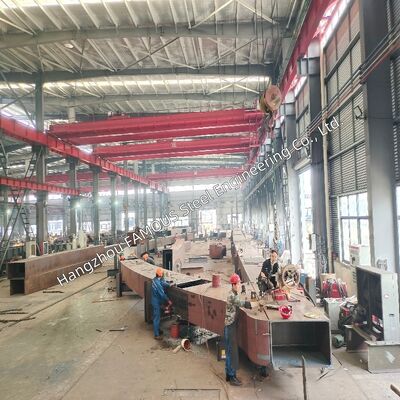

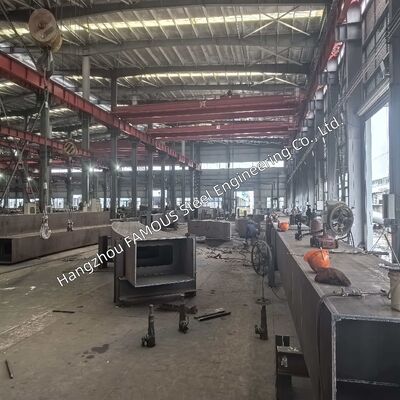

Fabrication & Quality Assurance
• Certified ASTM A709 steel with complete MTR mill test reports- • CNC precision cutting & beveling for accurate assembly
- • Automated SAW/GMAW factory welding
- Full AWS-certified welding team + CWI inspection
- • 100% UT primary weld testing + MT/PT auxiliary inspection
- • Full factory pre-assembly before shipment
- • Professional blast cleaning & customized coating systems
- • Optional third-party inspection: SGS / Bureau Veritas
- • Complete delivery documents: design calculation, WPS/PQR, NDT reports, as-built drawings
Conclusion
The Shop Welded AASHTO LRFD Steel Arch Bridge is a high-quality, long-life permanent road bridge solution. With 100% shop welding, strict AASHTO LRFD & AWS D1.5M compliance, modular bolted assembly and 75–100+ year service life, it ensures:
- • Factory-level stable superior weld quality
- • Full US highway standard compliance
- • Heavy-load highway traffic adaptability
- • Fast on-site installation & low site disruption
- • Complete quality documentation for project approval
Send your bridge span, width and site conditions. We provide AASHTO-standard design, shop welding specification and fixed quotation within 48 hours.
Shop welded for quality, AASHTO engineered for permanent road infrastructure.
