Complete Box Girder Bridge Package with Steel Box Beams, Galvanized Decking & Connection Kits
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001; EN 1090-1 FPC; CE; AWS CWI; AISC IBR/ABR |
| Model Number | Steel Girder Bridge |
| Minimum Order Quantity | 100 MT |
| Price | USD 1,000-1,500/MT |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 30-60 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5,000-15,000 MT/Year |
Product Details
| Product Type | Complete Box Girder Bridge Package | Package Components | Steel Box Beams, Galvanized Bridge Decking, Connection Kits |
|---|---|---|---|
| Steel Box Beams | Prefabricated Closed-section Girders, High-strength Structural Steel | Decking Material | Hot-dip Galvanized Steel Decking |
| Connection Kits | High-strength Bolts, Shear Studs, Bearing Assemblies, Weld Plates, Cross-frame Bracing | Connection Function | Stable Joints Between Girders, Decking, And Substructures |
| Prefabrication | Pre-drilled Connection Holes, Pre-marked Components | Application | Highway Bridges, Urban Overpasses, Railway Bridges, Industrial Access, Coastal Projects |
| Customization | Customized Design Schemes And Engineering Support | After-Sales | Unified After-sales Accountability |
Product Description
Complete Box Girder Bridge Package – Steel Box Beams, Galvanized Decking & Connection Kits is an integrated one-stop bridge solution, removing the trouble of sourcing parts from multiple vendors. This all-inclusive set covers core bridge components: main steel box girders, galvanized composite bridge decking and full connection hardware. Every part is engineered to matched standards for direct on-site assembly. Tailored for highway and infrastructure projects, the package guarantees reliable component compatibility, easier logistics, less procurement workload and shorter construction timelines.
Complete Package Components – Everything You Need in One Shipment
| Component | Specification / Material | Core Function |
|---|---|---|
| Steel Box Beams | High-strength structural steel, prefabricated closed-section girders | Primary load-bearing member delivering torsional rigidity and span support; suitable for curved & long-span bridges |
| Galvanized Bridge Decking | 4mm S350 steel, hot-dip galvanized to ASTM A653 G165 | Acts as permanent formwork and composite structural element working with concrete slabs; offers over 50 years anti-corrosion performance |
| Connection Kits | High-strength bolts, shear studs, bearing assemblies, weld plates | Forms stable joints between girders, decking and substructures; pre-sized for seamless matching with main components |

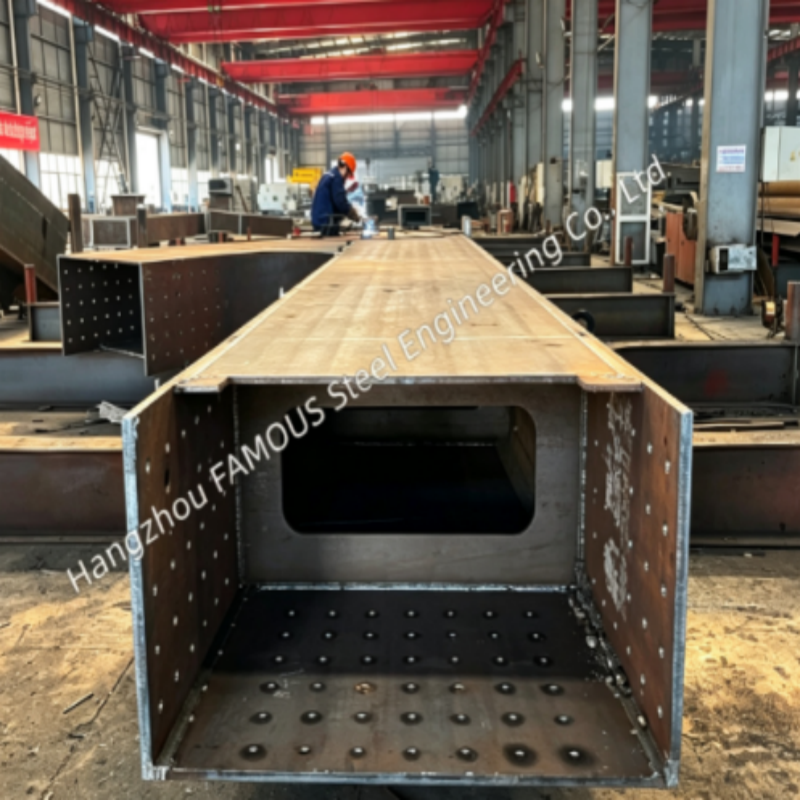

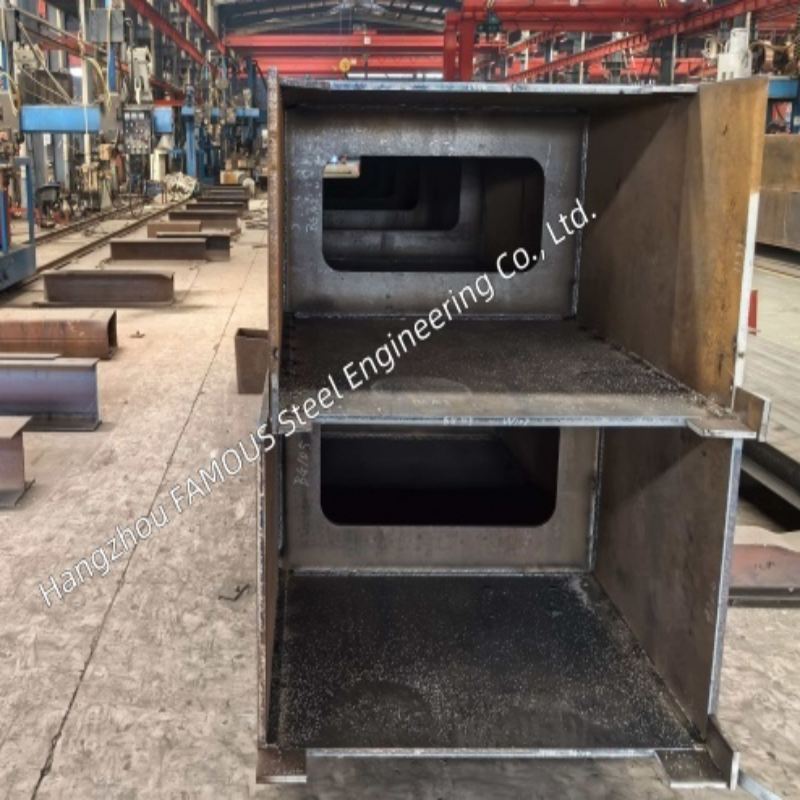

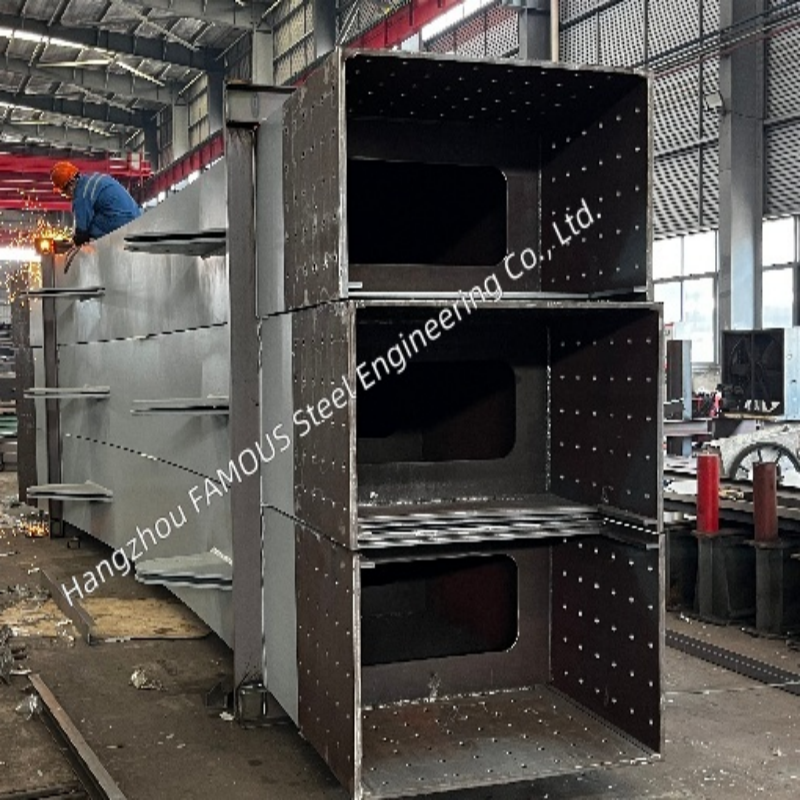

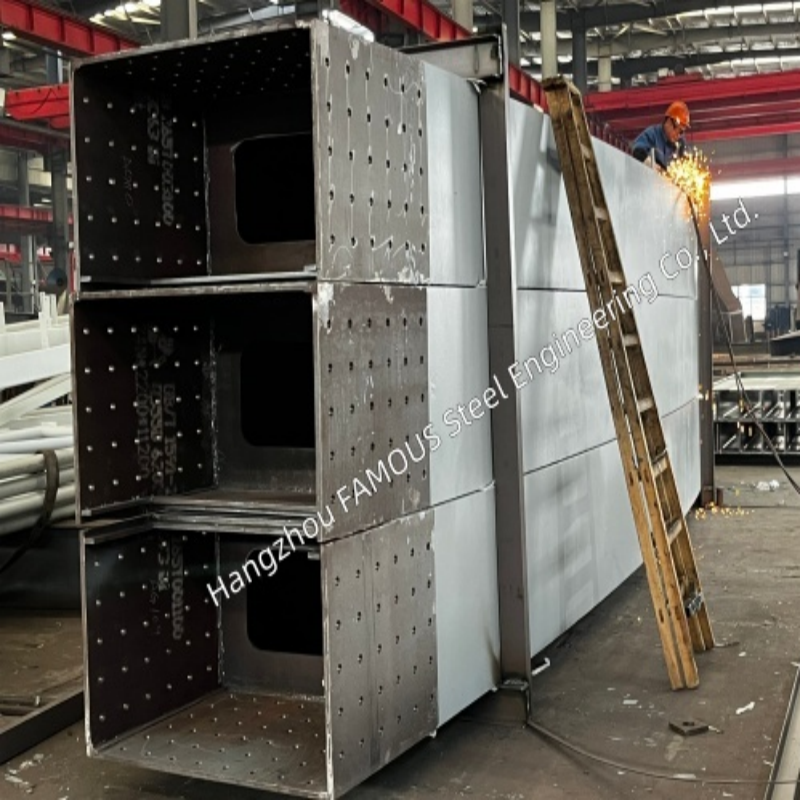

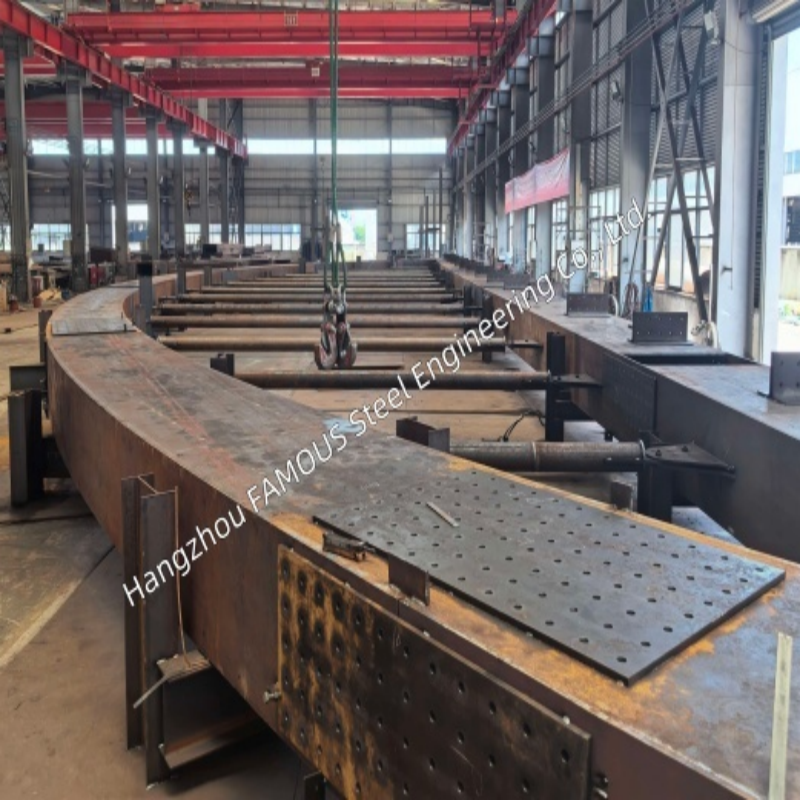

Prefabricated Steel Box Beams – Superior Structural Performance
Main girders adopt closed-section prefabricated box beam design with outstanding torsional stiffness, well adapted for curved highway routes and long-span projects. All beams go through precision welding and strict dimensional inspection, equipped with factory anti-corrosion coating. Featuring favourable strength-to-weight ratio, customized plate thickness for different load demands and pre-drilled connection holes to facilitate rapid field erection.
Galvanized Bridge Decking – Durable Permanent Composite Formwork
The supporting decking serves dual purposes: permanent formwork during concrete pouring, and composite reinforcement after concrete hardening to lift overall load capacity and slab rigidity. Produced from 4mm S350 steel and hot-dip galvanized complying with ASTM A653 G165 (Z600). The galvanized layer effectively resists road salt, moisture and air pollutants. It removes form stripping procedures and greatly accelerates construction progress with multi-decade service life.
Connection Kits – Reliable Matching Joint Hardware
Complete matched connection hardware is supplied together with the main structure, including high-strength bolts for girder splicing, shear studs and weld plates for composite deck connection, bearing assemblies for load transfer and cross-frame bracing for lateral stability. All hardware is pre-matched to beam and deck dimensions to prevent mismatching and avoid construction delays.
Accelerated On-Site Assembly – Optimized Construction Efficiency
The whole package is designed for efficient field erection. Prefabricated and pre-marked components require minimal cutting or rework on site. Pre-drilled connection points support quick alignment. All goods can be delivered via consolidated shipment, without waiting for separate deliveries from different suppliers. Standard connecting interfaces allow installation with conventional cranes and construction crews, reducing project delays and extra expenditure.
Application Range
Suitable for straight & curved highway bridges, urban overpasses and flyovers, bridge widening & reconstruction projects, railway bridges, industrial access bridges, coastal anti-corrosion bridge projects, and overseas infrastructure projects demanding simplified logistics arrangements.
Why Choose the Complete Package?
Single-source procurement brings multiple obvious benefits: simplified ordering and administration; guaranteed component compatibility to avoid on-site modification; consolidated transportation to cut freight and streamline customs clearance; prefabricated integrated goods enabling faster project rollout.
Conclusion – One Coordinated Package for Full Bridge Construction
Complete Box Girder Bridge Package offers the most straightforward solution for box girder bridge procurement and erection. Integrating all required components into one coordinated supply set eliminates multi-supplier management difficulties, reduces logistics cost, speeds up assembly and ensures universal component compatibility, supported by unified after-sales accountability.
Simplify your bridge project now. Get in touch with our team to discuss your technical requirements. We provide customized design schemes, full engineering support and global logistics service to deliver your complete bridge solution on time and within budget.
One package. One supplier. One complete bridge solution.
