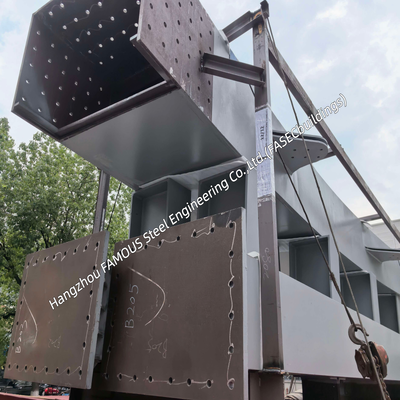

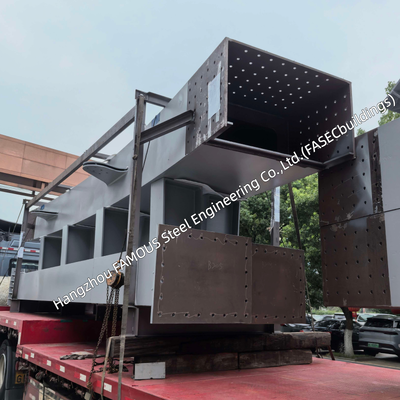

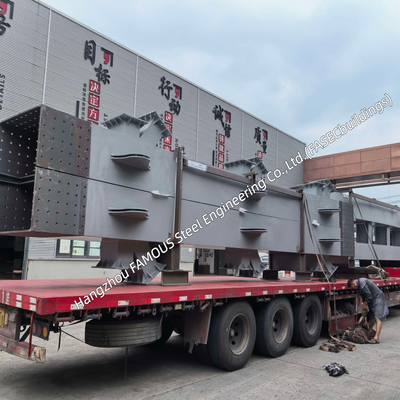

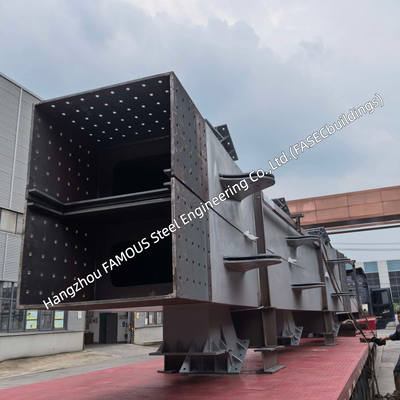

Cost-Effective Steel Box Girder Bridge – AASHTO LRFD Compliant, Long-Span for Highway & Railway

This economical steel box girder bridge is a prefabricated enclosed steel superstructure, crafted to maximize span performance while cutting overall project costs. The trapezoidal box section with inclined webs features strong inherent torsional rigidity, which removes the complicated lateral bracing essential for ordinary I-beam bridges. It effectively lowers steel consumption, simplifies production and slashes total expenditure.

Suitable for highway HL-93 load and railway Cooper E-80 load, the bridge covers single spans of 30–120m and continuous multi-spans up to 200m. Fully designed per AASHTO LRFD, it gains widespread recognition in North America and global engineering markets. Factory prefabrication paired with strict quality control guarantees long-term safety and durability without cost compromises.

AASHTO LRFD Standard Compliance

All designs strictly follow official U.S. highway bridge specifications:

1. Adopt mature LRFD load resistance design method, calculating strength, service, fatigue and extreme working conditions with factored loads to ensure stable structural reliability.
2. Meet HL-93 vehicle live load standards; railway E-80 loading is available on demand.
3. Control web slenderness ratio to avoid local steel buckling.
4. Equip fatigue-resistant details and complete Fracture Control Plan (FCP) for key tension components.
5. Excellent torsion resistance makes it ideal for curved and skew bridge schemes. Licensed engineers will provide official calculation documents, construction drawings and erection plans for each project.

Core Cost-Saving Advantages

•
• Lightweight optimized section: Trapezoidal structure boosts mechanical efficiency, cutting steel consumption by 15%–30% versus open multi-beam bridges.
• No extra lateral bracing: Built-in torsional stiffness eliminates supporting frames, saving materials and processing labor.
• Lighter superstructure: Reduced weight lessens the size of piers, abutments and foundations, lowering concrete and piling expenses.
• Fast on-site assembly: Mass factory production curtails site construction time, easing traffic interruption and field labor costs.
• Optional weathering steel: ASTM A709 Grade 50W avoids repeated painting work for long-term maintenance savings.

Span Performance

• Highway single span: 30–80m, max 120m
• Railway single span: 30–60m, max 90m
• Continuous multi-span: single span 40–100m, total length up to 200m
• Curved bridge: 30–70m, max 100m

Span-depth ratio ranges from 1:18 to 1:25 for sleek appearance and solid bearing capacity. Spans over 80m adopt variable-depth haunched girders for rational stress distribution. Top flanges are fitted with shear studs to form composite concrete decks and further raise bearing capacity. Segments are connected via bolted or welded splices for convenient transportation and continuous span assembly.

Material Parameters

Factory Prefabrication Process

All components are fully manufactured in our ISO certified workshop under stable production conditions:

1. CNC precision cutting: Plasma & flame cutting ensures precise dimension and welding edge treatment.
2. Automatic SAW welding: Double-sided submerged arc welding for flange-web joints, stable penetration and little deformation.
3. Modular pre-assembly: Diaphragms and stiffeners are prefabricated first before overall box closure.
4. Dry trial assembly: Segments are matched indoors to check splicing accuracy and avoid field assembly errors.
5. Standard anti-rust treatment: Blasting up to Sa 2.5 grade, then primer and topcoat spraying.
6. Clear segment marking for orderly hoisting and erection.

Welding & Quality Inspection

Welding construction complies fully with AWS D1.5 Bridge Welding Code:

• All welders hold valid AWS D1.5 professional certificates; WPS & PQR documents are formally approved.
• Low-hydrogen welding materials are used; preheating and interpass temperature are strictly recorded to prevent cracking.
• Full quality inspection: 100% visual check; UT ultrasonic testing for full penetration butt welds; MT magnetic particle testing for fillet welds.

Certification & Quality Assurance

• ISO 9001:2015 whole-process quality management system certified
• Design fully compliant with AASHTO LRFD, welding executed per AWS D1.5
• Complete steel mill test certificates & full material batch traceability
• NDT testing operated by certified Level II/III inspectors
• Third-party inspection (SGS/BV/TÜV) is acceptable upon client requests
• Complete delivery file package: material reports, welding documents, NDT records, coating data and as-built drawings

Conclusion

This economical steel box girder bridge balances outstanding structural performance and favorable cost, with the enclosed design cutting steel dosage, auxiliary structures and foundation costs. It achieves long-span construction while meeting strict AASHTO LRFD standards.

Products are designed and manufactured by Hangzhou FAMOUS Steel Engineering Co., Ltd. (FASECbuildings), a professional heavy steel bridge manufacturer headquartered in China. We serve North America, Europe, Southeast Asia and the Middle East with stable production capacity, strict quality control, competitive prices and punctual delivery.

Let's build smarter infrastructure – together. Contact us for technical consultation, budget quotation and customized solutions matched with your span, load and site conditions.
