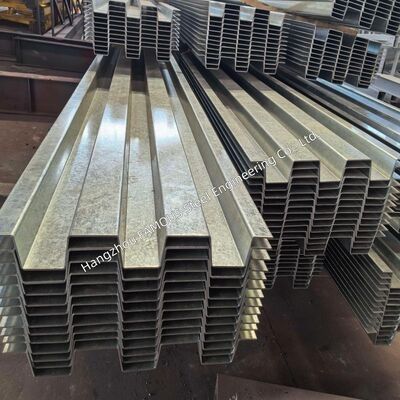

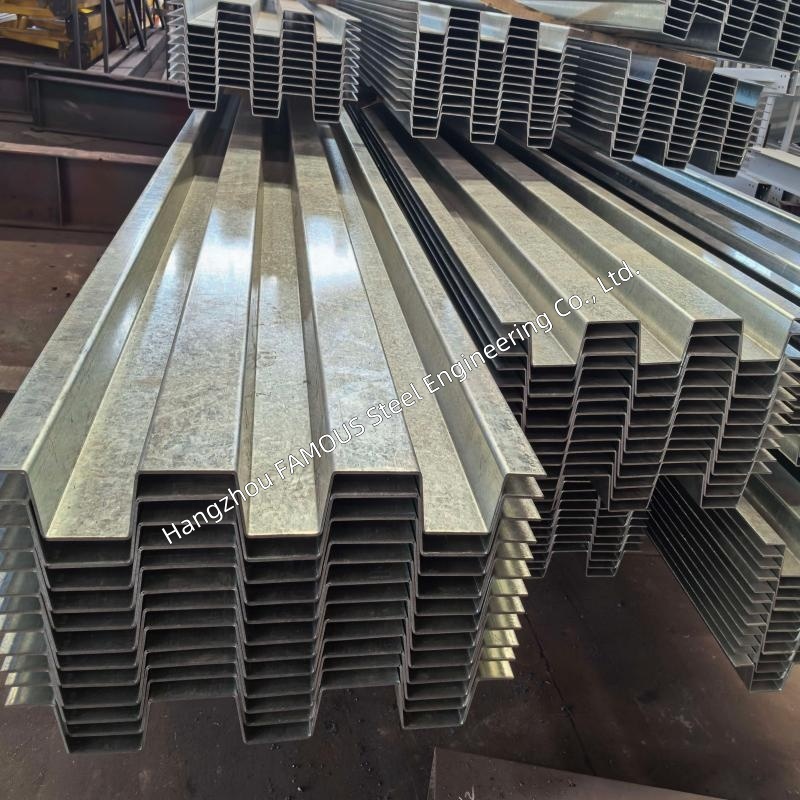

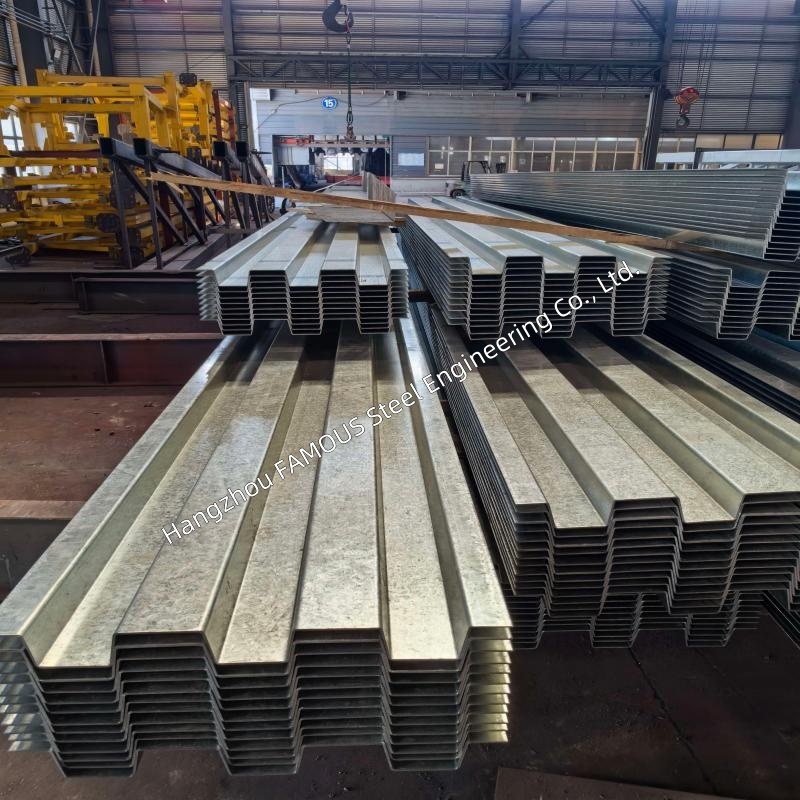

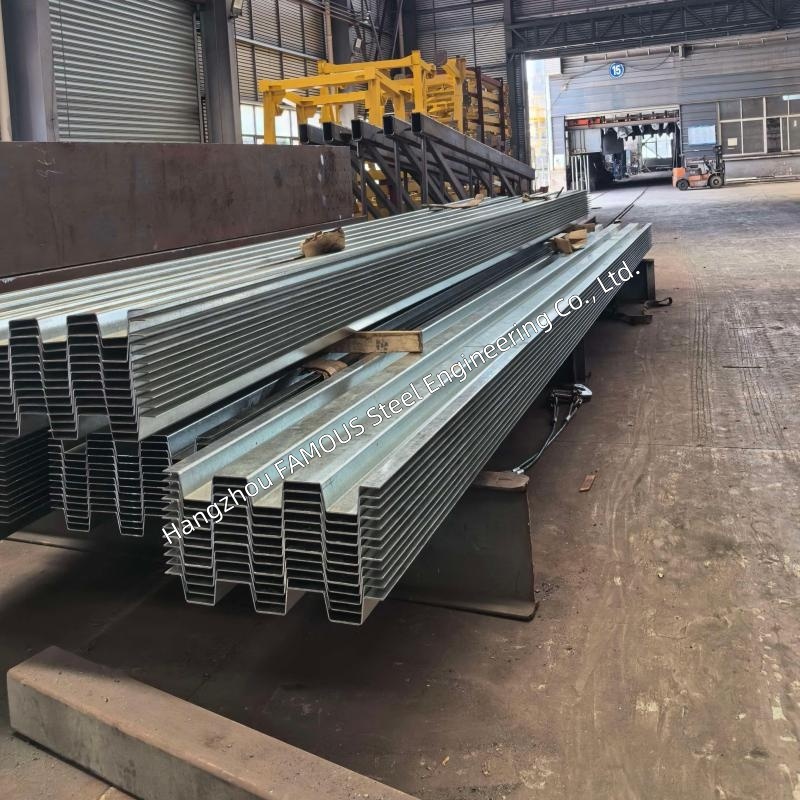

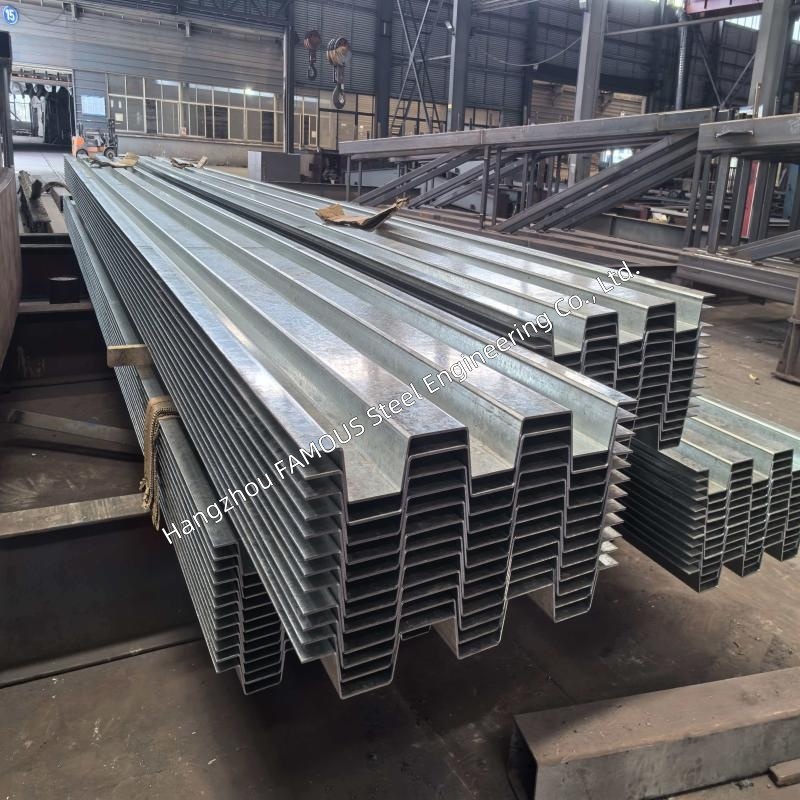

Factory Direct Galvanized Steel Bridge Deck Panels (Comflor Profile Equivalent)

  • Factory Direct Galvanized Steel Bridge Deck Panels (Comflor Profile Equivalent)
  • Factory Direct Galvanized Steel Bridge Deck Panels (Comflor Profile Equivalent)
  • Factory Direct Galvanized Steel Bridge Deck Panels (Comflor Profile Equivalent)
  • Factory Direct Galvanized Steel Bridge Deck Panels (Comflor Profile Equivalent)
Place of Origin China
Brand Name FASEC
Certification ISO 9001; CE; AS/NZS 1397; ASTM A653; MTCs
Model Number Composite Floor Deck
Minimum Order Quantity 1000 MT
Price USD 12-20/SQM
Packaging Details Sea Freight (Container/Bulk Vessel)
Delivery Time 10-30 Days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 2,000 – 5,000 MT/month
Product Details
Product Type Galvanized Steel Bridge Deck Panels Base Material High-tensile Steel
Surface Coating Z275 Standard; Z450 / Z600 Optional Core Function Permanent Formwork & Tensile Reinforcement
Applications Steel-bridge Constructions, Viaducts, Heavy-duty Industrial Platforms Customization Customized To Project Load And Span Requirements
Leave a Message
Product Description

Our Factory Direct Galvanized Steel Bridge Deck Panels act as main structural floor members for steel bridges, viaducts and heavy‑duty industrial platforms. Featuring precise Comflor profile equivalent, these cold‑formed steel sheets achieve excellent strength‑to‑weight ratio and reliable load distribution. As a pure‑steel product, items are produced in‑house to secure tight dimensional tolerance, stable structural performance and cost advantages by cutting intermediaries. Fully hot‑dip galvanized, panels are anti‑corrosion and ready‑to‑install for tough civil & industrial projects.


Material Specifications & Mechanical Properties​

High‑grade structural steel is adopted to resist heavy static and dynamic loads, fully tested against international standards.


Parameter Specification / Range
Steel Grade SS400, S355JR, ASTM A572 Gr.50
Material Thickness 1.2mm‑3.0mm (project‑specific custom)
Zinc Coating Thickness ≥275g/m²(Z275), max 600g/m² for heavy‑duty corrosion protection
Rib Height 50mm‑150mm (matches Comflor Profile)
Yield Strength ≥355 MPa
Standard Length Max 12m, custom cut‑to‑length available


40



Profile & Structural Performance​

The ribbed trapezoidal geometry maximizes rigidity while lowering self‑weight. With Comflor‑equivalent cross‑section, panels can be bolted or welded onto main bridge girders conveniently. Optimized profile improves load‑bearing capacity, evenly dispersing wheel load and dynamic stress over the whole structure.


Anti‑Corrosion & Long Service Life​​

Every piece goes through strict hot‑dip galvanizing treatment. The solid metallic zinc barrier protects steel against oxidation, dampness and chemical erosion. Standard Z275 coating extends service cycle and lowers later‑stage maintenance expenditure, well‑suited for outdoor bridge structures and harsh industrial sites.


Factory‑Direct Quality Control​​

Full‑process in‑house quality control covers steel coil slitting, cold forming, galvanizing and final profiling. We supply complete mill test certificates and dimensional inspection reports for each batch. Our factory‑direct supply brings short lead time, flexible customization and competitive bulk pricing for small‑size jobs and large infrastructure contracts alike.


44


Get Your Quotation​​

We provide free technical consultation, official factory test documents and custom profile service to match your structural demands. Our engineering team supports load assessment and installation guidance. Bulk orders enjoy factory‑direct rates and stable worldwide delivery.

Please send your engineering drawings, dimension and coating requirements for professional quotation and delivery arrangement.
