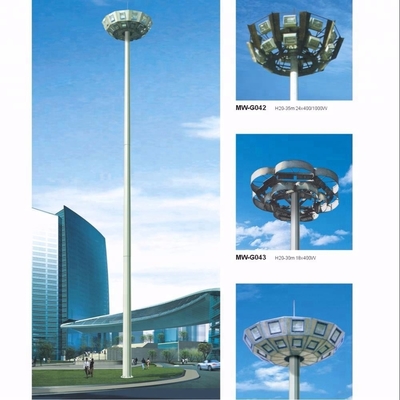

9 Mtr 6m 8 Meter High Mast Steel Street Light Pole Structure Tower LED Flood Lighting
Place of Origin | China |
---|---|
Brand Name | FASEC |
Certification | ISO9001:2008;CE; 3C |
Model Number | Metal light poles |
Minimum Order Quantity | 30 pieces |
Price | USD150-USD600 /piece |
Packaging Details | In bundles, all seaworthy packaging and transportation |
Delivery Time | 30 workdays |
Payment Terms | L/C, T/T |
Supply Ability | 50000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Steel | Grade | Q235,Q345,S235,S355 ,SS400 Etc |
---|---|---|---|
Type | Lighting Poles | Product Name | High Mast Poles |
Height | 10-40 Meters | Surface Treatment | Hot-dip Galvanizing Antirust/powder Coating |
MOQ | 30 Pieces | Turnaround Time | 30 Days |
High Light | 8 meter street light pole,6m light pole,street light pole 9 mtr |
9 Mtr 6m 8 Meter High Mast Steel Street Light Pole Structure Tower LED Flood Lighting
High-mast lighting is a tall pole with lighting attached to the top pointing towards the ground, usually but not always used to light a highway or recreational field. It is used at sites that require lighting over a large area. The pole that the lighting is mounted on is generally at least 30 m (98 ft) tall (under this height it is referred to as conventional lighting system),while the lighting consists of a luminaire ring surrounding the pole with one or several independent lighting fixtures mounted around it. Most units have four, six or eight lights in the ring, with three, five, ten, twelve and sixteen lights used in rarer instances. While most high-mast lights are high-pressure sodium, other types such as mercury vapor, metal halide and LED, have also been used. Some units have the lighting surrounded by a circular shield to prevent or reduce light pollution or light trespass from affecting neighborhoods adjacent to the highway. Maintenance of these systems is done by lowering the luminaire ring from the mast head to the base using a winch and motor to the ground or at a height accessible by a cherry picker and located in areas to allow for easier access without disrupting traffic.
For material we recommend powder coated galvanized steel poles, these super durable poles are rated for outdoor wet locations. Steel is usually the least expensive and highest strength material for a pole of a given diameter and wall thickness. Steel lighting poles is an excellent choice for projects located in high wind areas and areas that need to withstand large and/or heavy loads and these poles can survive heavy human traffic.
TECHNICAL SPECIFICATIONS
Material
|
Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2 Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
||
Shape
|
Conoid ,Multi-pyramidal, Columniform , polygonal or conical
|
||
Application
|
Airport ,seaport, plaza, stadium ,square
|
||
Joint of Poles
|
Insert mode, inner flange mode ,face to face joint mode
|
||
Design of pole
|
Against earthquake of 8 grade
|
||
Surface treatment
|
Hot dip galvanized ASTM A 123, powder coating or as per client's request.
|
||
Length of per section
|
Within 14m once forming without slip joint
|
||
Welding
|
Welding Standard :AWS (American Welding Society ) D 1.1
|
||
Tolerance | +- 2% | ||
Optical assembly of lighting fixture | IP 65 | ||
Electroshock resistant protective grade | Class Ⅱ | ||
Working atmosphere of lighting fixture | -35 ~+45 °C | ||
Wind Speed | 160 Km/Hour |
We are a professional manufacturer of custom Steel Structural Supports for Luminaires,Traffic Signs and Signals. Products include but not limited to lighting poles,utility poles, traffic signal poles, telecom towers, roadway sign post and overhead span structures, steel bridges and allied accessories, in assortment of steel grades and production standards. Factory-direct prices for quality products, professional service and on-time delivery, satisfaction and value ensured.
WHY US?
• CAD design engineering service - senior engineer team ready to create tailored solutions to fit both your project and budget.
• Longer product service life - study construction, corrosion resistant finishing and strict quality management.
• Proven performance - serviced lots of Urban Municipal Projects.
• Quick shipment - factory ownership, good control of production schedule.
If you have interest, please contact us for a quote.
Email: Eva@hfsteelstructure.com
Phone: +86-571-87688170;
Whatsapp: +86-18072803246
