Concrete Gi Stainless Steel Street Light Pole Commercial Heavy Duty Round Tapered Metal
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO9001:2008;CE; 3C |
| Model Number | Metal light poles |
| Minimum Order Quantity | 30 pieces |
| Price | USD80-USD300 /piece |
| Packaging Details | In bundles, all seaworthy packaging and transportation |
| Delivery Time | 30 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Grade | Q235,Q345,S235,S355 ,SS400 Etc |
|---|---|---|---|
| Type | Lighting Poles | Product Name | Solar Street Light Poles |
| Height | 3-15 Meters | Surface Treatment | Hot-dip Galvanizing Antirust/powder Coating |
| MOQ | 30 Pieces | Turnaround Time | 30 Days |
| High Light | street light gi pole,concrete street light pole,metal street light pole |
||
Product Description

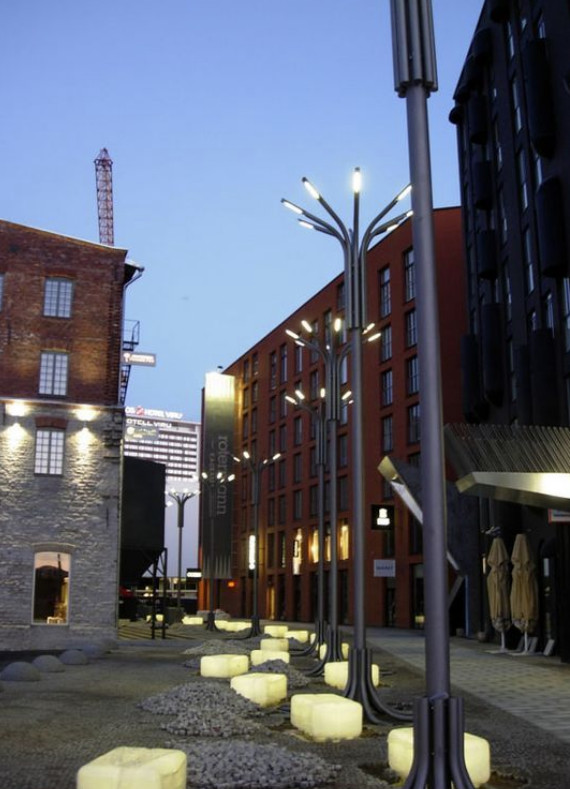

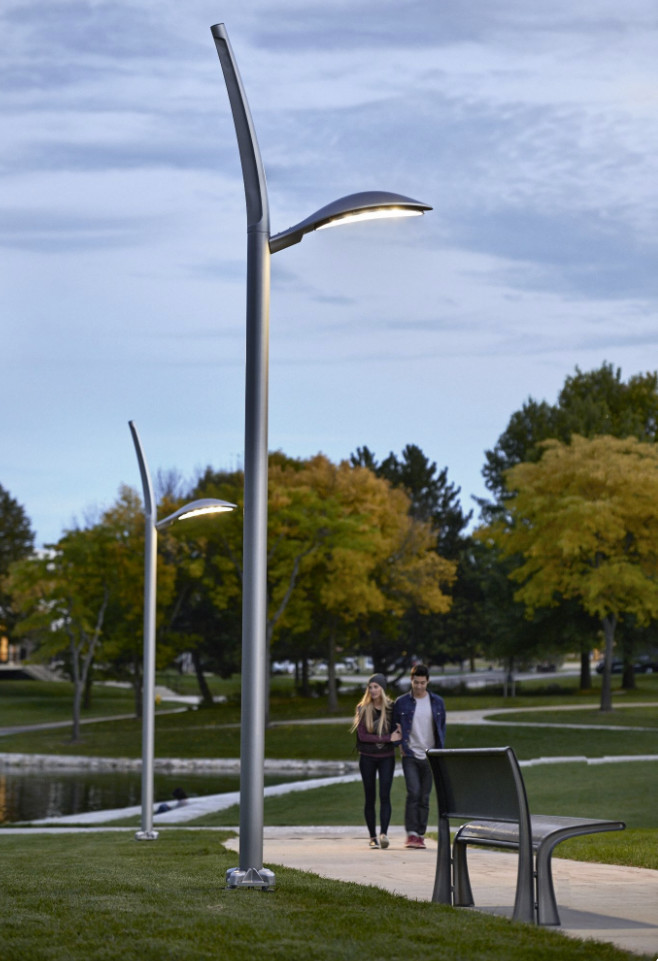

Decorative lighting pole is a perfect accent for all your lighting needs, these stylish and functional light poles will brighten up any garden or villa. The sturdy and easy to assemble poles are available in a wide variety of styles, height, material and standards, with a full range of finishing options to meet your requirements.
TECHNICAL SPECIFICATIONS
| Material: | Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
| Yield strength of Material: |
Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 |
| Pole’s height: | 3m –15m |
| Length of one part | Within 16m once forming without slip joint |
| Wall thickness: | 2.3mm-30mm |
| Pole's Shape Can be made: |
Round, Polygonal, Taper Octagonal, Taper round, Round conical, Taper Square, Square. |
| Arm type can be made: | Single arm, Double arm, Tri-arm, Four-arm |
| Arm Diameter: |
Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps. |
| Power: | 250W to 400W |
| Welding |
Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB and AWS D 1.1 |
| Galvanization: |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985. |
| Manufactury Capacity Per Day: | 250 |
|
Wall thickness Tolerance:
|
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
| Painting color: | (RAL)Color card or Refer to client’s requirement |
| Surface treatment 1: | Black pole, Rough pole |
| Surface treatment 2: | Hot dip Galvanizing antirust. |
| Surface treatment 3: | Hot dip galvanizing with powder coating |
| Temperature range | -35 °C~+45 °C |
| Wind Speed: |
Aganist wind pressure of 120Km/h to 180Km/h, it according to client’s need. |
| Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted: | The length buried underground as per customer’s requirement. |
| Quality Control | ISO9001-2008 |
| Certificates | ISO9001-2008, SGS Audited Supplier |
| Other benefits | Less land occupation & easy maintenance. |
ABOUT US
We are a professional manufacturer of custom Steel Structural Supports for Signs, Luminaires, and Traffic Signals. Products include but not limited to lighting poles,utility poles, traffic signal poles, telecom towers, roadway sign post and overhead span structures, steel bridges and allied accessories, in assortment of steel grades and production standards. Factory-direct prices for quality products, professional service and on-time delivery, satisfaction and value ensured.
WHY US?
• CAD design engineering service - senior engineer team ready to create tailored solutions to fit both your project and budget.
• Longer product service life - study construction, corrosion resistant finishing and strict quality management.
• Proven performance - serviced lots of Urban Municipal Projects.
• Quick shipment - factory ownership, good control of production schedule.
If you have interest, please contact us for a quote.
