Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork

  • Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
  • Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
  • Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork
Place of Origin China
Brand Name FASEC
Certification IS09000
Model Number FB05
Minimum Order Quantity 100 PCS
Price USD5~500 PER PC
Packaging Details standard seaworthy package
Delivery Time 15 working days
Payment Terms L/C, , T/T,, Western Union
Supply Ability 50,000 PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Scaffolding Shoring ICFs Bracing MaterialGrade Q235 Q345 & Q355B Steel
Surface Treatment Hot Dip Galvanized And Painted After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support
Performance Safety, Convenient, Install Easily Etc.
High Light

scaffolding shoring jacks ICFs FB05

,

FB05 scaffoldings shoring jacks ICFs

,

scaffoldings shoring jacks ICFs FB05
Leave a Message
Product Description

Product name:ICF wall construction Steel Bracing
Type:modular building
Material:steel
Application:House Building
Function:Energy-saving
surface treatment:Hot dip galvanized

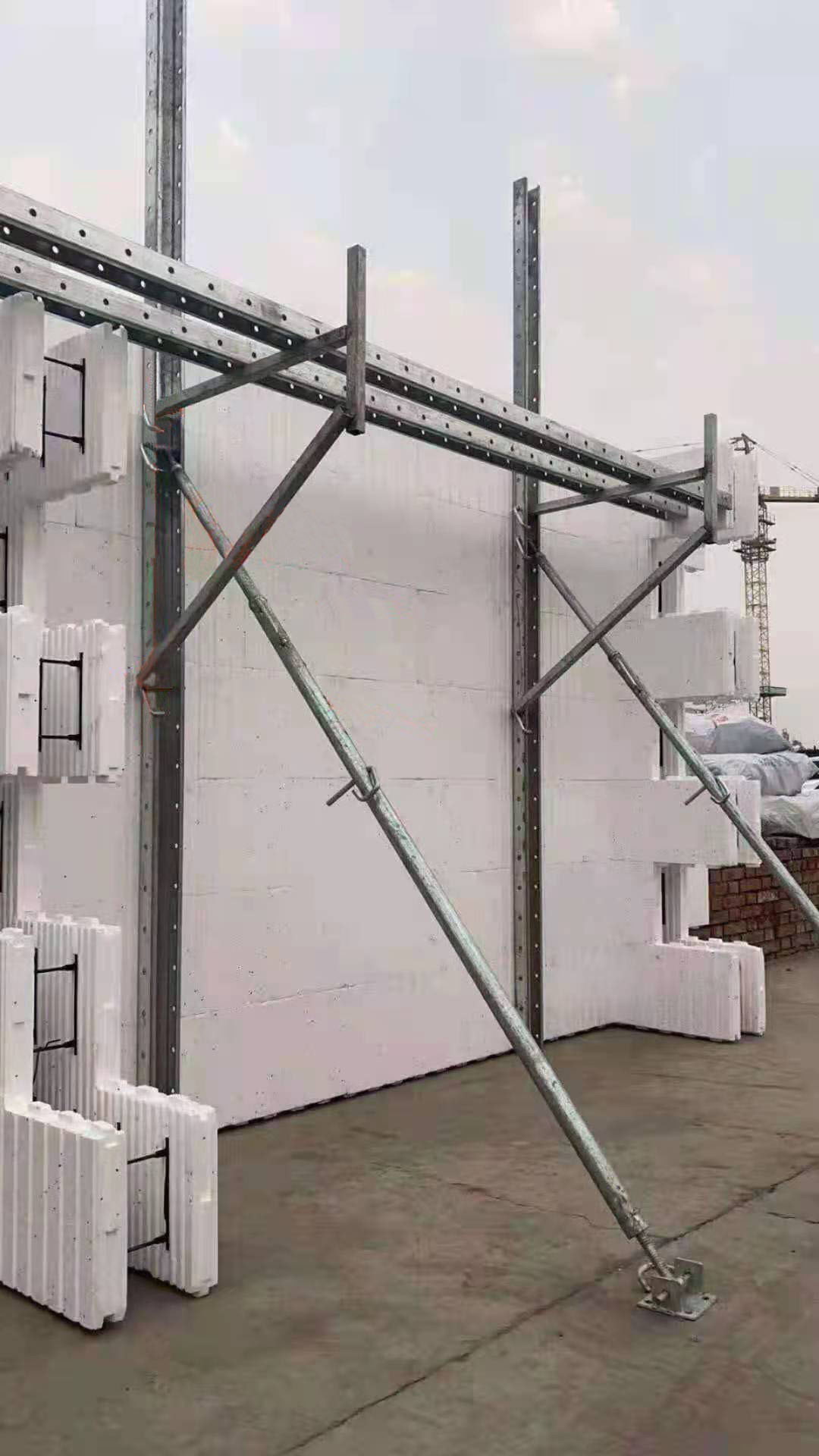

ICF bracing system:

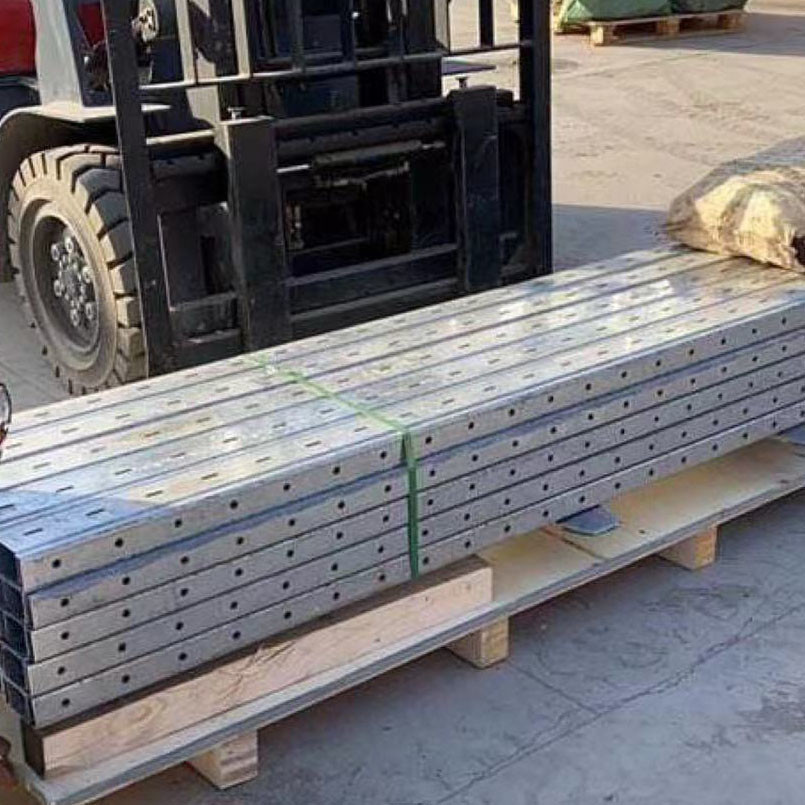

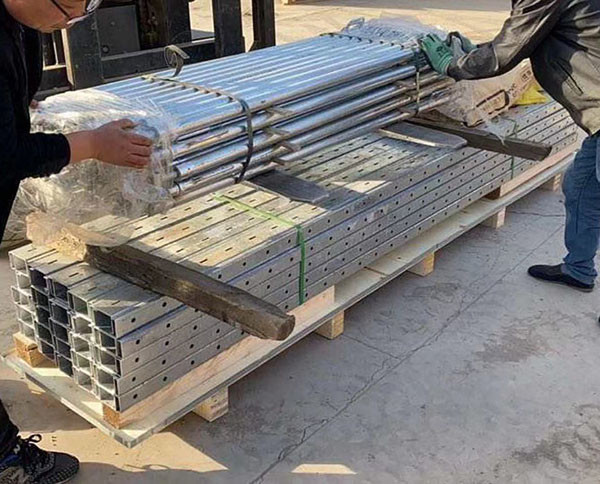

U channel length :2700 mm,width:135 mm,both side height:60 mm,wall thickness: 3 mm,welded a plate with 16mm hole at bottom end
Support foot :Φ 38 mm,length1500 mm+Φ32mm,1500mm length,wall thickness :2 mm(total 3000mm length)
Triangle bracket: 40 mm x 40 mm,wall thickness :2 mm
Guardrail post:40*40* L:1100 mm * wall thickness 2 mm
Self-locking Pins:3pcs
Expansion bolts:3PCS
Reinforce bolts:2pcs



Product name Telescopic Construction Building Formwork Scaffolding Shoring ICFs Bracing
Material Q235 Steel
Application Building Construction
Surface treatment Dip paint, Pre Galvanized, Hot dip galvanized
Color Customized
Product Keywords scaffolding prop,adjustable steel prop scaffolding,formwork props scaffold



Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork 0



Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork 1

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork 2

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork 3

Adjustable Scaffolding Shoring Jack ICFs Bracing Telescopic Construction Building Formwork 4
