Four Chord Overhead Sign Structures Bridge Galvanised Steel Lamp Posts 3m
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO9001:2008; EN |
| Model Number | Metal poles |
| Minimum Order Quantity | 10 pieces |
| Price | USD400-USD3000 /piece |
| Packaging Details | In bundles, all seaworthy packaging and transportation |
| Delivery Time | 30 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Grade | Q235,Q345,S235,S355 ,SS400 Etc |
|---|---|---|---|
| Type | Metal Poles | Product Name | Overhead Sign Structures, Full Span Sign Bridges |
| Height | 3-25 Meters | Surface Treatment | Hot-dip Galvanizing Antirust/powder Coating |
| MOQ | 10 Pieces | Turnaround Time | 30 Days |
| High Light | Four Chord Overhead Sign Structures,galvanised pole 3m,galvanised steel posts |
||
Product Description

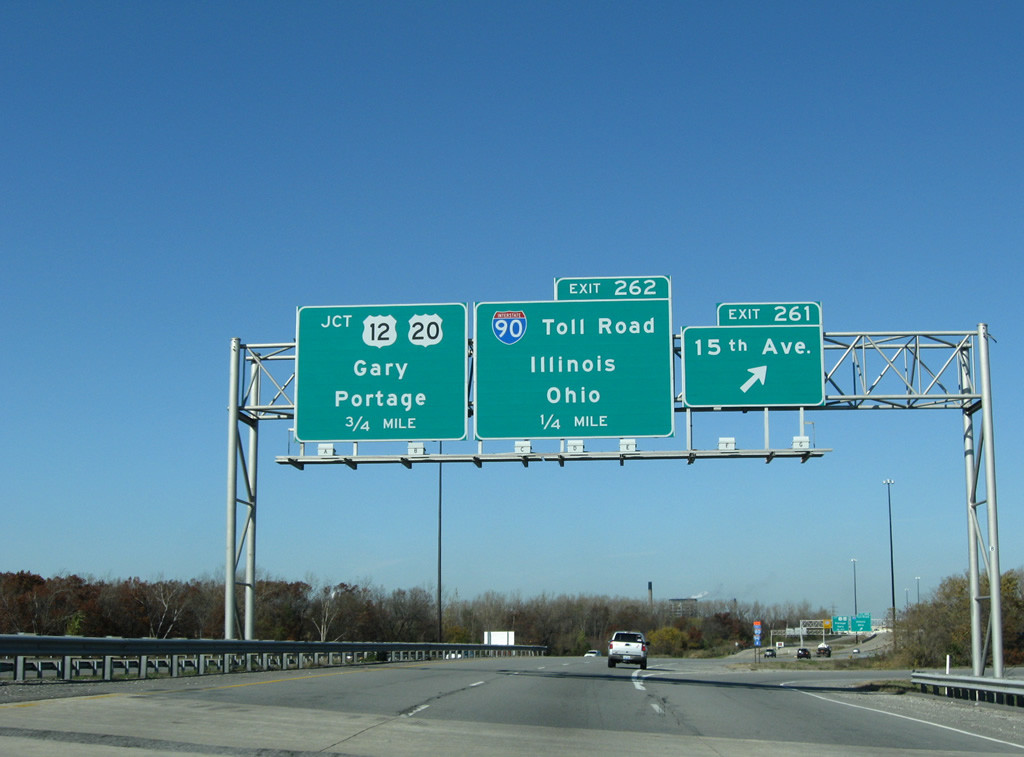

Overhead Sign Structures
There are several types of overhead sign structures:
* Full-span sign bridge (including four-chord, tri-chord, two chord and monotube configurations)
* Cantilever sign structures
* Butterfly sign bridge
* Structure-mounted sign structures

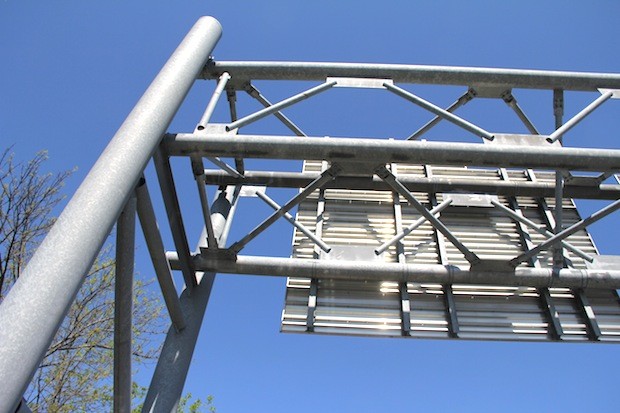

Four-Chord Overhead Sign Bridge
The standard four-chord simple-span sign bridge consists of an all-welded or combination welded-bolted three-dimensional space frame of four chords. Diagonal members run along all four faces of the space frame with intermediate diagonals running between the front and back faces of the frame, alternatively. A camber is typically built into the space frame. The space frame is simply supported at each end by a single post, a two-column support frame, or a reinforced concrete column. It can be used for sign support (static panel or DMS), light signals or served as toll gantry.
Overhead sign supporting structure range from us are designed for standard and specialised signal lighting and sign applications, built to the exact specifications of your local road authority or municipalities, through various process like bending, forming, welding, hot dip galvanization and powder coating. The poles and structures can be powder coated or painted in the colour of your choice or the relevant authority’s requirements.
Specifications
| Material: | steel, Q235,Q345,S235,S355,SS400 |
| Yield strength of Material: |
Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 |
| Pole height: | 3-25m |
| Length of one part | with joint |
| Wall thickness: | 6-8mm |
| Pole's Shape Can be made: | Polygonal, Round,Octagonal, Taper round, Round conical, Taper Square, Square. |
| Galvanization: | Hot dip galvanization with thickness of 80-100µm average in accordance with European standards. |
| Painting color: | (RAL)Color card or Refer to client’s requirement |
| Surface treatment : | Rough pole, Hot dip Galvanizing antirust, Hot dip galvanizing with powder coating |
| Temperature range | -35 °C~+65 °C |
| Wind Speed: | Aganist wind pressure of 120Km/h to 180Km/h, or according to client design. |
| Base plate mounted | Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted: | The length buried underground as per customer’s requirement. |
| Quality Control | According to ISO9001-2008 requirements. |
| Certificates | ISO9001-2008, A153 Galvanize Standards EN 1461 |
ABOUT US
We are a professional and trusted manufacturer of custom Steel Structural Supports for Signs, Traffic Signals and Luminaires. Products include but not limited to traffic signal poles, traffic sign posts and gantries, CCTV monitoring poles, lighting poles, telecom tower, lattice towers, bridges and allied accessories. Industries served include transportation, utility and architectures.
WHY US?
• CAD design engineering service - senior engineer team ready to create tailored solutions to fit both your project and budget.
• Longer product service life - study construction, corrosion resistant finishing and strict quality management.
• Proven performance - serviced lots of Urban Municipal Projects.
• Quick shipment - factory ownership, good control of production schedule.
If you have interest, please contact us for a quote.
Email: Eva@hfsteelstructure.com
Phone: +86-571-87688170;
Whatsapp: +86-18072803246
