Traffic Signal Mast Arm Pole Supports Hot Dip Galvanized Steel Lighting Pole Utility 3M Q235
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO9001:2008; EN |
| Model Number | Metal poles |
| Minimum Order Quantity | 30 pieces |
| Price | USD50-USD600 /piece |
| Packaging Details | In bundles, all seaworthy packaging and transportation |
| Delivery Time | 30 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Grade | Q235,Q345,S235,S355 ,SS400 Etc |
|---|---|---|---|
| Type | Metal Poles | Product Name | Steel Traffic Signal Poles And Sign Posts |
| Height | 3-15 Meters | Surface Treatment | Hot-dip Galvanizing Antirust/powder Coating |
| MOQ | 30 Pieces | Turnaround Time | 30 Days |
| High Light | traffic signal poles,galvanized steel utility pole,mast arm traffic signal |
||
Product Description

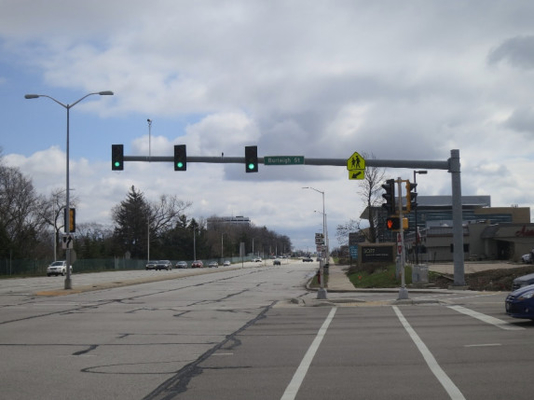

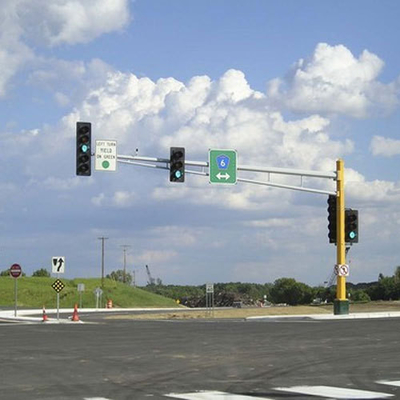

Traffic Signal Mast Arms Supports
Traffic signal mast arm supports are comprised of a single support post and a single cantilever arm. Mast arm supports are made of steel, usually galvanized, and are primarily used to carry traffic signals, small regulatory signs, street name signs and street luminaires. The post base plate is anchored to the foundation with six anchor bolts embedded in a concrete foundation. The base plates rest on leveling nuts, creating a space between the base plate and the foundation. The mast arm is connected to the support post with six bolts or eight bolts. The bolts secure the arm base plate to the post connection plate. In some instances, an arm may have an extension at the end of it to get a longer length. These extensions are spliced with an overlap slip joint.
Material
Q235,Q345,Gr65 or as per client's requirement, in compliance with EU/ASTM standards and as per the project specifications.
Finishing
Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its updated revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements,no more than 70 microns average.
No welding, cutting or drilling after galvanization.
The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.
Details
|
1. Height: from 3m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.
|
|
|
2. Pole Sections: poles with heights within 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.
|
|
|
3. Shafts: made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.
|
|
|
4. Base Plate: square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.
|
|
|
5. Brackets: carry the light fittings, in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft as shown on our drawings.
|
|
|
6. Anchor Bolt: fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.
|
|
|
7: Junction box : Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength. |
|
|
8. Lamp: LED light available or as per client's requirement.
|
ABOUT US
We are a professional and trusted manufacturer of custom Steel Structural Supports for Signs, Traffic Signals and Luminaires. Products include but not limited to traffic signal poles, traffic sign posts and gantries, CCTV monitoring poles, lighting poles, telecom tower, lattice towers, bridges and allied accessories. Industries served include transportation, utility and architectures.
WHY US?
• CAD design engineering service - senior engineer team ready to create tailored solutions to fit both your project and budget.
• Longer product service life - study construction, corrosion resistant finishing and strict quality management.
• Proven performance - serviced lots of Urban Municipal Projects.
• Quick shipment - factory ownership, good control of production schedule.
If you have interest, please contact us for a quote. We are happy to talk about our capabilities and solutions for your project.
