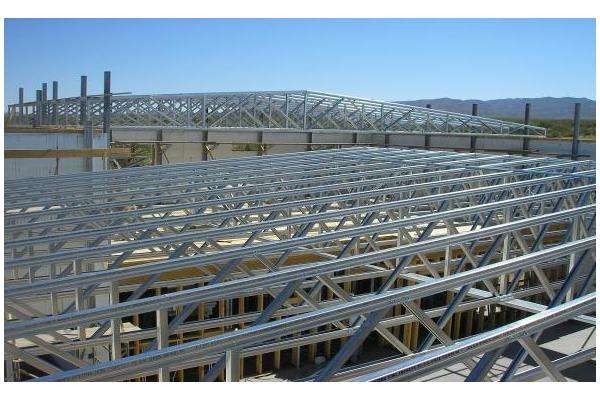

20ft 30ft 40ft 50ft Heavy Duty Galvanised Steel Roof Truss Fabrication Warehouse Building
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | CE, ISO, SGS |
| Model Number | HZFS |
| Minimum Order Quantity | 20 tons |
| Price | USD1000-2600/ton |
| Packaging Details | Seaworthy packing in container or bulk vessel |
| Delivery Time | As per client's needs like 2-3 months |
| Payment Terms | L/C, T/T, D/A, D/P |
| Supply Ability | 100000 tons per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Grade | Q235B, Q345B |
|---|---|---|---|
| Type | Heavy | Width | 500mm-2200mm |
| Length | 3000-12000mm | Surface Treatment | Galvanized Or Painted |
| Color | Customized Color | Application | Construction |
| High Light | 20 foot steel trusses,heavy duty steel trusses,galvanised steel roof trusses |
||
Product Description
Modern Prefabricated Industrial Heavy Steel Truss Structural Building
A steel truss refers to a truss made of steel. In the roof structures, crane beams, bridges and hydraulic gates of industrial and civil buildings, steel trusses are often used as the main load-bearing components. All kinds of towers, such as mast towers, TV towers and transmission line towers, are commonly used space steel trusses composed of three-sided, four-sided or multi-sided planar trusses.
Ordinary steel trusses generally use a single-web member, usually a T-shaped section composed of two angle steels, and sometimes cross-shaped, grooved or tubular sections are used, and a gusset plate is used to connect the nodes. The structure is simple and the application is the most. wide. Heavy-duty steel truss members are made of I-shaped or box-shaped sections composed of steel plates or section steel, and two parallel gusset plates are connected at the nodes; they are often used for steel trusses with large spans and loads, such as bridges and long-span roof structures. The light steel truss is composed of small angle steel and round steel or thin-walled steel; the nodes can be connected by gusset plates, or the rods can be directly connected; it is mainly used for the roof structure of light roof with small span.
Connection method:
Steel trusses can be welded, common bolted, high-strength bolted or riveted. Welding is the most widely used; ordinary bolted connections are often used for detachable structures, transmission towers and support systems; high-strength bolted connections are often used for site connections of heavy steel trusses; riveting is used for heavy steel trusses subjected to large dynamic loads. Replaced by high-strength bolted connections.
Specification:
| Item Name | Seismic Performance Heavy Steel Grid Structure Fabrication for Large Venue Roof Structure |
| Main Steel | Steel structure--Q345b/Q355b, special high tension plate, etc. can be customized according to customer's requirements. |
| Surface | Hot Dip Galvanized, or according to customer's requirements. |
| Connection method | welding connection or bolt connection, etc. |
| Column and Beam | Welded H section, Hot Rolled Section Steel, grid column, pipe&tube column,etc. |
| Service |
Design, Detailing, Fabrication and Installation We also can process/fabricate according to client's sample or drawings.) |
| Making quotation according to customer's drawing or as per customer's dimension and requirement; Offering a free preliminary design drawing(formal complete design need to be paid [high-quality, low-cost] ). |
|
| Packing | We possess the unique most professional and best packaging in China presently - framing package, which perfectly protects the structural steel members from any impact damage during the transport. Or according to customer's requirement. |
| Load into 40/20GP, 40HQ, 40OT or Bulk carrier |
Application:

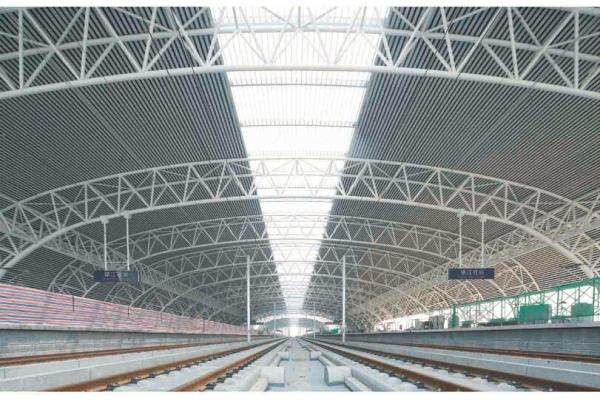

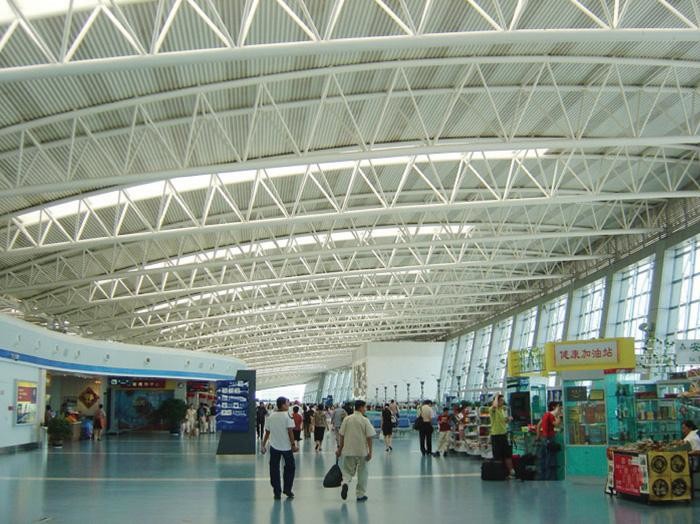

Trusses are widely used in steel structures, such as roofs (roof trusses, etc.) and crane beams (ie crane trusses) of industrial and civil buildings, bridges, cranes (its towers, beams or booms, etc.), hydraulic gates, In offshore oil production platforms, steel trusses are often used as the main components of load-bearing structures. Various types of steel grids, which are widely used in the roof structure of large-span public buildings, belong to space steel trusses. Various types of towers, such as TV, power transmission, drilling, crane towers and mast towers, often use space steel trusses composed of three-sided, four-sided or multi-sided planar trusses.
