AS 5100 Standard Single Span Pedestrian Overpass Bridge Connecting People with Community in Australia

Product introduction

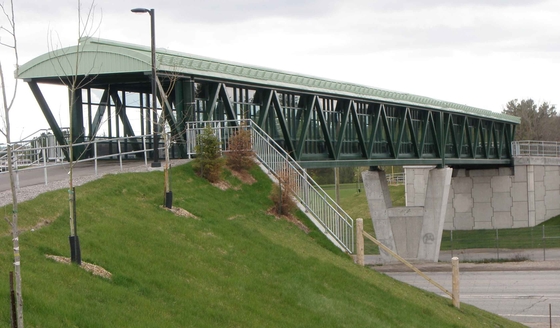

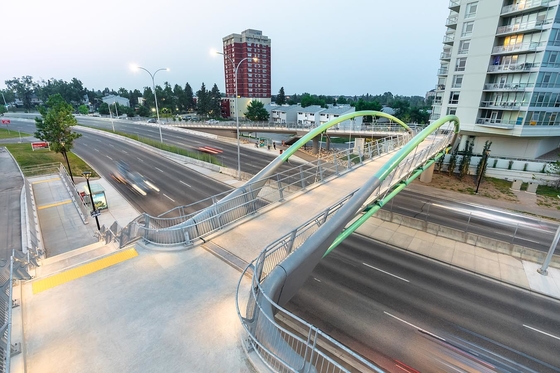

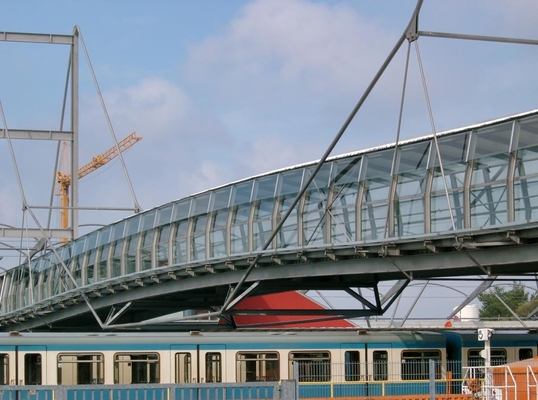

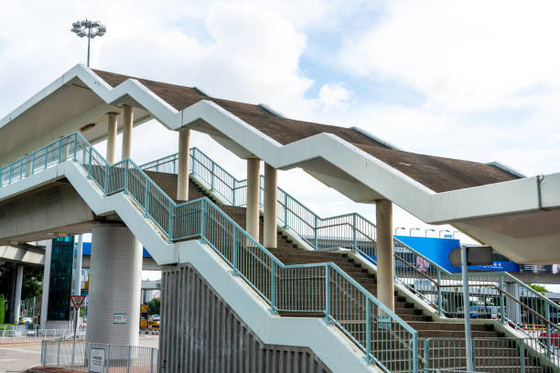

Pedestrian Overpass Bridge is also known as pedestrian over-crossing. Generally built in the traffic flow, pedestrian dense lot, or intersection, square and railway above. The pedestrian bridge only allows pedestrians to pass through, to avoid the conflict when the traffic flow and the flow of people plane intersection, to ensure the safety of people crossing, improve the speed, reduce traffic accidents.

There has been increasing awareness in recent years of the importance of infrastructure for pedestrians . These additions to the urban environment improve the quality of cities by connecting spaces and shortening travel distances, and their introduction can be beneficial not only to pedestrians but also to cyclists seeking a more environmentally friendly method of transport.

In order to encourage the use of pedestrian infrastructure, here we present footbridges designed by architecture offices and structural engineers, alongside their construction details, to showcase innovative solutions in terms of materials, forms, and structures.

Product Description

Ⅰ. Material grade
1.Carbon structural steel: Q235.
2.High-strength structural steel :Q345
3.Special purpose steel t

ⅡQuality standard
1.Certificate: ISO9001:2000
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)

Ⅲ. Structure Assembly
1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per
request
4.Doors: Rolling or Pushing, as request

Specification

Our company:

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.

Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.

From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.

Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
