Fabrication Members Steel Deck Of Cold Formed Steel Structural 980mm

North American Standard Design and Fabrication of Cold Formed Steel Structural Members Steel Deck

Quick detail:

1. easy-installed, cost-saving, convenient transportation

2. Light-weight, excellent load capacities, high strength.

3. Fireproof, erosion-resistant, waterproof

4. Long life span, maintenance free, beautiful appearance

Steel deck is a cold formed corrugated steel sheet supported by steel joists or beams. It is used to support concrete or insulating membrane of a roof. It was developed to provide a structurally efficient product for use in roof and floor systems.

Its design and fabrication maximizes the properties of the steel in order to create a high strength-to-weight ratio, which lowers the material, handling, and erection costs but maintains the durability that has been proven by over 50 years of satisfactory performance.

Despite the fact that it is a structural component, its uniform quality can offer an attractive appearance, especially with the use of properly specified shop and field applied coatings.

Specification:

Characteristics:

1. There are processed slots between the corrugations of the profiled steel plates, available for engineering use like electric power and communications.

2. The dead load of the entire structure is reduced, saving the basic cost of the lower part.

3. During construction, the profiled steel plate can enhance the lateral stability of the supporting steel beam.

4. It gives full play to the mechanical properties of two materials - steel and concrete.

5. It does not require form work, getting rid of the removal and installation of form-works.

6. The profiled steel plate is equal to tensile main rib based on calculation, only moisture reinforcements are needed.

7. The profiled steel plates provide an even ceiling surface for concrete buildings.

8. After installation, the profiled steel plate can be used as a safety work platform for workers, tools, materials andequipment.

9. Low Cost.

Advantages:

1.Adapt rapid construction requirements of the main steel structure, provide fast work procedures.

2.Improve the rigidity of the floor, saving the amount of steel and concrete.

3.Surface embossed increase the bonding of floor deck and concrete, make the floor deck system has high-strength bearing capacity.

4:Our floor deck has passed the fire resistance text of the national fixed fire extinguishing system and fire-resistance component quality inspection center. As a combination of floor deck, no need the fireproof coating, so greatly reduce the project cost.

Application:

Power plant, power equipment company, car showroom, steel structure plant, cement warehouse airport terminal, railway station, stadium, concert hall, theater, supermarket, logistics center, exhibition hall, etc.

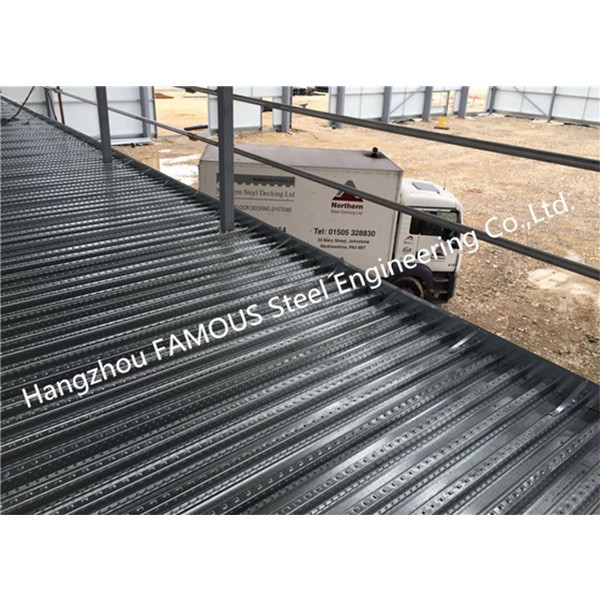

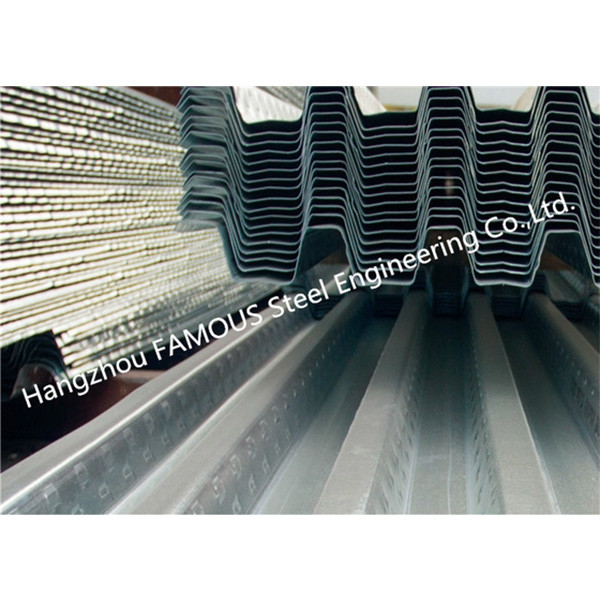

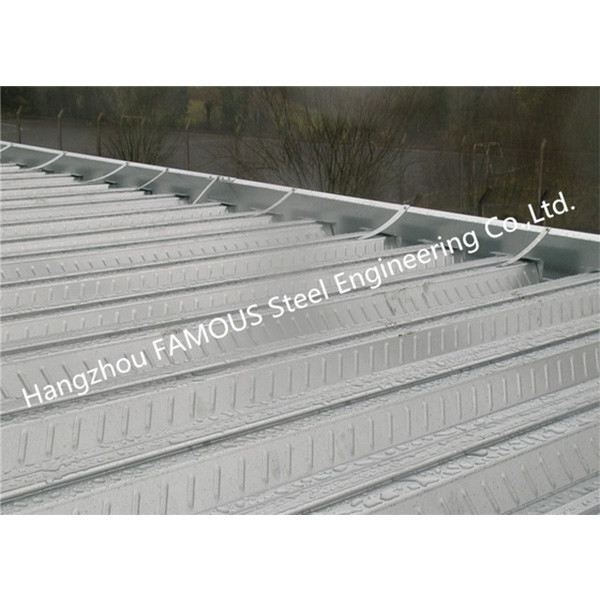

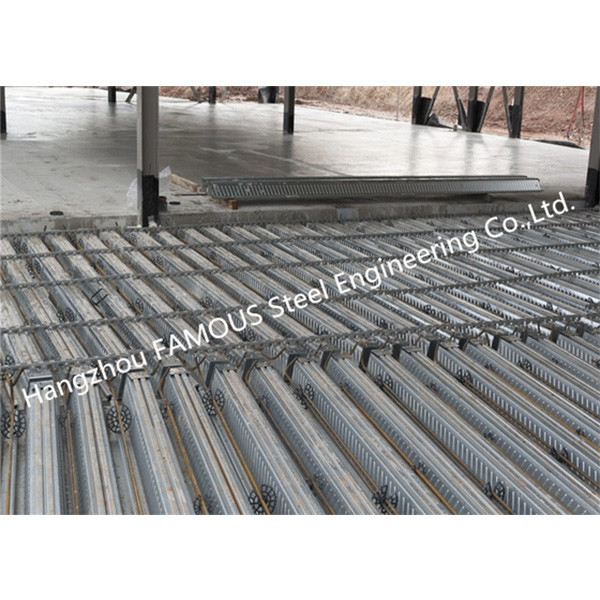

Meanwhile we can also different models of decking series. Please check bellow pictures. If you prefer any of them, please contact with me directly.
