AISC-Engineered Steel Arch Bridge – Factory-Direct & Cost-Effective
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | AISC IBR/ABR, AWS CWI, CE (EN 1090-1 FPC) |
| Model Number | Steel Arch Bridges |
| Minimum Order Quantity | 100 MT |
| Price | USD 1,000-1,500/MT |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 30-60 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5,000-15,000 MT/Year |
Product Details
| Productname | Steel Arch Bridges | Aestheticoptions | Customizable Arch Shapes And Finishes |
|---|---|---|---|
| Maintenancerequirements | Regular Inspections, Painting, And Structural Health Monitoring | Loadcapacity | Varies By Design, Typically Up To Several Thousand Tons |
| Costrange | Varies Widely, Generally High Initial Investment With Long-term Value | Environmentalimpact | Low To Moderate, Depending On Construction Methods |
| Corrosionresistance | High, With Protective Coatings Applied | Typicaluses | Roadways, Railways, Pedestrian Crossings |
Product Description
Our AISC‑Engineered Steel Arch Bridge balances world‑class structural engineering and outstanding economic value. Designed and fabricated following AISC 360 specifications, this bridge system delivers solid structural integrity and operational safety under heavy traffic and dynamic loads. As a factory‑direct & cost‑effective solution, all main arch ribs, steel decking and connection parts are produced in‑house, cutting procurement costs without quality trade‑offs. With customizable engineering, flexible arch geometries and spans can be adapted to site topography, waterway clearance and architectural requirements. This prefabricated steel crossing serves as a durable long‑term asset with low ongoing maintenance.
1. AISC‑Compliant Structural Engineering
Our steel arch bridges are developed by professional structural engineers complying with AISC 360. Main steel arch ribs and bracing systems are calculated via finite element analysis for optimized load distribution, resisting seismic activity, high wind pressure and heavy vehicle loads. Every steel member is structurally optimized to achieve high durability for urban viaducts and highway overpasses alike.
2. Factory‑Direct Cost Advantage
Our direct‑to‑customer model lets you purchase straight from our manufacturing base, removing extra margins from traders and distributors. Supported by raw‑material scale advantages and high‑efficiency CNC production lines, we pass cost savings to clients. Our cost‑effective steel bridge solution provides AISC‑qualified engineering while maximizing your infrastructure budget with uncompromised material quality.
3. Technical Specifications (Engineering Data)
All parameters are fully customizable to match project requirements:
| Specification Category | Detailed Engineering Parameters |
|---|---|
| Steel Material Grade | ASTM A572 Gr.50 / A709 Gr.50W high‑strength structural carbon steel |
| Arch Structure Type | Tied‑arch, Through‑arch, Deck‑arch for required clearance and span |
| Bridge Deck System | Orthotropic steel deck / corrugated steel bridge decking, all‑steel permanent formwork |
| Surface Coating System | Hot‑dip galvanizing Z600 for marine service; thermal spray Zn‑Al plus seal coat |
| Welding & Inspection | Full penetration welding; 100% UT & MT NDT for critical joints |
| Connection & Fastening | Grade 10.9 high‑strength friction‑grip bolts for stable field assembly |
4. Advanced Corrosion Resistance & Durability
Our premium surface protection system copes with harsh operating environments. Standard hot‑dip galvanizing (ASTM A123) builds a robust metallic barrier against moisture and oxidation. For coastal or industrial aggressive conditions, heavy‑duty thermal spraying or multi‑layer epoxy‑polyurethane paint systems are available. Professional anti‑corrosion treatment supports 50+‑year service life, lowering whole‑life‑cycle expenditure.
5. Precision Prefabrication & Fast Erection

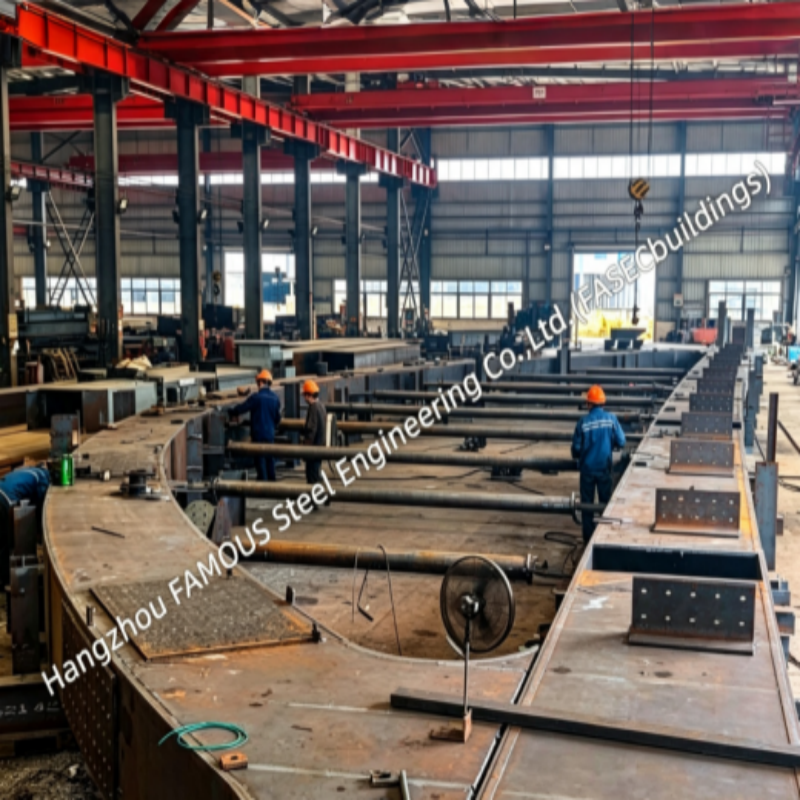

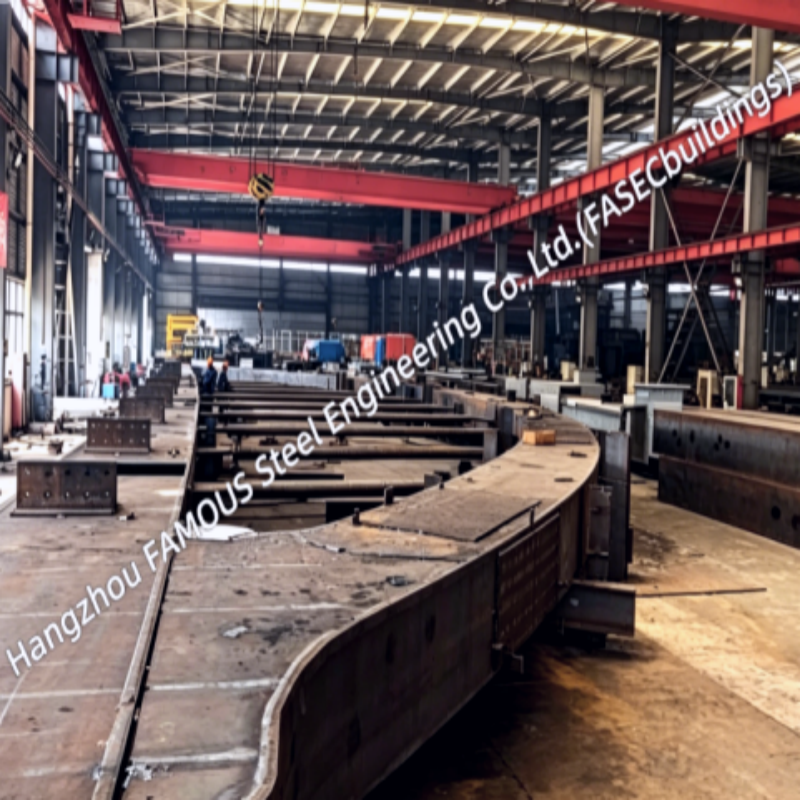

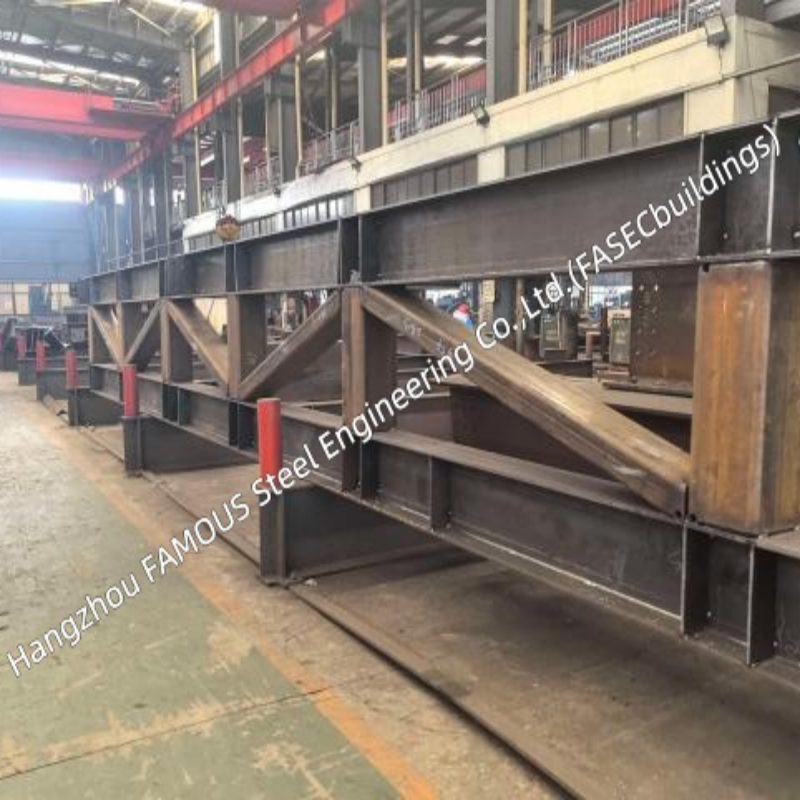

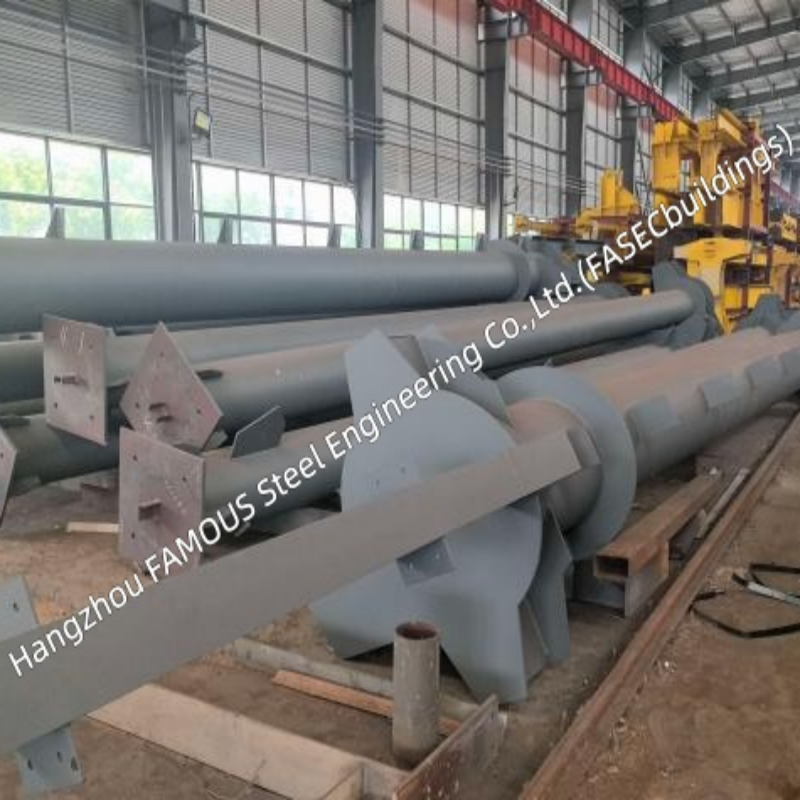

All steel components are processed by high‑precision CNC cutting, drilling and welding equipment. Major arch segments undergo factory trial pre‑assembly before shipment to avoid on‑site fitting problems. Prefabricated sections are clearly numbered, accompanied by complete erection drawings. Optional on‑site technical guidance supports your local construction team for rapid installation, shortening project timeline and labor expense.
6. Your Trusted Global Partner for Steel Bridge Infrastructure
Project success depends on reliable fabrication partners. Based in China, Hangzhou FAMOUS Steel Engineering Co., Ltd.(FASECbuildings) exports AISC‑compliant steel bridge products worldwide. We ensure transparent communication, custom engineering support and on‑time delivery covering conceptual design through final shipment.
Send over your project drawings, span data and site load requirements. Our engineering team will reply with a detailed professional quotation and tailored production schedule to realize your steel arch‑bridge project efficiently and economically. Contact us today.
