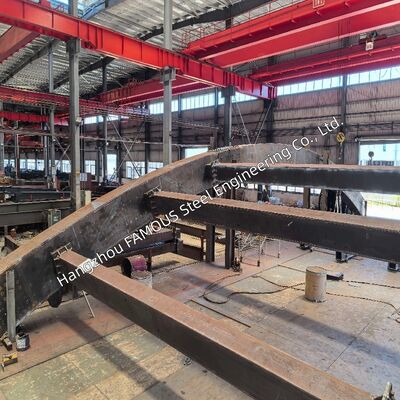

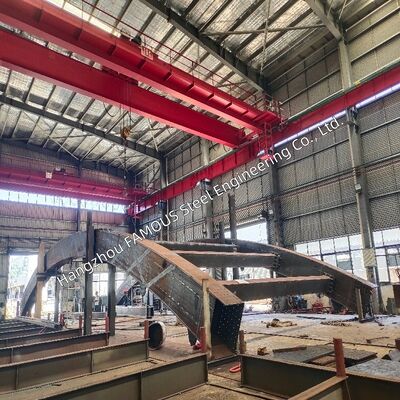

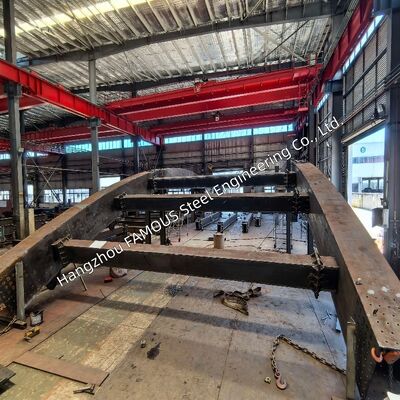

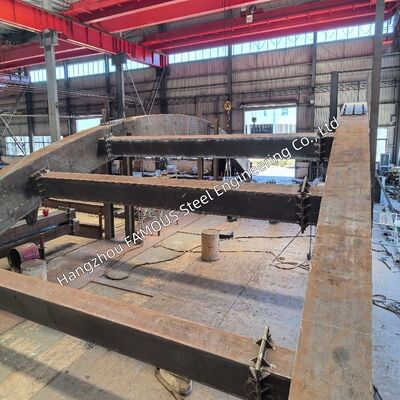

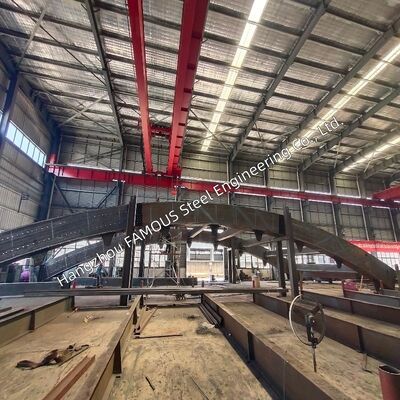

AWS D1.5 Curved Steel Arch Bridge | AASHTO LRFD & ASTM A709 US Highway Certified
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | AISC IBR/ABR, AWS CWI, CE (EN 1090-1 FPC) |
| Model Number | Steel Arch Bridges |
| Minimum Order Quantity | 100 MT |
| Price | USD 1,000-1,500/MT |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 30-60 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5,000-15,000 MT/Year |
Product Details
| Productname | Steel Arch Bridges | Aestheticoptions | Customizable Arch Shapes And Finishes |
|---|---|---|---|
| Maintenancerequirements | Regular Inspections, Painting, And Structural Health Monitoring | Loadcapacity | Varies By Design, Typically Up To Several Thousand Tons |
| Costrange | Varies Widely, Generally High Initial Investment With Long-term Value | Environmentalimpact | Low To Moderate, Depending On Construction Methods |
| Corrosionresistance | High, With Protective Coatings Applied | Typicaluses | Roadways, Railways, Pedestrian Crossings |
Product Description
Our AWS D1.5 Compliant Curved Steel Arch Bridge is a complete heavy-load long-span traffic bridge solution tailored for American standard infrastructure projects. All structural design, steel material selection, integral forming and welding construction strictly execute U.S. unified industry standards. Adopting modular workshop prefabrication mode and equipped with diversified high-strength steel options, this curved steel arch bridge delivers stable bearing capacity, long service life and full code compliance, widely adopted in urban viaducts, cross-river bridges and large landscape traffic engineering across North America.
Diversified ASTM A709 Steel Grades & Comprehensive Material Inspection Items
• Available steel grades: Grade 36, Grade 50, weather-resistant Grade 50W, high-performance HPS 50W and HPS 70W, yield strength ranges from 36 ksi to 100 ksi
• Weathering steel advantages: W-series steel forms a natural anti-rust protective patina in atmospheric environment, greatly reducing later maintenance and renovation costs
• Batch mandatory inspection: Raw material chemical composition heat analysis, tensile & yield strength mechanical test, Charpy V-notch low-temperature impact test
• Structural performance: Thickened high-strength steel main arch body adapts to heavy truck loads, ultra-long span layout and complex geological site conditions
Full-Set AWS D1.5 Certified Welding & Fracture Risk Control System
- • All main force-bearing welds of the whole arch bridge strictly abide by AASHTO/AWS D1.5M/D1.5:2025 Bridge Welding Code, recognized by U.S. DOT and professional design firms
- • Our factory holds valid AWS fabricator certification; all welding procedures and operating staff pass official qualification review and filing
- • Complete Fracture Control Plan is implemented for Fracture-Critical Members per AWS D1.5 Clause 12 to eliminate potential structural safety hazards
- • Full penetration butt welds and heavy fillet welds on main arch ribs receive 100% NDT nondestructive testing to remove internal welding defects
High-Precision Curved Arch Forming & Modular Prefabrication Merits
Supported by integrated CAD & CAM digital intelligent processing equipment, we realize precise customization of any curved arch radian with strict dimensional tolerances. The full-shop prefabrication mode brings multiple prominent advantages for global bridge construction projects:
- 1.Greatly reduce on-site welding workload and shorten overall construction erection cycle
- 2.Closed factory production avoids quality instability caused by outdoor wind, rain and temperature changes
- 3.Complete integral assembly and fitting inspection before delivery to ensure seamless splicing during field installation
- 4.Segmented separate shipment optimizes container loading plan and cuts cross-border logistics transportation expenses
Complete Quality Assurance & Standard Compliance Checklist
| Compliance Parameter | Standard / Requirement | Key Details |
|---|---|---|
| Welding Execution Standard | AASHTO/AWS D1.5M/D1.5:2025 | Exclusive bridge welding specification for carbon & low-alloy steel, covering full design and fabrication clauses |
| Structural Steel Material | ASTM A709/A709M | Multi-grade bridge special steel including ordinary and atmospheric corrosion resistant types |
| Overall Design Specification | AASHTO LRFD Bridge Design Specifications (10th Edition) | Authoritative load and resistance factor design system for U.S. highway infrastructure |
| Key Load-Bearing Components Control | AWS D1.5 Clause 12 | Systematic fracture risk prevention scheme for nonredundant critical arch structures |
| Raw Material Performance Test | Heat Analysis + Tension Test + Charpy Impact | Full detection of chemical composition, mechanical strength and low-temperature impact toughness |
| Factory Production Qualification | AWS D1.5 Mandated Fabricator Certification | Official qualification accepted by all American bridge engineering authorities |
| Weld Inspection Standard | ASNT SNT-TC-1A / AWS D1.5 | Unified nondestructive testing specification for all arch main welding joints |
| Atmospheric Anti-Corrosion Index | ASTM G101 (Weathering Grades) | W-type steel with corrosion index ≥6.0 to extend long-term outdoor service life |
Welcome Long-Term Global Infrastructure Cooperation
Our AWS D1.5 Compliant Curved Steel Arch Bridge is a high-standard integral bridge solution that meets all safety, durability and code acceptance requirements for U.S. highway engineering. Combining authoritative AASHTO LRFD design theories, premium ASTM A709 structural steel and standardized AWS D1.5 welding processes, our complete steel arch bridge has gained consistent recognition from structural engineers, general contractors and state transportation departments. Whether your project requires low-maintenance weathering steel integral bridges, customized fracture-critical long-span arch bridges or special landscape curved arch structures, our prefabricated whole bridge scheme can accelerate construction progress, lower on-site labor costs and maintain sufficient structural safety margin. We are Hangzhou FAMOUS Steel Engineering Co., Ltd., a professional heavy steel bridge manufacturer based in China with rich experience in manufacturing U.S. standard integral steel arch bridges. Please share your project span data, traffic load requirements and construction drawings with our technical team, we will formulate exclusive customized integral bridge solutions and competitive factory quotations for you without delay.
