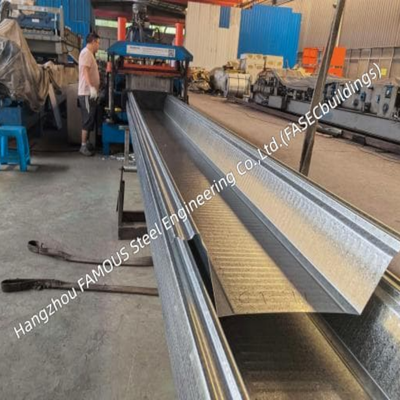

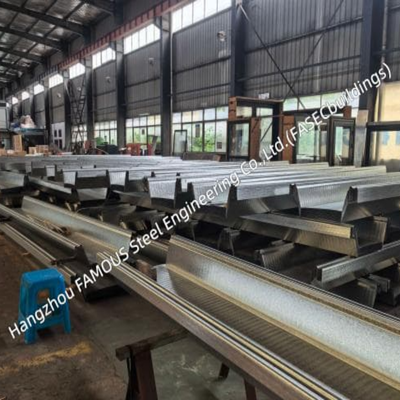

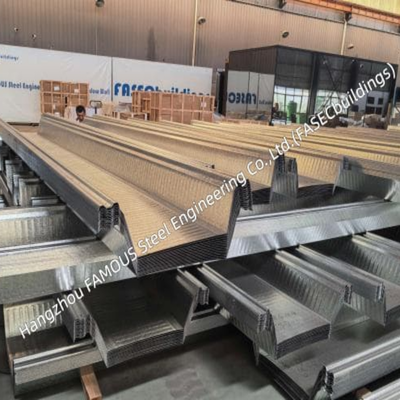

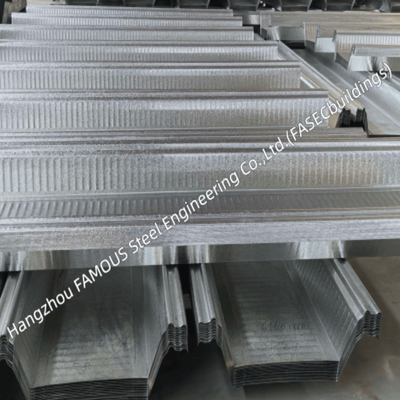

ComFlor 60/210 Equivalent Composite Floor Deck – Heavy Galvanized, AU/USA Compliant

  • ComFlor 60/210 Equivalent Composite Floor Deck – Heavy Galvanized, AU/USA Compliant
  • ComFlor 60/210 Equivalent Composite Floor Deck – Heavy Galvanized, AU/USA Compliant
  • ComFlor 60/210 Equivalent Composite Floor Deck – Heavy Galvanized, AU/USA Compliant
  • ComFlor 60/210 Equivalent Composite Floor Deck – Heavy Galvanized, AU/USA Compliant
Place of Origin China
Brand Name FASEC
Certification ISO 9001; CE Marking (EN 1090-1); BES 6001; EPD (ISO 14025 / EN 15804)
Model Number Composite Floor Deck
Minimum Order Quantity 1000 MT
Price USD 12-20/SQM
Packaging Details Sea Freight (Container/Bulk Vessel)
Delivery Time 10-30 Days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 2,000 – 5,000 MT/month
Product Details
Product Name Composite Steel Floor Deck Material S350GD+Z275 Galvanized Steel
Surface Finish Hot-dip Galvanized Application Composite Floor Decking, Bridge Construction, Slim Floor System
Logistics Nestable Profile, Higher Container Loading Customization Customized To Customer Requirements
Leave a Message
Product Description

The ComFlor 60 and 210 equivalent decks are structural composite flooring systems engineered to deliver identical dimensional, structural, and fire‑performance characteristics as the original profiles, while offering a cost‑effective alternative for international construction projects.
Manufactured from S350GD+Z275 high‑tensile steel with a heavy 275 g/m² galvanized coating, these profiles provide durable corrosion protection and long‑term service life in low to medium aggressive environments. Their trapezoidal/re‑entrant rib geometry ensures efficient composite action with concrete, and the nestable shape reduces transport volume and on‑site handling time.
Our production facility operates under strict quality control and maintains high‑capacity continuous runs, enabling short lead times and stable supply for projects of any scale – from single‑storey mezzanines to large‑span multi‑storey car parks and bridge walkways.

Performance & Structural Features

Spanning capability
– CF60 equivalent: unpropped spans up to 4.5 m; with propping, up to 6.0 m
– CF210 equivalent: unpropped up to 6.0 m; propped spans exceeding 8.5 m
– Reduces need for temporary supports and secondary beams, cutting foundation and labour costs.

Composite action
– Central shear stud placement in troughs ensures full shear transfer between steel and concrete.
– The closed rib profile provides high longitudinal shear resistance, enabling thinner slabs without sacrificing load capacity.

Fire performance
– Achieves up to 120‑minute fire rating (R120) without sprayed fire‑resistant coating – simply adjust concrete cover thickness per design requirements.

Material efficiency
– The profile shape minimises concrete volume per square metre of slab, reducing dead load and material cost while maintaining structural integrity.

Handling and logistics
– 600 mm cover width complies with health and safety guidelines for manual handling.
– Nestable stacking allows more m² per bundle, lowering freight costs and crane usage.

Technical Specifications (CF60 & CF210 Equivalents)

Parameter CF60 Equivalent CF210 Equivalent
Profile Depth 60 mm 210 mm
Effective Cover Width 600 mm 600 mm
Base Steel Grade S350GD+Z275 S350GD+Z275
Nominal Sheet Thickness 0.90 / 1.00 / 1.20 mm 1.25 mm
Zinc Coating Z275 (275 g/m²) Z275 (275 g/m²)
Max Unpropped Span Up to 4.5 m Up to 6.0 m
Max Propped Span Up to 6.0 m Over 8.5 m
Fire Rating Up to 120 mins Up to 120 mins
Typical Application Multi-rise buildings, car-parks, office blocks Slimdek systems, long-span composite floors, integrated shallow-beam construction



Section properties (ultimate moment capacity, shear resistance, deflection data) are available upon request, with full load/span tables provided for all thicknesses.

Typical Applications

  • • Commercial and residential multi‑storey buildings – offices, apartments, student housing

  • • Multi‑storey car parks – heavy vehicle traffic, durable surface

  • • Healthcare and education facilities – hospitals, schools, colleges

  • • Bridge walkways and station platforms – pedestrian infrastructure

  • • Warehouse mezzanines – additional floor space in industrial settings

  • • Slimdek‑compatible framing – CF210 equivalent works with asymmetric beams to achieve shallow floor zones and reduced overall building height

Quality Assurance & Code Compliance

All our ComFlor equivalent decks are designed and tested in accordance with:

  • • Eurocode 4 (BS EN 1994‑1‑1) – design of composite steel and concrete structures

  • • BS 5950 – structural use of steelwork in building

  • • CE marking – compliant with European Construction Product Regulation (CPR)

  • • AU/USA building codes – accepted for international projects, with full documentation for code submittal

We provide mill test certificates, inspection reports, and full material traceability for every production batch. Our manufacturing processes are certified under ISO 9001, ISO 14001, and ISO 45001.

Competitive Advantages – Why Choose Our Alternative?

Direct factory pricing – No middlemen. Our high‑volume capacity allows us to offer competitive rates without sacrificing steel grade, coating weight, or profile precision.

Reliable production capacity – With continuous manufacturing lines, we guarantee stable supply even for large orders (tens of thousands of square metres) with consistent lead times.

Proven equivalent quality – Our decks are not imitations; they are engineered equivalents with the same external dimensions, material properties, and structural performance as the original ComFlor profiles. They integrate seamlessly with existing design details and connection systems.

Full technical support – We supply load/span tables, section property data, and installation guides to assist engineers and contractors from design to erection.

Global logistics expertise – Professional packing ensures damage‑free delivery, and we handle all shipping arrangements for door‑to‑door worldwide service.

ComFlor 60/210 equivalents – in production now. Heavy galvanized. AU/USA compliant. Factory direct.

Contact our sales team for immediate quotes, technical datasheets, production samples, or to discuss your project requirements. High volume – ready to ship.

—— Manufactured by Hangzhou FAMOUS Steel Engineering Co., Ltd. (FASECbuilding)

ComFlor 60/210 Equivalent Composite Floor Deck – Heavy Galvanized, AU/USA Compliant
