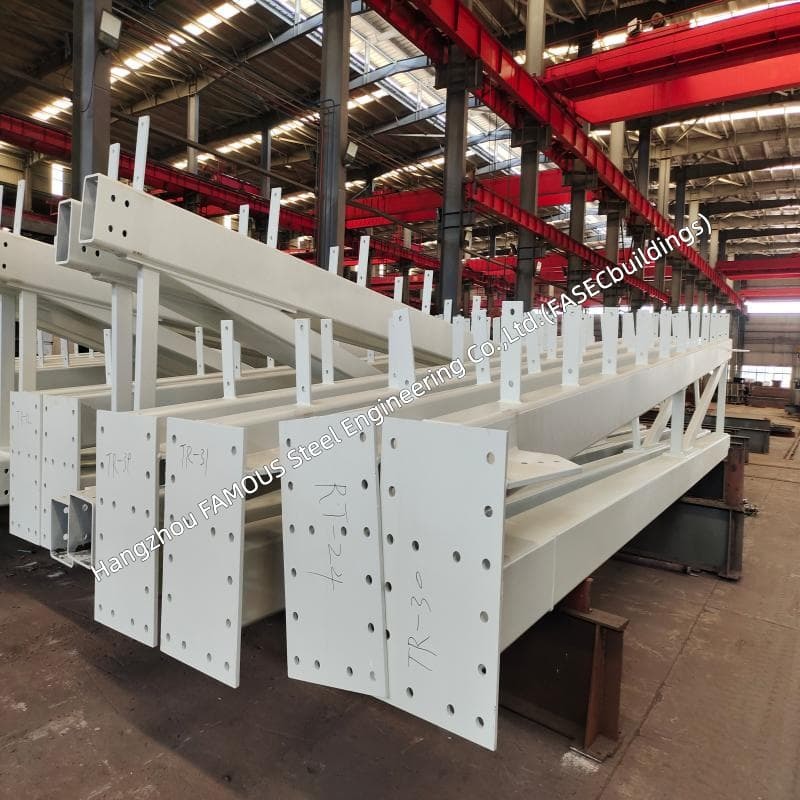

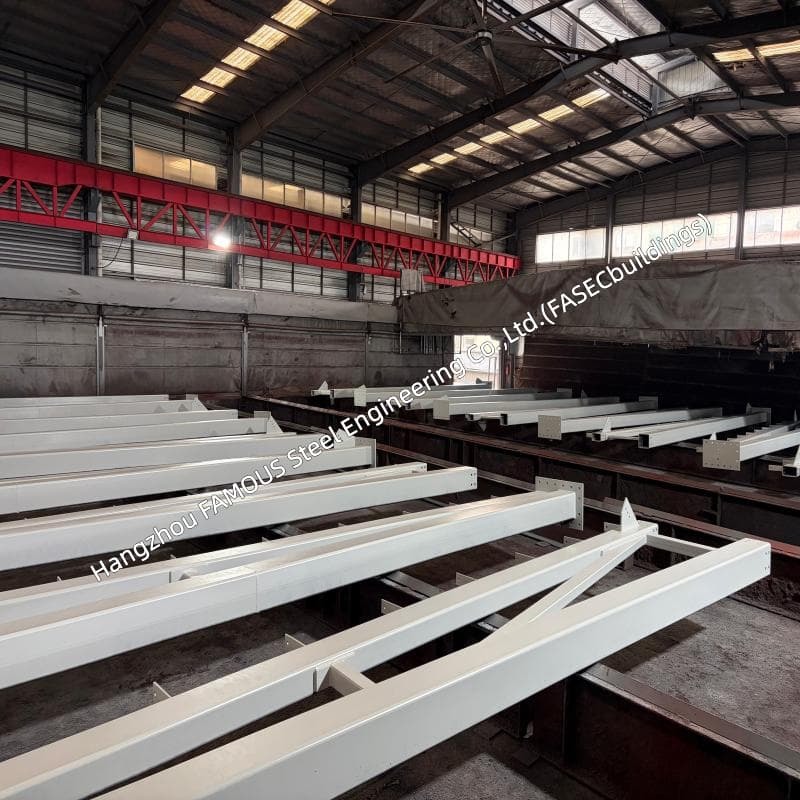

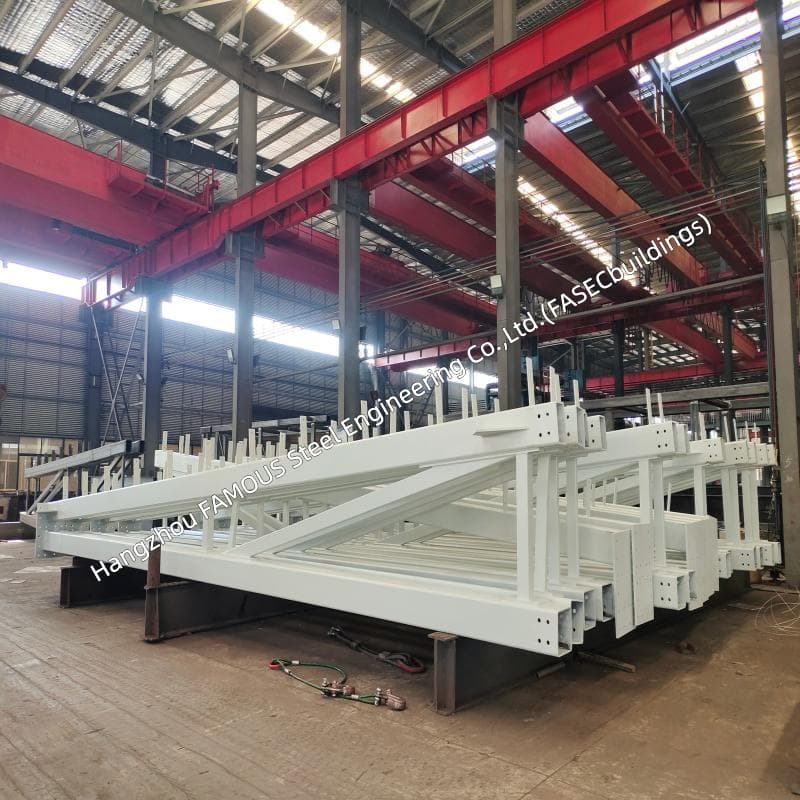

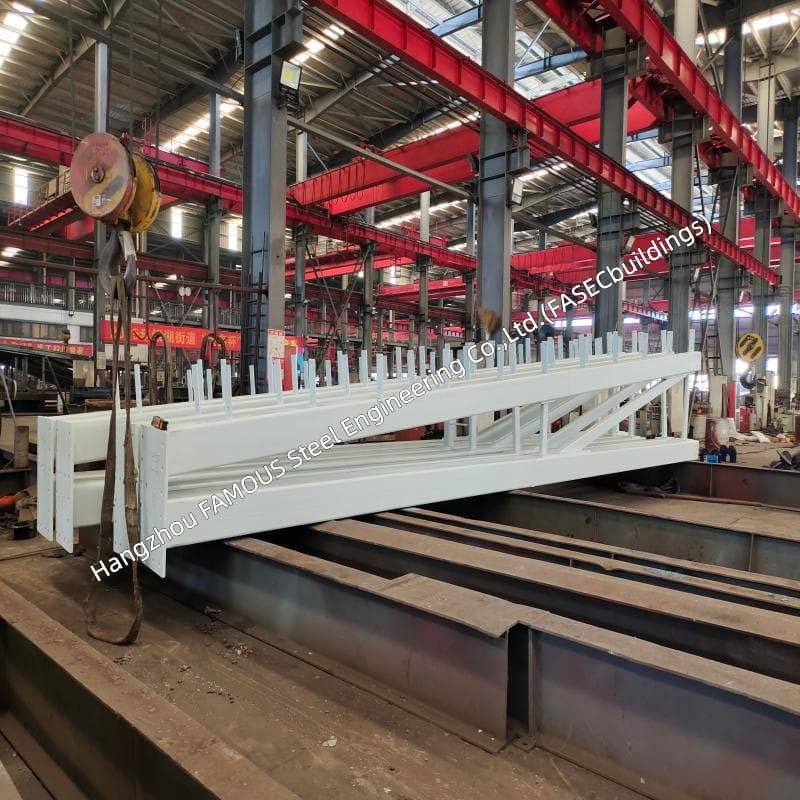

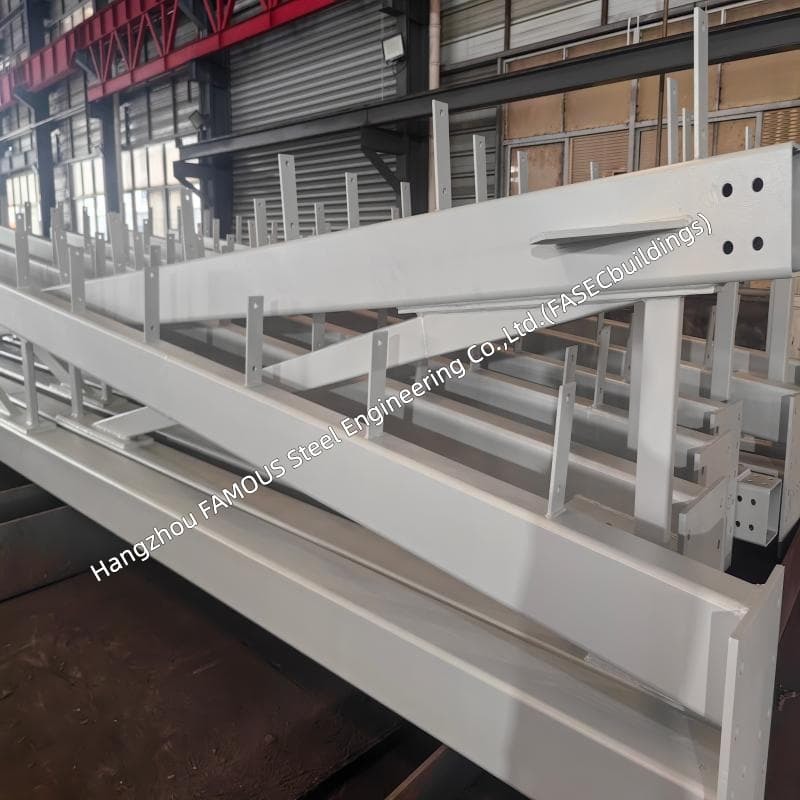

Galvanized Steel Truss Framework for Warehouse & Workshop Construction
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001:2015; CE Marking |
| Model Number | Steel Truss |
| Minimum Order Quantity | 1000 MT |
| Price | USD 1,000-1,500/MT |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 10-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2,000 – 5,000 MT/month |
Product Details
| Product Type | Galvanized Steel Truss Framework | Customization | Custom Span, Height, Configuration, Steel Grade, Surface Treatment |
|---|---|---|---|
| Prefabrication | Factory-fabricated; Bolted Assembly, No On-site Welding | Member | Steel Truss, Steel Column, Steel Beam |
| Style | Modern, New, Fashion | Processing | Welding |
| Purling | C/Z Galvanized Steel(Q235) | Application | Construction, Industrial Buildings, Warehouses, Bridges |
Product Description
The Galvanized Steel Truss Framework is a high‑performance structural system for warehouse and workshop construction, featuring large clear spans, heavy load capacity and long‑term durability. The triangulated truss members only bear tension and compression force without bending, achieving outstanding strength‑to‑weight ratio. Made of high‑strength structural steel with hot‑dip galvanized finish, it delivers reliable corrosion resistance, load‑bearing capacity and design flexibility for modern industrial buildings.
Hot‑Dip Galvanized Protection – Built for Industrial Environments
Warehouses and workshops frequently face moisture, chemical erosion and surface wear. The hot‑dip galvanized finish forms robust zinc coating for excellent corrosion resistance to prevent steel rust and deterioration. It removes the need for on‑site painting, cutting construction and maintenance expense. The treated structure can reach 50+ years design life with little upkeep, suitable for coastal, humid and chemically aggressive industrial sites.
Long‑Span Capability – Maximising Usable Floor Space
This steel truss framework achieves exceptional long‑span capability with column‑free spans from 6 to 36 metres. No inner columns bring unobstructed interior space, well‑suited for warehouse storage, production lines and material handling work. Open floor layout supports flexible storage layouts, efficient workflow and easy expansion, bringing practical operational benefits for end users. It can handle large‑scale industrial projects even above 18‑metre span without intermediate supports.
Heavy Load Capacity – Supporting Industrial Operations
Triangulated truss structure ensures good load distribution and structural stability, fit for heavy‑duty warehouse racking, overhead cranes and industrial machinery. The framework is designed for:
Triangulated truss structure ensures good load distribution and structural stability, fit for heavy‑duty warehouse racking, overhead cranes and industrial machinery. The framework is designed for:
- • Live loads for storage and production
- • Wind loads for structural stability
- • Seismic loads for earthquake resistance
- • Overhead crane loads and heavy equipment loads
- • Snow loads for cold‑climate regions
High‑strength steel grades guarantee stable performance under harsh industrial working conditions.
Specification
| Parameter | Details |
|---|---|
| Truss Type | Warren, Pratt, Howe, or custom configurations – triangular lattice pattern |
| Span Length | 6 – 36 metres – single span or multi‑span, column‑free design |
| Steel Grades | Q235B (economical), Q355B (high‑strength), ASTM A36/A572, EN S235/S355JR |
| Member Sections | H‑section steel, square tube, channel steel, or angle steel – customised to design |
| Surface Treatment | Hot‑dip galvanized (80–120 μm) – superior corrosion protection |
| Connection Type | Bolted or welded – high‑strength bolts (grade 10.9) for rapid assembly |
| Design Standards | ASTM, EN, BS, DIN, GB, JIS, AISI – compliant with international codes |
| Design Software | STAAD.Pro, SAP2000, RFEM – for accurate structural analysis |
| Design Life | 50+ years with minimal maintenance |
| Certification | ISO 9001:2015 Quality Management; CE marking available |
| Welding Standards | AWS D1.1, EN1090, AS/NZS – compliant with international welding codes |
Prefabricated Construction – Rapid On‑Site Assembly
All truss framework parts are factory‑fabricated under controlled workshop environment including cutting, drilling and welding before shipment. This prefabricated solution brings multiple merits:
- • Shorter construction cycles for fast field assembly
- • Error‑free installation, no extra on‑site modification
- • Reduced labour costs for fewer on‑site skilled workers
- • Minimised weather delays, less field‑side construction work
- • Bolted connections, quick installation without on‑site welding
Modular design keeps consistent product quality and predictable project timelines, matching tight construction schedules of industrial projects.
Flexible Design & Customisation
Every truss framework is custom‑designed for individual warehouse or workshop projects:
Every truss framework is custom‑designed for individual warehouse or workshop projects:
- • Custom spans according to building dimension and layout
- • Custom heights matching clearance and operational requirements
- • Custom configurations: Warren, Pratt, Howe or space truss
- • Custom steel grades selected for load and surrounding environment
- • Custom surface treatment: galvanized or painted finish options
Flexible plane shape supports various layout solutions. Our engineering team provides detailed shop drawings and 3D modelling to ensure perfect component fitting.
Structural Advantages – Why Steel Trusses for Warehouses?
Steel trusses have obvious strengths compared with solid‑web beams and other structural forms for warehouse & workshop projects:
Steel trusses have obvious strengths compared with solid‑web beams and other structural forms for warehouse & workshop projects:
- • Lightweight: saves steel consumption and lowers foundation load
- • High rigidity: triangulated structure delivers great stiffness under loads
- • Seismic resistance: high ductility secures safety during earthquake
- • Wind resistance: stable performance under strong wind condition
- • Design flexibility: multiple shapes and layout alternatives
- • Rapid installation: prefabricated parts speed up site erection
Applications – Warehouses & Workshops
The galvanized steel truss framework acts as major roof and structural supporting system for diverse industrial facilities:
- • Warehouses: storage premises, distribution centres, logistics hubs
- • Workshops: manufacturing plants, assembly halls, repair shops
- • Factories: production buildings and processing plants
- • Industrial storage: bulk storage, cold storage, agricultural storage
- • Commercial facilities: exhibition halls, shopping centres, sports arenas
- • Special structures: aircraft hangars, vehicle maintenance buildings
Sustainability – Built for the Future
Steel material is 100% recyclable. Truss framework can be fully recycled after service period without performance loss. It is an eco‑friendly option for industrial construction, supporting green building certifications and enterprise sustainability goals. Long service life plus low‑maintenance feature also cuts whole‑life‑cycle environmental impact of buildings.
Steel material is 100% recyclable. Truss framework can be fully recycled after service period without performance loss. It is an eco‑friendly option for industrial construction, supporting green building certifications and enterprise sustainability goals. Long service life plus low‑maintenance feature also cuts whole‑life‑cycle environmental impact of buildings.
Quality Assurance & Certification
All galvanized steel truss frameworks are produced under strict quality control procedures with complete material traceability:
- • Incoming material inspection: verify mill test certificates and material performance
- • In‑process inspection: dimension check, weld quality audit and surface preparation check
- • Final inspection: full test and document arrangement before delivery
- • Certification: ISO 9001:2015 Quality Management and CE marking available
- • Welding standards: comply with AWS D1.1, EN1090, AS/NZS
- • Testing: optional non‑destructive testing (NDT) service
Why Choose Our Galvanized Steel Truss Framework?
For warehouse and workshop projects requiring durability, long spans and cost‑efficiency, our galvanized steel truss framework is your ideal choice. Featuring column‑free spans from 6 to 36 metres, hot‑dip galvanized protection for 50+‑year service life, multiple steel grade & connection selections and full project‑oriented customisation, our truss systems deliver stable structural performance and long‑term economic value. Supported by professional engineering service, advanced production equipment and international qualifications, Hangzhou FAMOUS Steel Engineering Co., Ltd from China is your reliable supplier for global industrial steel‑structure projects.
Contact us today to talk over your warehouse or workshop project. Please offer information of span, height, loading, steel grade preference and surface treatment requirements. Our technical team will send you customised design proposal and competitive quotation within 24 hours.
