Metal Road Steel Galvanized Street Sign Posts Traffic Signal Lighting Poles Heavy Duty
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO9001:2008; EN |
| Model Number | Metal poles |
| Minimum Order Quantity | 30 pieces |
| Price | USD50-USD600 /piece |
| Packaging Details | In bundles, all seaworthy packaging and transportation |
| Delivery Time | 30 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Grade | Q235,Q345,S235,S355 ,SS400 Etc |
|---|---|---|---|
| Type | Metal Poles | Product Name | Steel Traffic Signal Poles And Sign Posts |
| Height | 3-15 Meters | Surface Treatment | Hot-dip Galvanizing Antirust/powder Coating |
| MOQ | 30 Pieces | Turnaround Time | 30 Days |
| High Light | steel street sign post,metal street sign posts,metal road sign post |
||
Product Description

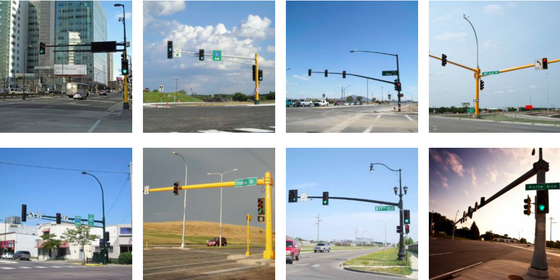

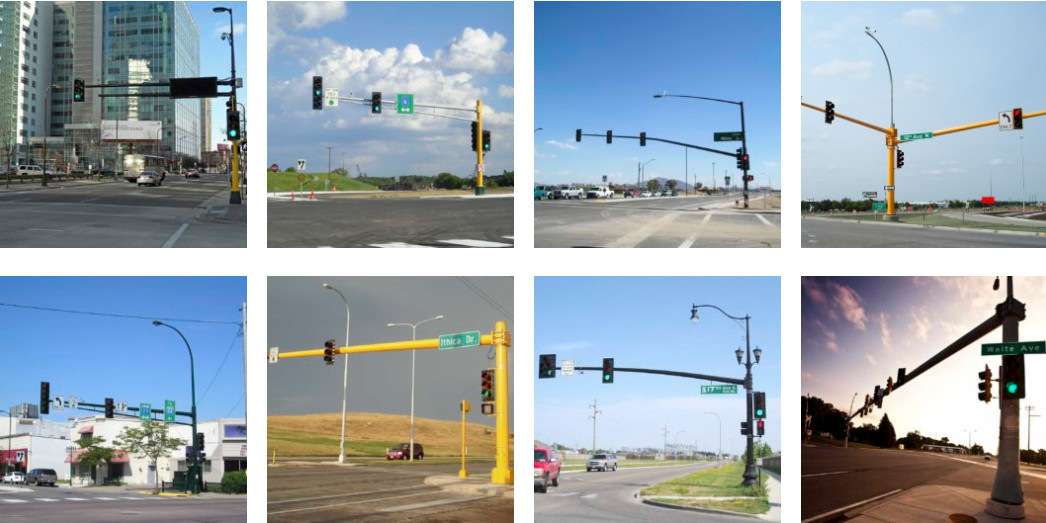

Traffic signal poles and sign posts are specially designed for roadway and intersection requirements. The Traffic Signal Poles and sign posts range from us are designed for standard and specialised signal lighting and sign applications, built to the exact specifications of local road authority or municipalities, through various process like bending, forming, welding, hot dip galvanization and powder coating. The poles can be powder coated or painted in the colour of your choice, available in tapered round, tapered octagonal, and circular hollow section.
The poles can be either base plate or in-ground mounted, depending on the relevant authority’s requirements.
Specifications
| Material: | steel, Q235,Q345,S235,S355,SS400 |
| Yield strength of Material: |
Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 |
| Pole height: | 3-15m |
| Length of one part | with joint |
| Wall thickness: | 6-8mm |
| Pole's Shape Can be made: | Polygonal, Round,Octagonal, Taper round, Round conical, Taper Square, Square. |
| Galvanization: | Hot dip galvanization with thickness of 80-100µm average in accordance with European standards. |
| Painting color: | (RAL)Color card or Refer to client’s requirement |
| Surface treatment : | Rough pole, Hot dip Galvanizing antirust, Hot dip galvanizing with powder coating |
| Temperature range | -35 °C~+65 °C |
| Wind Speed: | Aganist wind pressure of 120Km/h to 180Km/h, or according to client design. |
| Base plate mounted | Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted: | The length buried underground as per customer’s requirement. |
| Quality Control | According to ISO9001-2008 requirements. |
| Certificates | ISO9001-2008, A153 Galvanize Standards EN 1461 |
For material we recommend powder coated galvanized steel poles, these super durable poles are rated for outdoor wet locations. Steel is usually the least expensive and highest strength material for a pole of a given diameter and wall thickness. Steel poles and supports is an excellent choice for projects located in high wind areas and areas that need to withstand large and/or heavy loads and these poles can survive heavy human traffic.
OUR CERTIFICATE
ABOUT US

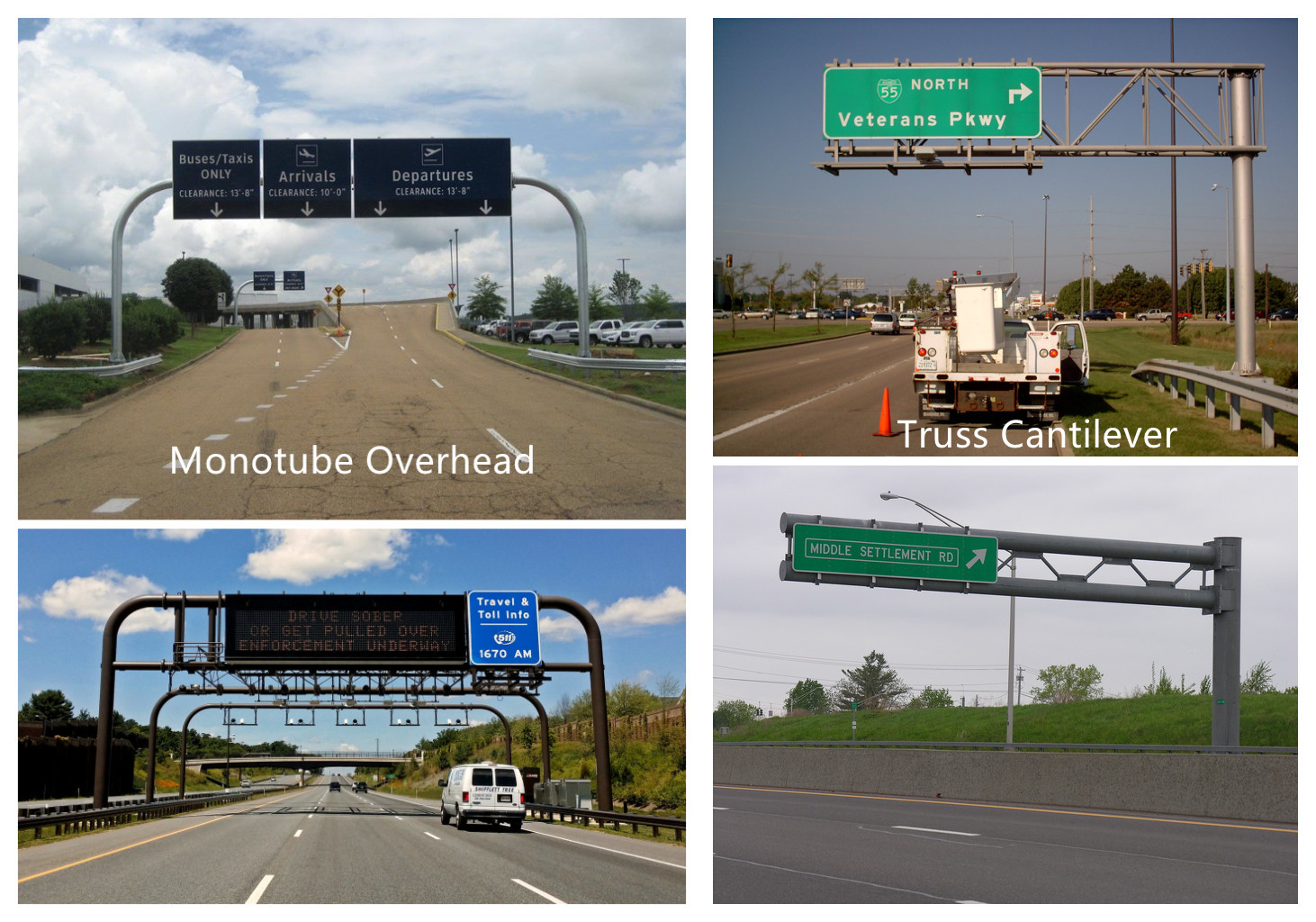

We are a professional and trusted manufacturer of custom Steel Structural Supports for Signs, Traffic Signals and Luminaires. Products include but not limited to traffic signal poles, traffic sign posts and gantries, CCTV monitoring poles, lighting poles, telecom tower, lattice towers, bridges and allied accessories. Industries served include transportation, utility and architectures.
WHY US?
• CAD design engineering service - senior engineer team ready to create tailored solutions to fit both your project and budget.
• Longer product service life - study construction, corrosion resistant finishing and strict quality management.
• Proven performance - serviced lots of Urban Municipal Projects.
• Quick shipment - factory ownership, good control of production schedule.
If you have interest, please contact us for a quote. We are happy to talk about our capabilities and solutions for your project.
Email: Eva@hfsteelstructure.com
Phone: +86-571-87688170;
Whatsapp: +86-18072803246
