Crossing Peace Pedestrian Overpass Bridge Design Segmental Preassemble Railway Road

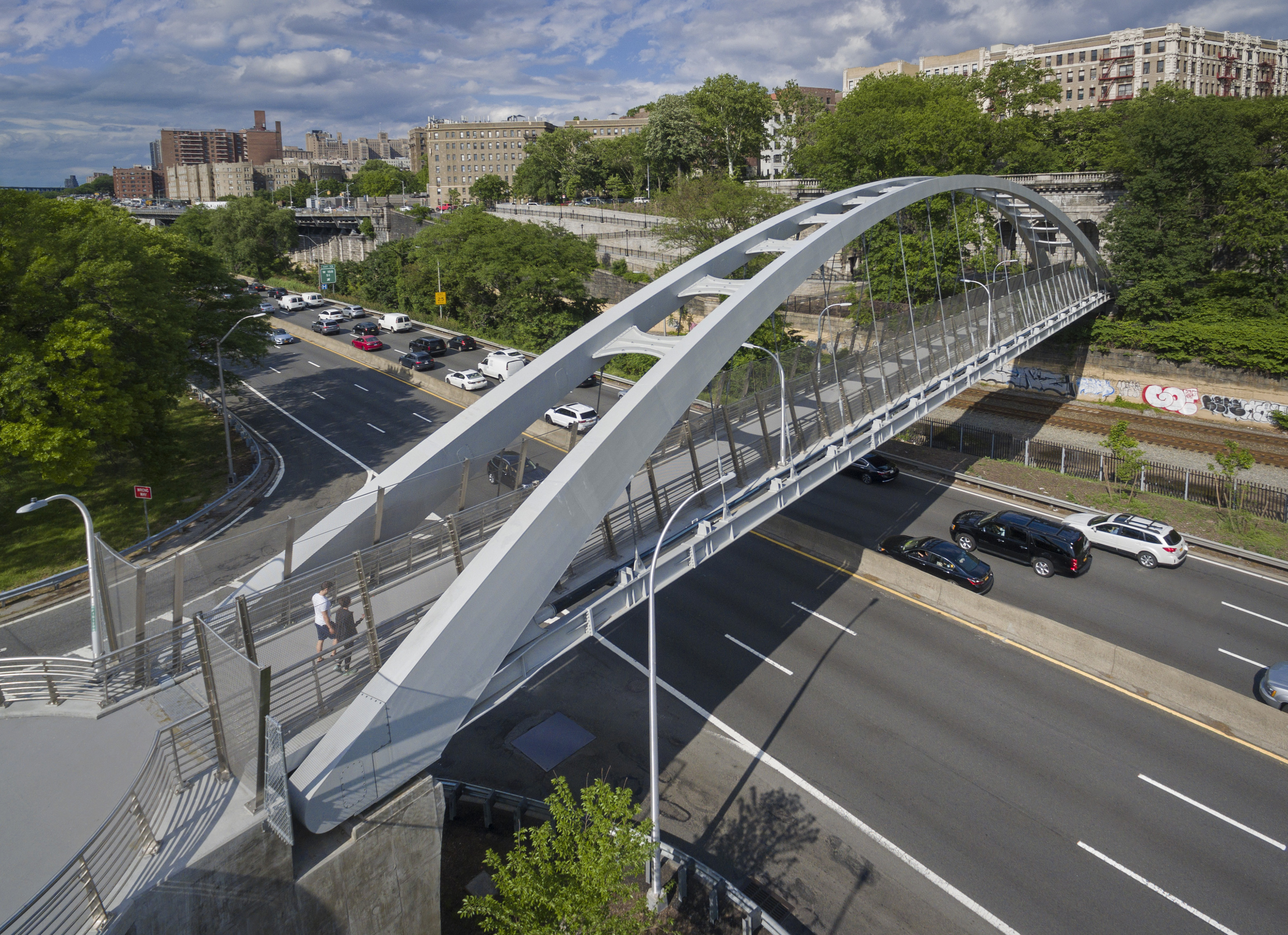

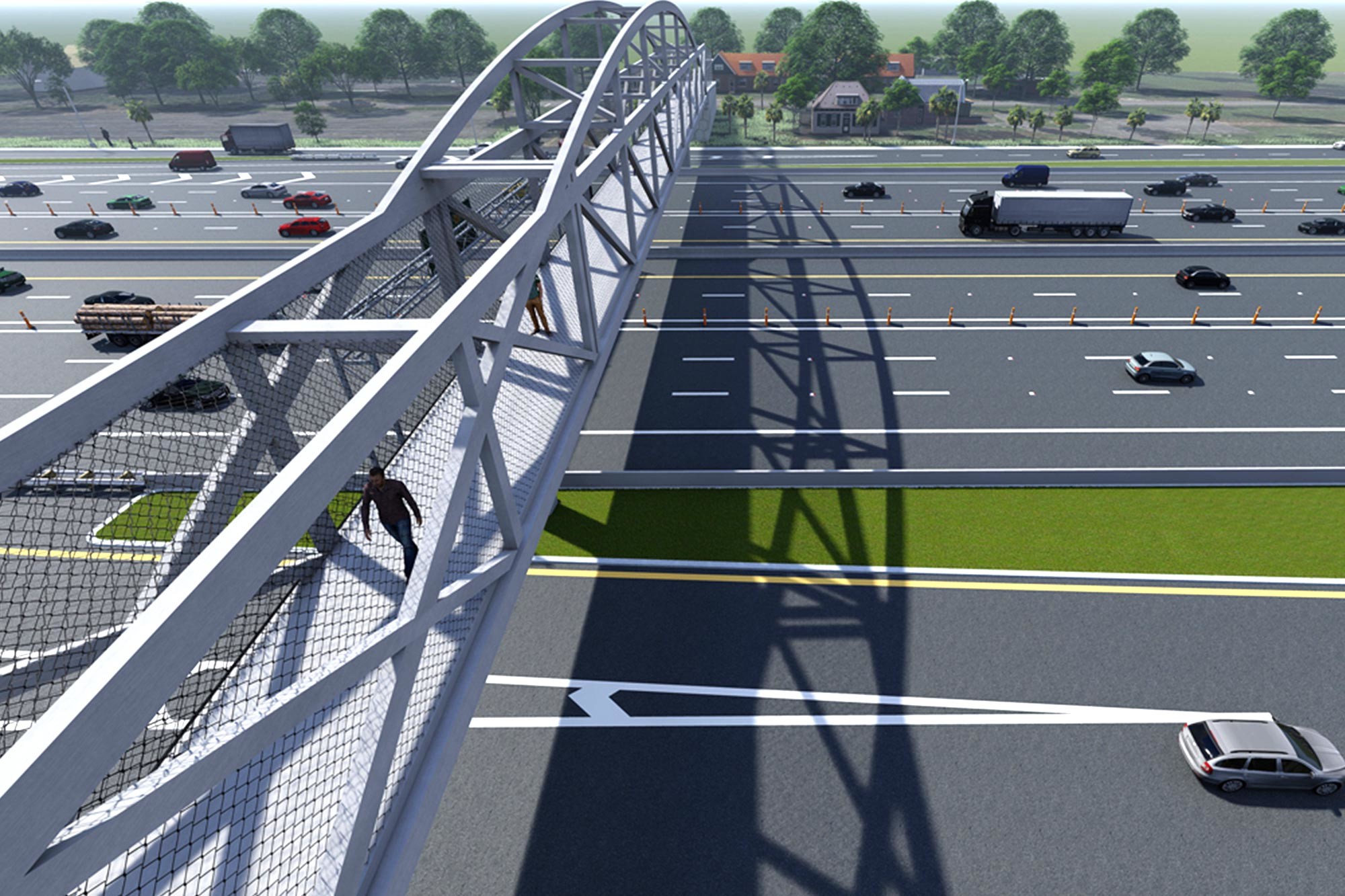

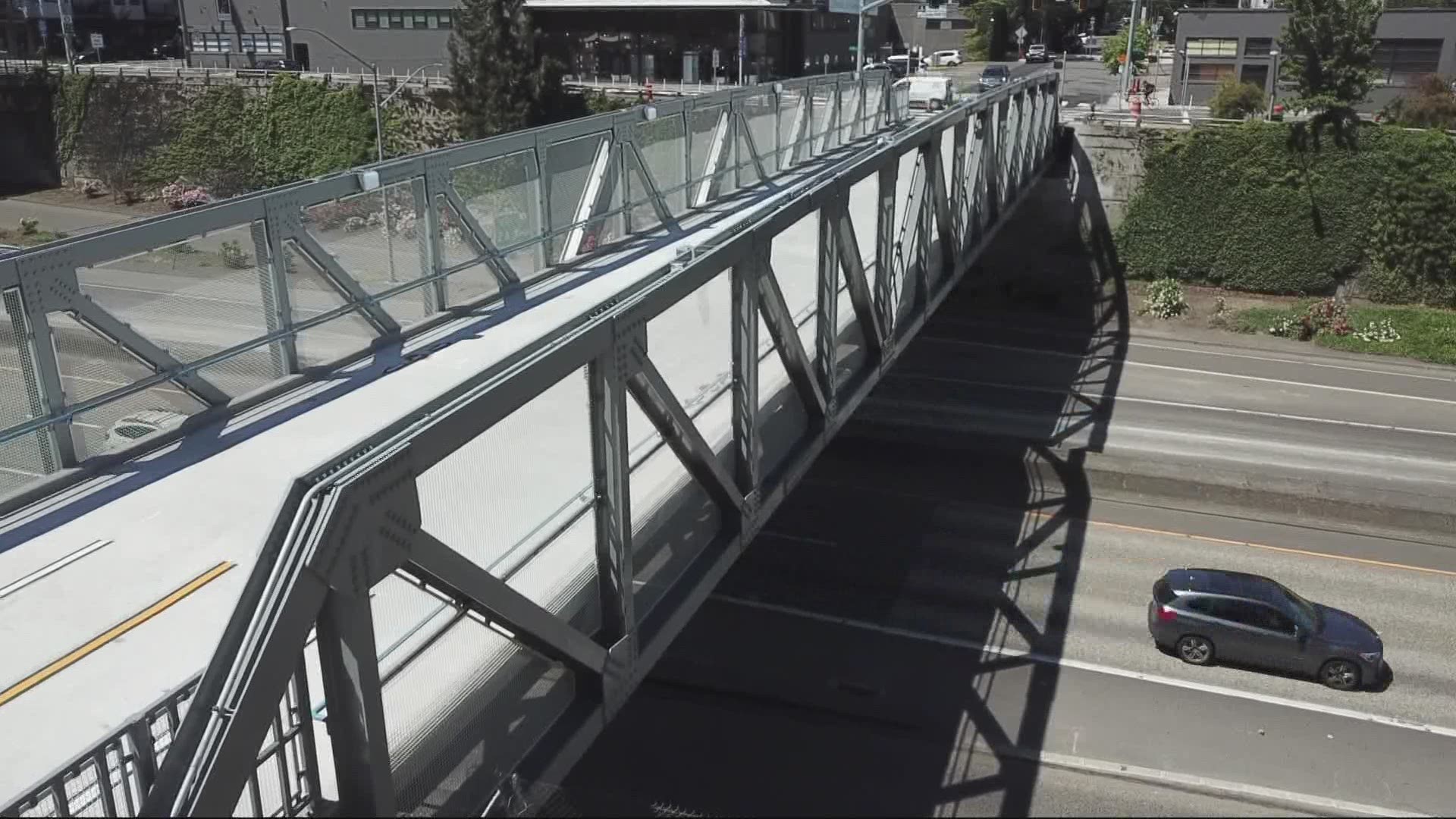

Pedestrian bridges are needed where a separate pathway has to be provided for people to cross traffic flows or some physical obstacle, such as a river. The loads they carry are, in relation to highway or railway bridges, quite modest, and in most circumstances a fairly light structure is required. They are, however, frequently required to give a long clear span, and stiffness then becomes an important consideration. The bridges are often very clearly on view to the public and therefore the appearance merits careful attention. Steel offers economic and attractive forms of construction which suit all the requirements demanded of a footbridge.

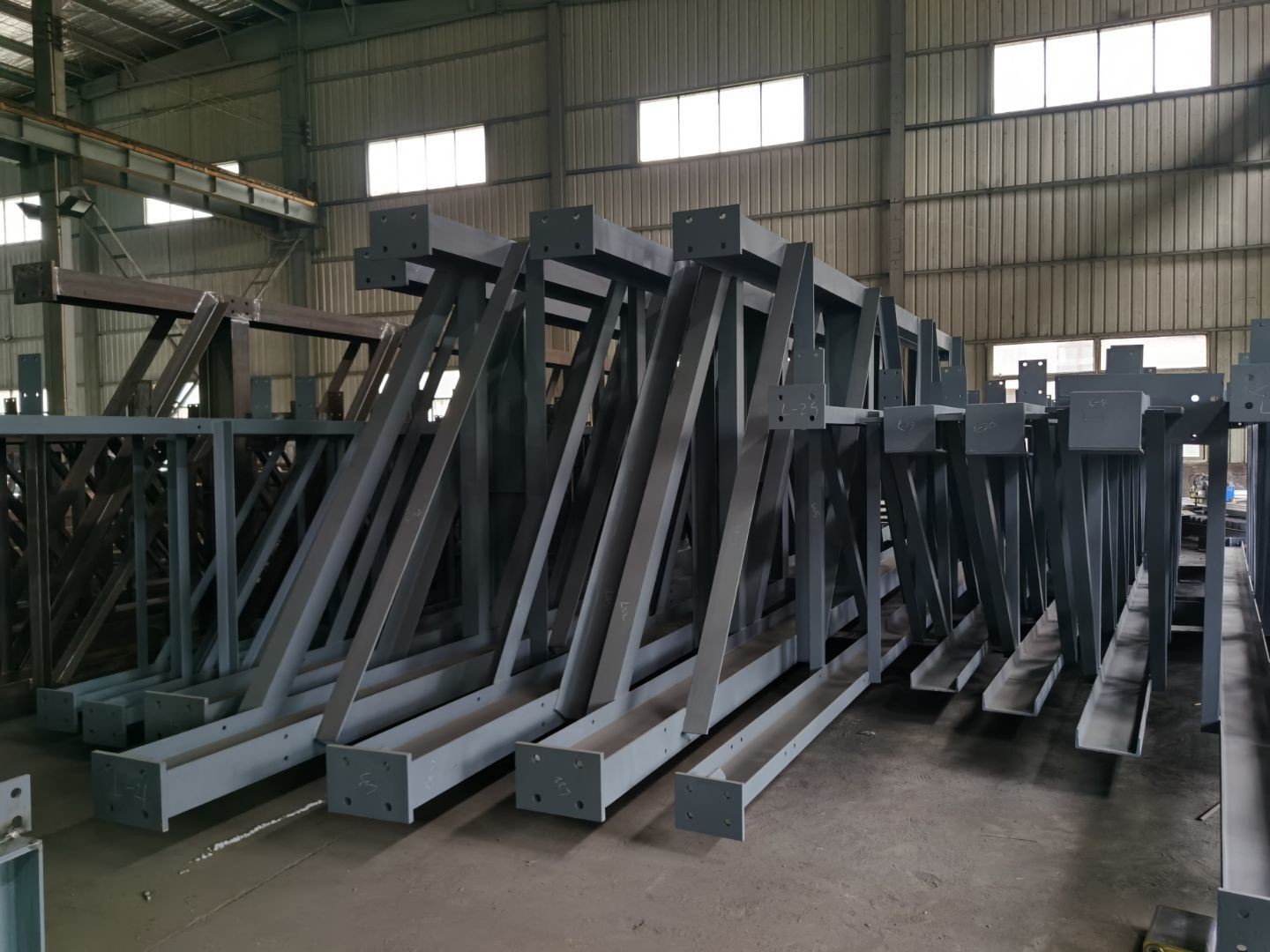

Pedestrian Bridges are built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, bridges can be built to match a wide range of pedestrian bridging applications. Because of their excellent versatility and overall value, thousands of Pedestrian bridges have been installed throughout the world.

Features
• Adaptable - pre-engineered to match each application
• Fast - modular stocked components, open to traffic in days
• Lower Cost - an alternative to custom designed bridges
• Easy - to handle, transport, assemble, install and reuse

Advantage
Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
