Steel Plate Composite Box Girder Bridges Construction Multi-Span Highway
| Place of Origin | China |
|---|---|
| Brand Name | FAMOUS-KNSN |
| Certification | EN1090, ISO3834, AWS D1.1/1.5 |
| Model Number | NO.200 |
| Minimum Order Quantity | 100MT |
| Price | USD1150-3150 PER TON |
| Packaging Details | seaworthy packings for either container or break bulk which is the same as done before |
| Delivery Time | 60-130 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 ton per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Steel Structure Bridge For Highway | Warranty | QA QC Of Foreign Standards |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Overseas,Field Installation,commissioning And Training,Online Support | Product Name | China Design Factory Double Girder Bridge Overhead 50 Ton Crane,Double Girder Bridge Mechanical Grapple Crane |
| Surface Treatment | Hot Dip Galvanized Or Painted | Grade | Q235 Q345 & Q355 Q460 Etc Steels |
| Performance | Safety, Convenient, Install Easily Etc. | Rated Loading Capacity | 5t-800t |
| Standard | ASTM,BS,GB,AISI,DIN | ||
| High Light | steel box bridge,composite plate girder,multi-span highway bridges |
||
Product Description

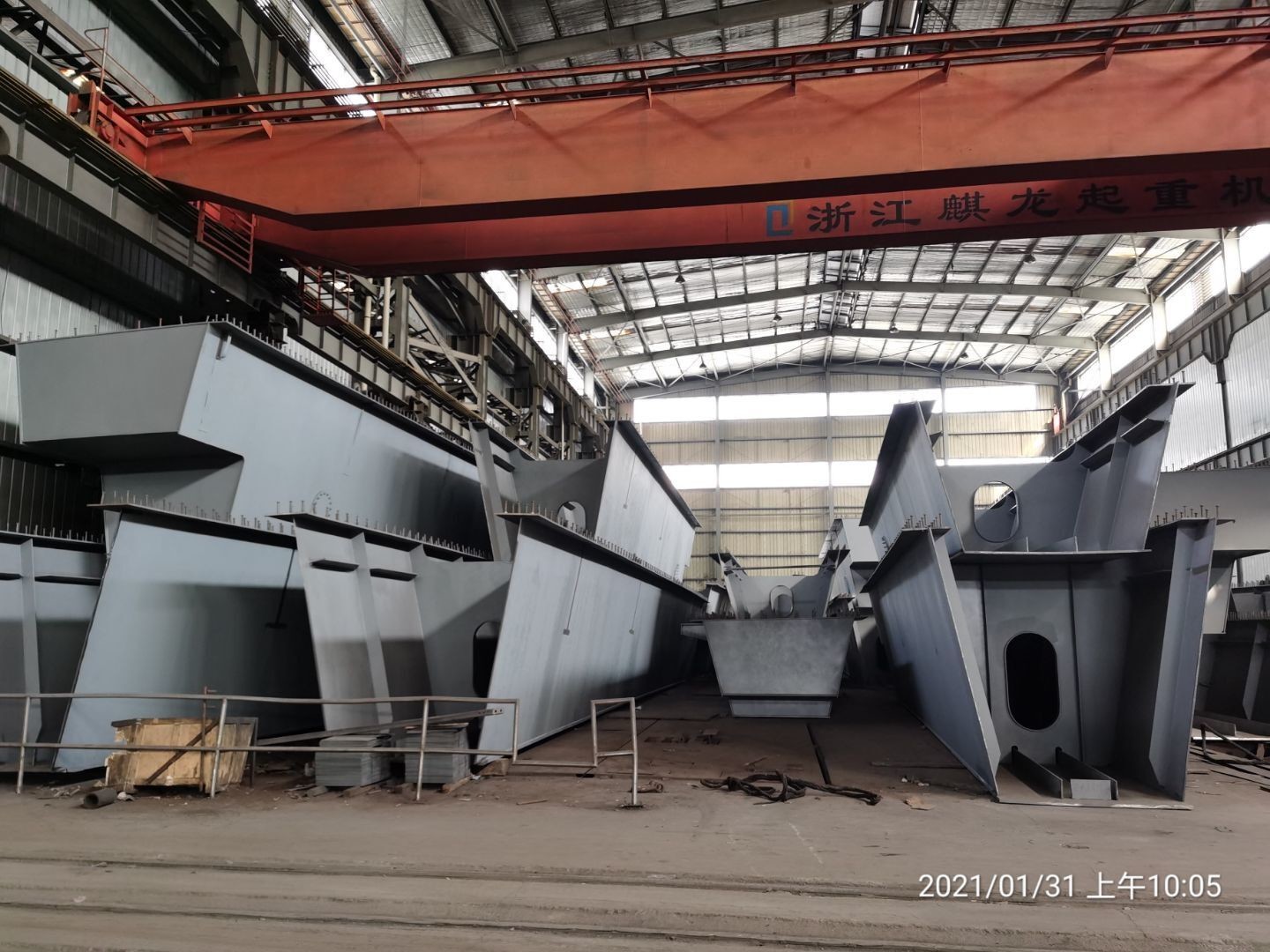

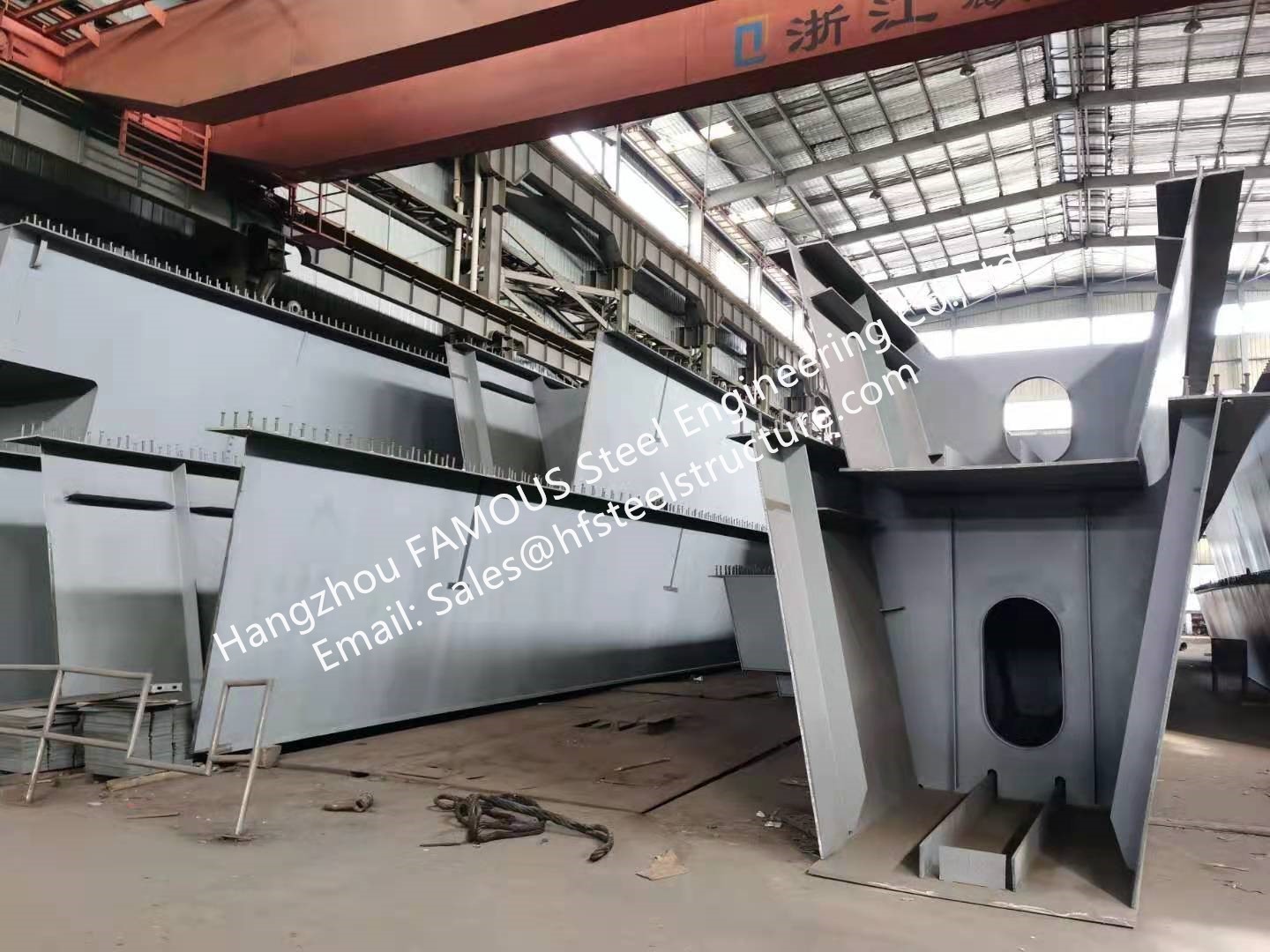

Multi-span Steel Plate Simply Supported Box Steel Girder Bridge
| Product Name | Steel gider bridge |
| Width | 10-100 meters |
| Maximum span | 10-1000meter |
| Bridge deck | Anti-slip steel decking floor,checkered steel plate etc |
| Steel grade | Q345/Q355 (equivalent to ASTM A572) or Q460 etc custom required |
| Loading capacity | 10-200ton truck etc, or HS20-44, HS25-44/Truck 20/HL-93 |
| Corrosion | Original coat paintIing or Hot dip galvanized |
| Advantages | Cost-effective and technical full analysis and supports |
| Applications |
Road Bridges · Pedestrian Bridges · Railway Bridges · Steel Truss Bridge · Beam Bridges · Steel Bailey bridge · Structural Steel Box Bridge Highway Bridges · Composite Beam Bridge · Cable-Stayed Bridge · Floating Bridge etc. |
Components of Plate Girders
Mainly there are five components in a girder. The assembly of that five-component is the complete girder. The basic requirement is to make an ” I ” girder having very high bending and shear stiffens in addition to the other local buckling resistances.
Web Plate
Flange
Stiffeners (bearing, longitudinal, and intermediate)
Splices for flange and web
End Connection
1. Web Plate
The vertical plate of the girder is known as the web plate.
Its thickness is based on the design requirements and the height will also be decided based on the site condition and as per the loads applied on the web.
The web normally carries the applied loads on the flange as shear forces. The effect of the web is not usually considered when the design for the bending.
The web is susceptible to buckling when thinner and higher increase when the loads are applied. Therefore, different types of stiffness which will be discussing in this article, are welded to the web have its strength.
2. Flange
There is no specialty other than using a separate plate for the flange. The flange plate will be welded or connected by other means as discussed under different types of plate girders.
Not like rolled sections, we connect the web and the flange together to form the plate girder.
The flange is design to carry the bending action and stiffener or additional plate are provided as per the design requirements.
3. Stiffeners
Stiffeners are provided to enhance structural capacity avoiding the local buckling failures. In addition, they are used to carry the loads applied to the beam until it distributed into the beam.
The following types of stiffeners can be observed in these types of steel elements.
4.End Connection
End connection is the most difficult part of the structural detailing of a steel beam.
When there are continuation or if we are supporting the girder to some support, the connection needs to be designed accordingly.
However, most of the time, plate girders are kept as simply supported at the end support. In such situations, we have to provide the stiffeners at the end connection.
A similar design procedure is followed when designing the endplates and the stiffener provided vertically connecting the web and the flangers.
Application of Plate Girders
Plate girders are widely used as supporting structures in different areas. The following areas can be highlighted as key areas of use.
Bridge construction
Plate girders are mainly used in railway and road bridges. Mostly the old railway bridges can be highlighted as plate girder bridges.
In addition, box girder bridges, beam bridges, military girder composite bridges, and half – through plate girder bridges are considered as it uses.
If you need to know more price information ,please contact us as soon as possible ,we will provide more details.
