High Strength Modular Panel Bridge Prefabricated Vehicle Farm Steel Bailey

Product Description

A modular steel bridge is designed to carry the weight of vehicles. Strong and lightweight, these bridges allow you to bridge a road over a stream, railroad, or gulch inexpensively and easily. Modular steel bridges are designed to carry standard highway loads and they can be single or multiple lanes.

Modular steel bridges can be permanent or temporary. Some municipalities will use a temporary modular steel bridge for a road detour, for example. A modular steel bridge can also be a permanent road bridge for an urban or rural area.

Bailey Bridges we supply is a modular bridging system that can span up to 67meters. Composed of steel truss panels, these elements are connected together by bolts and pins. The installation completed for panel bridges does not require any specific tools or heavy equipment, and all these elements can be handled manually by a team of 6 workers.

The bridge is available in a standard width of 3.15m, but also in extra-wide lane (4.20 meters), double lane (7.35 meters) and optional sidewalks. All the components are generally shipped in standard containers.

Specifications:

Installation of the Steel Modular Bridge:

Method 1 Craning: use of certain tons capacity crane on site, which allows a quick and easy assembly and installation

Method 2 Launching: When the site does not allow crane to work, the Panel Bridge, which can be carried by manpower, can be assembled manually and installed by launching using a pushing device with a limited capacity.

Advantages:

Long-term corrosion protection

High level of mechanical resilience

Perfect all-round protection also in cavities and edges

Cathodic corrosion protection

Attractive appearance

Very economical

Maintenance free

Good Eco-balance, environmentally-friendly process

Applications:

Infrastructure upgrading

Railway

Highway

Footbridge

Emergency

Military

Residential community

Farms

Rural areas

Temporary

Permanent

FAMOUS runs two well-equipped production bases and the capacity of each one is around 30000-40000tons per year. there are many domestic/overseas projects on the going. In addtion to ISO, we also have the certification of AWS D1.1, AWS D1.5 Bridge field specialized Certification, related tests/inspections have been done .

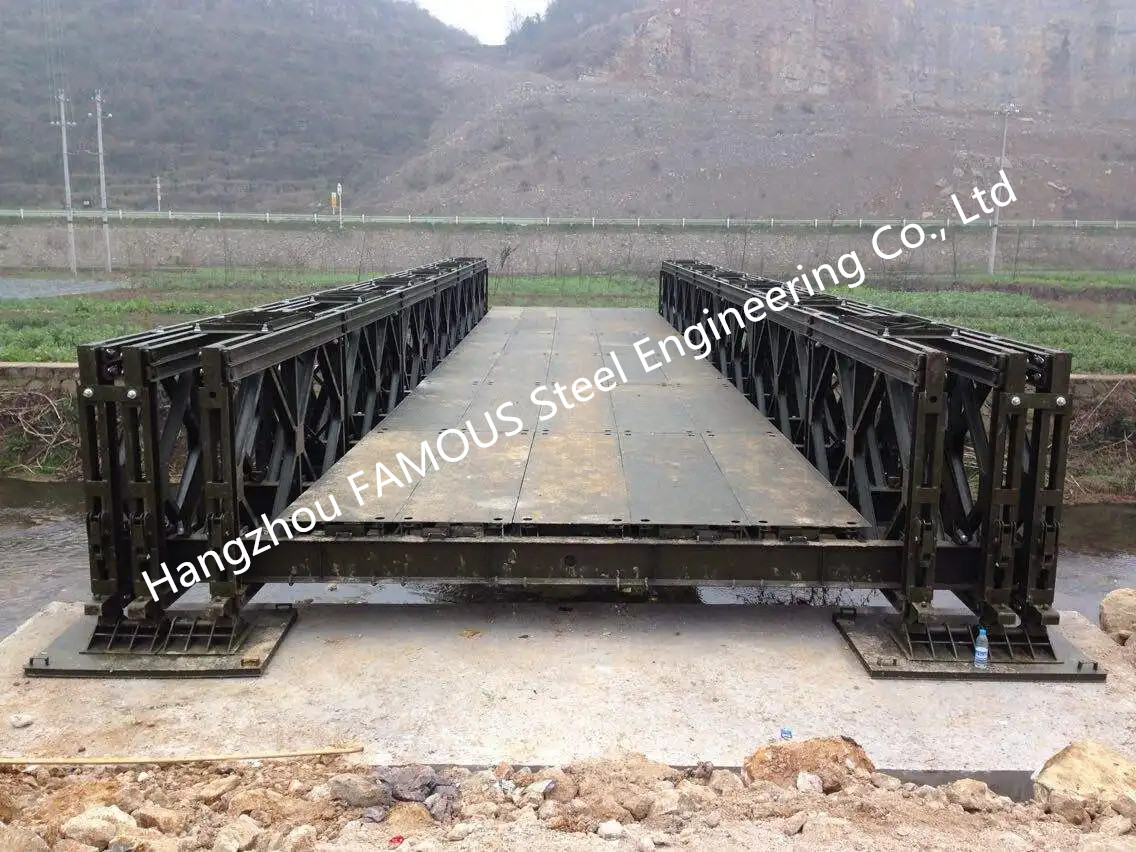

Product images:

If you are interested, please contact us for a quote in whichever means you prefer.
