Pony Railway Steel Truss Girder Bridge Cantilever America Standard AWS D1.1D1.5

America Standard AWS D1.1D1.5 Fabricated Steel Structures Modular Bridges Truss Girder

Product Description

Bailey bridge is used when there is a need to cross an obstacle for a certain time period.This is often in case of military operations, during or after natural disasters replacement or renovation of consistent bridges or in unusually areas like the movie industry. Thereby the function also differs on differs on different users of the bridge which could be pedestrians, common vehicles(cars,busses,trucks),heavy military equipment (tank) or the railway.

Features:

1. Speed construction- pre-engineered components

2. Easy - to handle, transport, assemble, install and reuse

3. Cost effective to own and re-use in different length bridges

4. Damaged parts can be easily and quickly replaced from stock

5. Made of steel with hardwoord for decking

6. All steel is precision CNC machined and laser cut components

7. Faithfully replicates the key component of the original Bailey Bridge, including the Panels, Transoms, Stringers,

Chesses, Ribands, Rakers, Bracing Frames, End Posts and Sway Braces.

8. Additional sections can be added to increase the length of the bridge

9. Additional panels can be added to create Double and Triple panel bridges.

10. Includes all fasteners, pins and bearings

11. Simple exploded view instructions

12. Sections can easily be separated for transport

Our factory owns two large production base and the capacity of each one is around 30000-40000tons per year. there are many domestic/overseas projects under operation. Except ISO, we also have the certification of AWS D1.1, AWS D1.5 Bridge field specialized Certification, related tests/inspections have been done .

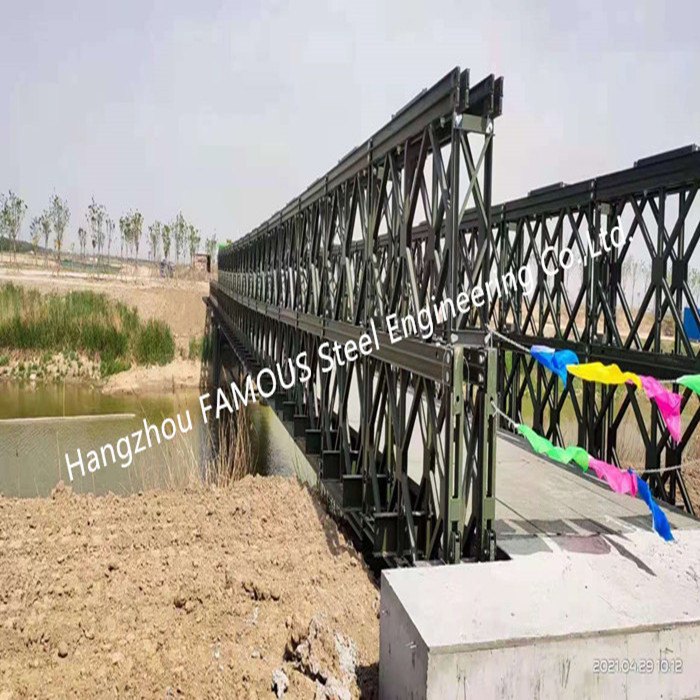

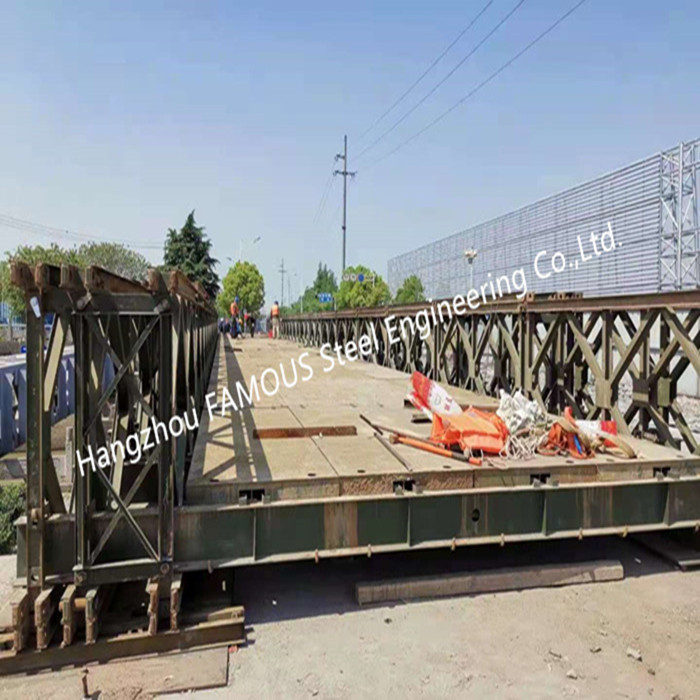

"321"steel bailey bridge is a kind of rapid assembly bridge produced and researched based on the original British bailey truss bridge and combinated with China's national conditions. "321"type Bailey bridge is the most widely used aseembled bridge,it be used in national defense, transportation engineering, municipal water conservancy projects."321" type Bailey bridge feaures simple structure,convenient transportation,fast erection,large load, good interchangeability and strong adaptability.

*The bridge deck has a net width of 4.2M
*The maximum net width of 7.35M.
*The combined span is 9-69m

About our factory’s Introduction

Jiangsu Jiuzhou Bridge Engineering Co.,Ltd.(shortly called as JBEC) lies in Huashan Village, Yaoqiao Town, New District of beautiful city-- Zhenjiang, Jiangsu Province. It covers an area of 80,000 square meters. The traffic is very convenient. It is 30 kilometers away from Changzhou Airport and five kilometers from Huning Motorway Entrance& Exit. By Train it is only 1 hour away from Shanghai, the largest city of China.

About the introduction of Bailey

Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.

Why choose us ?

Most importantly, not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence. Warmly welcome all friends and clients from International market to visit us.

If you need to know more price information ,please contact us as soon as  possible ,we will provide more details.

Our email are Nura@hfsteelstructure.com /Grace@hfsteelstructure.com.
