Heavy Structural Steel Fabrication Concrete Mill Cement Production Line Clinker Silo Hopper Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Mild Steel | Application | Cement Production Line |
---|---|---|---|
Surface Treatment | Hot Dip Galvanised | Product Name | Welding Frame Structural Steel Fabricators |
Size | As Per Client's Drawings | Type | Custom Structural Welding Fabrication |
Process | Bending,cutting,drilling | Qc | 100% Inspection On Critical Dimensions |
Color | Customized Color | Service | Metal Fabrication According To Drawings |
Feature | High Precision CNC Processing | ||
High Light | heavy structural fabrication,Concrete Mill Cement Production Line,Clinker Silo Hopper Furnace |
Concrete Mill Cement Production Line Structural Steel Fabrication Clinker Silo Hopper Furnace Support Rotary Kiln

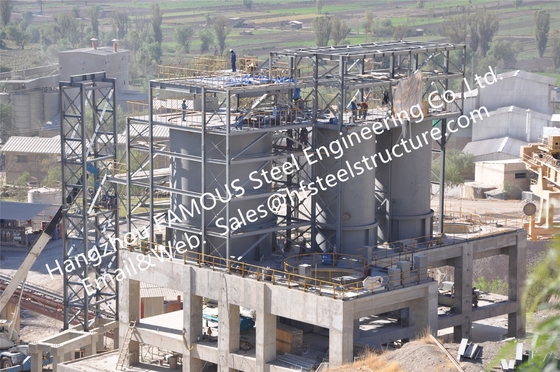

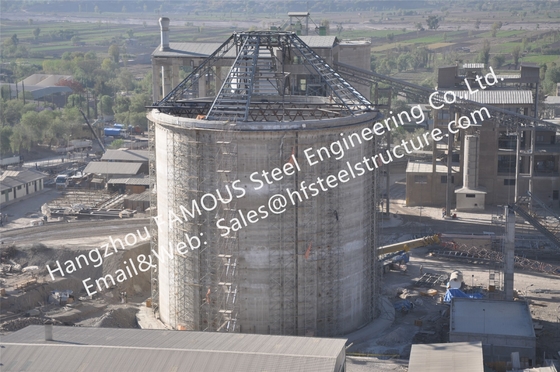

As shown, we have contracted over 5000MT Concrete Mill Cement Production Line Structural Steel Fabrication for South America customer including but not limit in various clinker silo, hoppers, furnace framing support, rotary kilns, belt conveyors and conveyor support, chutes etc.

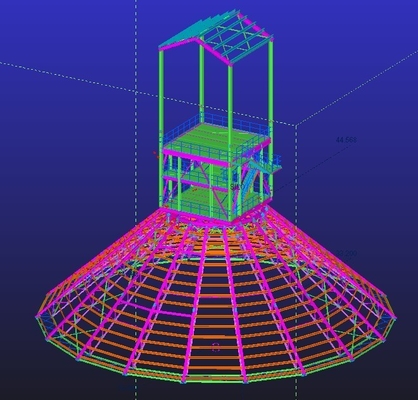

The detailing and fabricaiton quality is quite satisfactory, hopefully to receive more America standard, Europe standard, UK Australia standard etc cement production line structural steelworks fabrication enquiry too.
Regarding Cement production line equipment process flow
Introduction of cement production line
The cement production line (cement plant equipment) is a cement equipment production line composed of a series of equipment for the production of cement. It is mainly composed of crushing and pre-homogenization, raw meal preparation homogenization, preheating decomposition, cement clinker sintering, cement grinding and packaging and other processes.
Cement equipment (cement machinery) includes equipment
Cement equipment includes: cement rotary kiln, cyclone preheater, grate cooler
Cement rotary kiln is the main equipment for calcining cement clinker and has been widely used in cement, metallurgy, chemical and other industries. The equipment is composed of cylinder body, supporting device, supporting device with blocking wheel, transmission device, movable kiln head, kiln tail sealing device, combustion device and other components. The rotary kiln has the characteristics of simple structure, reliable operation and easy control of production process.
The cyclone preheater is suitable for various types of kilns (listed in the catalog). Based on the transformation, digestion and introduction of major equipment with a daily output of 800 tons and a daily output of 1,000 tons of cement clinker from Kawasaki, Japan, the 500-ton and 2,000-ton cement clinker has been developed. 5-stage suspension preheater with calciner. The preheater can be widely used in the construction and renovation of equipment in large, medium and small cement plants.
The grate cooler is a quench cooling machine. Its principle is: blowing cold air with a blower to quench the layered clinker spread on the grate, so that the temperature of the clinker drops sharply from 1200 ° C to 100 ° C Below, a large amount of cooled waste gas is removed into the kiln for secondary air.
Rotary Kiln Technical Parameters Example
