SSR Temporary Steel Truss Bridge Quick Assembly Military Bailey

Product Description

Bailey Bridge are a modular bridge system that can span up to 64 meters. Composed of steel truss panels, these elements are connected together by bolts and pins. The installation completed for panel bridges does not require any specific tools or heavy equipment, and all these elements can be handled manually by a team of 6 workers.

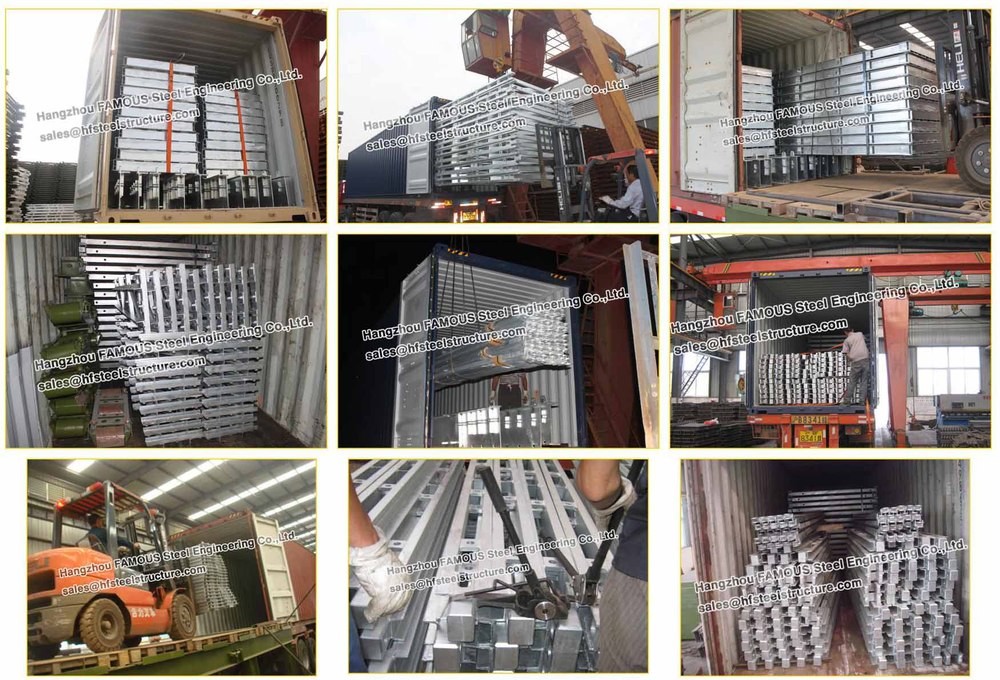

The bridge is available in a standard width of 3.15m, but also in extra-wide lane (4.20 meters), double lane (7.35 meters) and optional sidewalks. All the components are generally shipped in standard containers.

Installation of the Steel Modular Bridge:

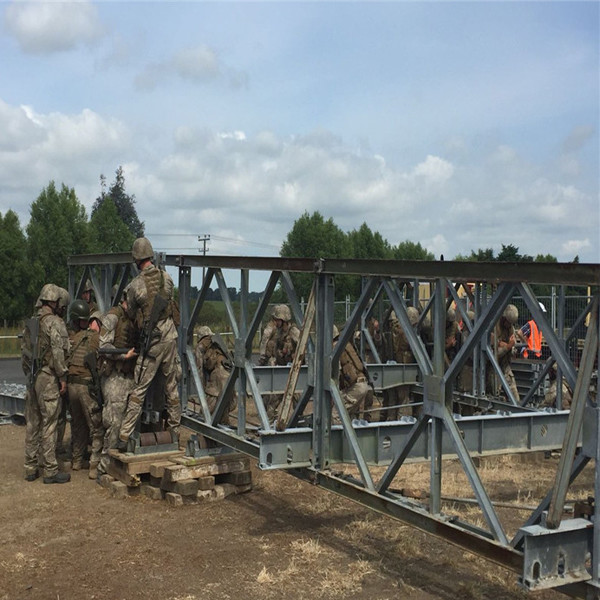

Method 1 Craning: use of certain tons capacity crane on site, which allows a quick and easy assembly and installation

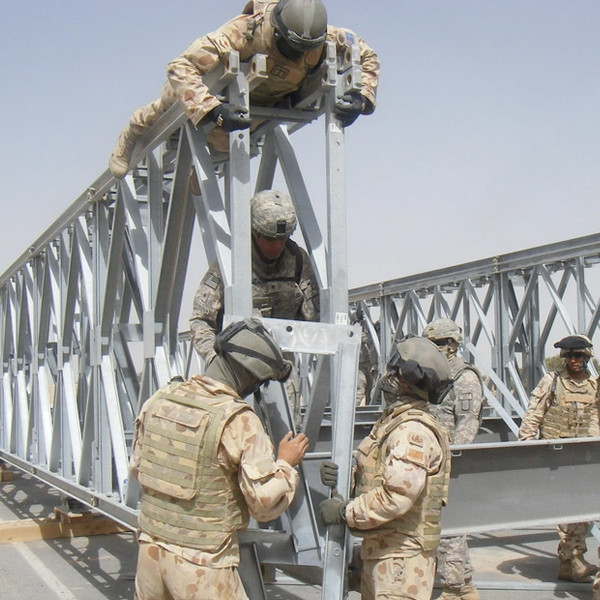

Method 2 Launching: When the site does not allow crane to work, the Panel Bridge, which can be carried by manpower, can be assembled manually and installed by launching using a pushing device with a limited capacity.

Features and applications
Longitudinal modularity – a bailey bridge can span up to 69 metres
Transversal modularity (single or double lane)
Bailey bridges are very quick and easy to install, and installation is completed either by craning or launching
Easy to transport and to store

Can be used as a;
Permanent bridge
Temporary bridge
Military bridge
Emergency bridge

Our factory owns two large production base and the capacity of each one is around 30000-40000tons per year. there are many domestic/overseas projects on the going. In addtion to ISO, we also have the certification of AWS D1.1, AWS D1.5 Bridge field specialized Certification, related tests/inspections have been done .

If you are interested to know more, please contact us in whichever means you prefer.

Email: Eva@hfsteelstructure.com
