500E Steel Reinforcing Rebar AS/NZS 4671 High Seismic Strength And Mesh Hot Rolling

AS/NZS 4671 Grade 500E Reinforcing Steel Bars and Ductile Welded Wire Fabric Mesh Equivalent

General Introduce of Steel Reinforcing Mesh

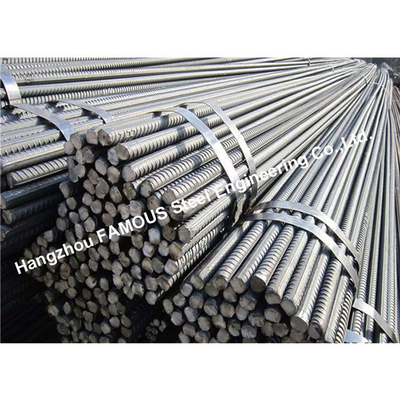

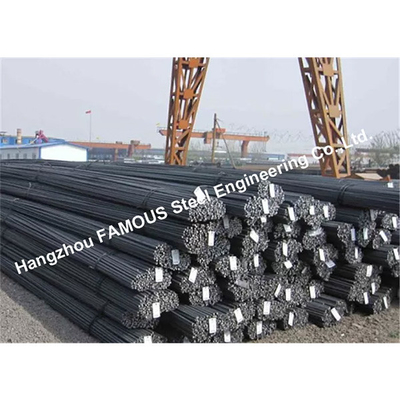

HRB500E Steel Reinforcing Mesh is micro-alloy, hot-rolled, continuously threaded reinforcing mesh which can be cut at any length.High tensile, high

ductility plain carbon steel for the reinforcing of concrete available as deformed mesh. This steel

meets the demanding requirements of the seismic structural design methods.This reinforcing derives

its superior strength and ductility by micro alloying the steel with small vanadium additions. Grade

HRB 500E steel is readily: weldable, hot or cold bent, threaded and galvanized. SGS Test Certificates

are available for every production batch of this product from us.

Specification:

3.Specified Physical Properties

Remark:Yield,ratio and elongation limits are characteristic values

4.Mass Tolerance
Specific Mass Tolerance for all bar diameters=nominal mass per meter±4.5%

5.Chemical Analysis

500mpa steel reinforcing mesh suitable for use in a variety of applications including:

1. Concrete footpaths

2. Industrial and commercial ground slabs

3. Precast Panel construction

4. Residential slabs and footings

Main Types of Reinforcing Steel Mesh

1. Square Reinforcing Mesh: commonly used in reinforced concrete slabs.

2. UTEMESH: a compact 4 m x 2 m ribbed mesh that is safe and legal to transport on utes and

small trucks without overhang.

3. Made-to-Size Mesh: a customized mesh according to client’s need.

4. Trench Mesh: typically used in residential and industrial buildings to reinforce concrete footings

and beams.

5. Rectangular Mesh: commonly used in reinforced concrete slabs such as pavements, precast

panels, warehouse and industrial shed slabs, tilt-up slabs, driveways and patio slabs.

6. Tank Mesh: designed to suit various types of concrete tank tank designs.

7. Mine Mesh: specific solutions for both coal and metalliferous mines

The Specifications of Square and Rectangular Mesh

Square Mesh

REFERENCE        STANDARD UNIT       MAINWIRE mm                    EDGE WIRE mm                CROSS WIRE mm            MASS kg

SL102                        Sheet                            9.50@200                           6.75@100                           9.50@200                       80

SL92                          Sheet                            8.55@200                             6.00@100                         8.55@200                       65

SL82                          Sheet                            7.60@200                             6.00@100                         7.60@200                        52

SL81                          Sheet                            7.60@100                             7.60@100                         7.60@100                        105

SL72                          Sheet                            6.75@200                          4.75@100                            6.75@200                         40

SL62                          Sheet                            6.00@200                          4.75@100                            6.00@200                         33

SL52                          Sheet                            4.75@200                           4.00@100                           4.75@200                         21

Rectangular Mesh

REFERENCE           STANDARD UNIT                   MAIN WIRE mm                      CROSS WIRE mm                     MASS kg

RL1218                      Sheet                                       11.90@100                                    7.6@200                                157

RL1118                      Sheet                                       10.65@100                                    7.6@200                                  131

RL1018                      Sheet                                       9.50@100                                      7.6@200                                   109

RL918                       Sheet                                        8.55@100                                      7.6@200                                     93

RL818                         Sheet                                       7.60@100                                      7.6@200                                     79

RL718                        Sheet                                        6.75@100                                      7.6@200                                     68
