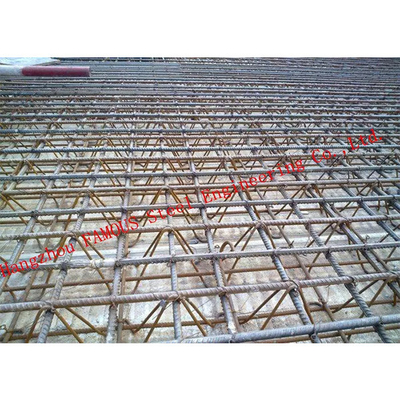

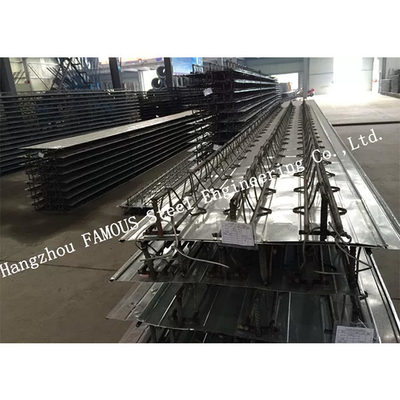

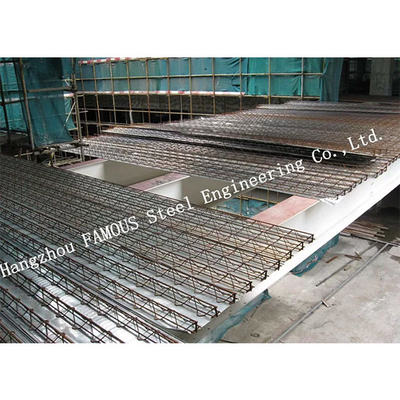

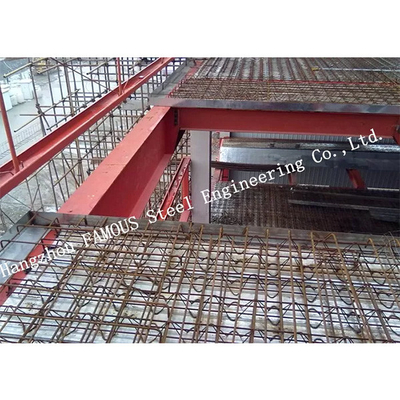

Reinforced Steel Bar Truss Deck Slab Formwork System For Concrete Floors

Reinforced Steel Bar Truss Deck Slab Formwork System for Concrete Floors Supplied from Chinese Contractor

General Introduce of Steel Reinforcing Mesh

HRB500E Steel Reinforcing Mesh is micro-alloy, hot-rolled, continuously threaded reinforcing mesh which can be cut at any length.High tensile, high

ductility plain carbon steel for the reinforcing of concrete available as deformed mesh. This steel

meets the demanding requirements of the seismic structural design methods.This reinforcing derives

its superior strength and ductility by micro alloying the steel with small vanadium additions. Grade

HRB 500E steel is readily: weldable, hot or cold bent, threaded and galvanized. SGS Test Certificates

are available for every production batch of this product from us.

500mpa steel reinforcing mesh suitable for use in a variety of applications including:

1. Concrete footpaths

2. Industrial and commercial ground slabs

3. Precast Panel construction

4. Residential slabs and footings

Main Types of Reinforcing Steel Mesh

1. Square Reinforcing Mesh: commonly used in reinforced concrete slabs.

2. UTEMESH: a compact 4 m x 2 m ribbed mesh that is safe and legal to transport on utes and

small trucks without overhang.

3. Made-to-Size Mesh: a customized mesh according to client’s need.

4. Trench Mesh: typically used in residential and industrial buildings to reinforce concrete footings

and beams.

5. Rectangular Mesh: commonly used in reinforced concrete slabs such as pavements, precast

panels, warehouse and industrial shed slabs, tilt-up slabs, driveways and patio slabs.

6. Tank Mesh: designed to suit various types of concrete tank tank designs.

7. Mine Mesh: specific solutions for both coal and metalliferous mines

The Specifications of Square and Rectangular Mesh

Square Mesh

REFERENCE        STANDARD UNIT       MAINWIRE mm                    EDGE WIRE mm                CROSS WIRE mm            MASS kg

SL102                        Sheet                            9.50@200                           6.75@100                           9.50@200                       80

SL92                          Sheet                            8.55@200                             6.00@100                         8.55@200                       65

SL82                          Sheet                            7.60@200                             6.00@100                         7.60@200                        52

SL81                          Sheet                            7.60@100                             7.60@100                         7.60@100                        105

SL72                          Sheet                            6.75@200                          4.75@100                            6.75@200                         40

SL62                          Sheet                            6.00@200                          4.75@100                            6.00@200                         33

SL52                          Sheet                            4.75@200                           4.00@100                           4.75@200                         21

Rectangular Mesh

REFERENCE           STANDARD UNIT                   MAIN WIRE mm                      CROSS WIRE mm                     MASS kg

RL1218                      Sheet                                       11.90@100                                    7.6@200                                157

RL1118                      Sheet                                       10.65@100                                    7.6@200                                  131

RL1018                      Sheet                                       9.50@100                                      7.6@200                                   109

RL918                       Sheet                                        8.55@100                                      7.6@200                                     93

RL818                         Sheet                                       7.60@100                                      7.6@200                                     79

RL718                        Sheet                                        6.75@100                                      7.6@200                                     68

Hangzhou FAMOUS Steel Engineering Co.,Ltd. focus on various structural steel

construction and steel related products supplying. Under support of structural giant Hongfeng

Industrial Group, FAMOUS received a lot of foreign projects from project engineering, fabrication,

logistic and installation guidance etc. and become more professional in foreign project operation,

specially in US EU standard engineering and project management aspects. The company covers

an area of 360,000 sq.m. with registered capital of 100 million Yuan and the total assets of 970 million

Yuan. It owns advanced professional production equipment for the all automation production line of H

type that is most advanced at home, pipe truss structure, box beam production lines, CNC hydraulic

punching posterior cutting C type steel, Z type steel production lines, vertical seam 360 degree whip

stitch roof board of hidden button type, weather board production lines and metal sandwich panel

production lines, etc.
