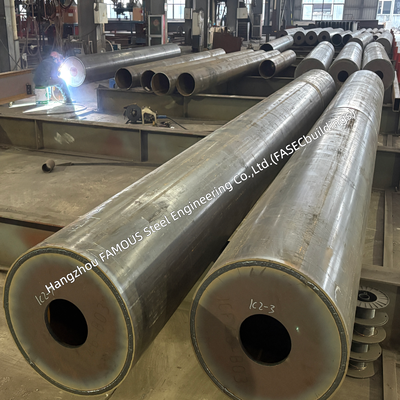

Custom Steel Pipe Columns and Tubular Structures Fabrication to AS/NZS Standards

Tubular steel structures are not just plates and sections cut and welded together. They involve rolled plate, longitudinal seams, circumferential joints, and precise end preparations — and for Australian projects, every one of those steps must be traceable to AS/NZS standards.

We fabricate pipe columns and tubular structures to your drawings, covering the full AS/NZS chain.

What We Fabricate

Standards Compliance Matrix

Manufacturing Focus: Tubular Steel

Tubular structures demand tighter control than flat-plate fabrication. Our process focuses on four critical points:

1. Cutting & End Preparation

• Precision cutting and beveling for pipe ends and connection profiles

• End preparation controlled for proper weld penetration and fit-up

2. Rolling & Forming

• Plate rolled to specified diameter with controlled roundness

• Longitudinal seams prepared and aligned for welding

3. Welding & Distortion Control

• Longitudinal and circumferential welds performed to AS/NZS 1554 qualified procedures

• Welding sequence planned to control distortion and straightness

4. Dimensional & Visual Inspection

• Pipe diameter, wall thickness and length verified against drawings

• Straightness, end squareness and hole positions checked

• Weld visual inspection and NDT as specified

​

Quality Assurance & Traceability

Every project follows a documented quality system aligned with AS/NZS 5131:

• Construction Category (CC) assessment — CC2 or CC3 as specified by the project

• ITP (Inspection and Test Plan) prepared for each project

• Traceability — material certificates, process records, welding records and NDT records maintained throughout fabrication

• Surface treatment and corrosion protection applied per project requirements

• Geometrical tolerances controlled per project specification

Note: AS/NZS 5131 certification covers different Construction Categories. We can discuss the CC level appropriate to your project and confirm the scope of coverage.

Documentation Package

Each shipment includes:

• Material Test Certificates — traceable to heat number and project mark

• WPS/PQR — AS/NZS 1554 qualified welding procedure specifications

• Welder Certificates — AS/NZS 2980 or ISO 9606.1 qualified

• Welding Coordination Records — per AS/NZS ISO 3834

• ITP Records — inspection and test plan sign-offs

• NDT Reports — visual, MT, PT, UT or RT inspection as specified

• Dimensional Inspection Records — diameter, length, straightness and hole position verification

• Surface Treatment Records — coating and corrosion protection documentation

• As-built Shop Drawings — with component marks and erection sequence

• Packing List — weights, dimensions and drawing references

Why Choose FASECbuilding?

At Hangzhou FAMOUS Steel Engineering Co., Ltd. (FASECbuilding), we bring over 20 years of experience in steel structures and fabrication and exports to more than 100 countries and regions, specialising in steel bridges, factory buildings, trusses, composite floor decking and custom steel components — with dedicated capability for Australian and New Zealand standard projects.

When you work with us, you get:

• Full AS/NZS standard chain capability — 3678, 3679, 1554, 5131 and AS 4100

• AS/NZS 5131 compliant quality system — documented and traceable

• AS/NZS 1554 qualified welding — WPS/PQR, certified welders, inspection

• Tubular steel expertise — pipe columns, trusses and custom welded pipe structures

• OEM/ODM — built to your drawings, not from a catalogue

• Export packing and worldwide shipping with full logistics support

Send us your drawings, pipe specifications and required construction category today for a free quotation and technical proposal — Hangzhou FAMOUS Steel Engineering Co., Ltd. (FASECbuilding) is ready to fabricate your steel pipe columns and tubular structures to AS/NZS standards.
