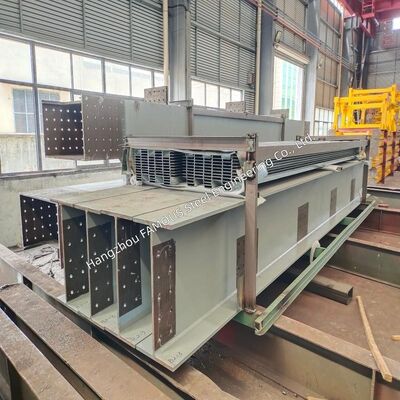

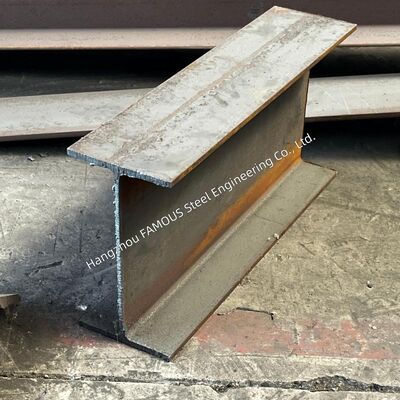

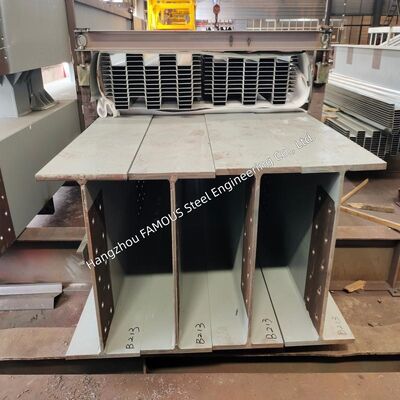

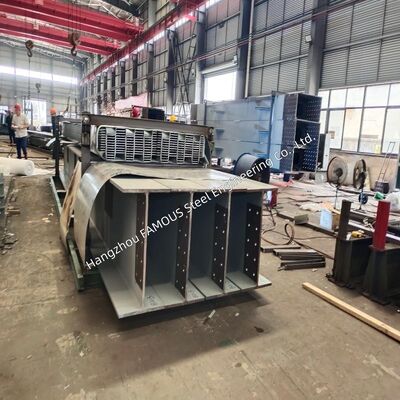

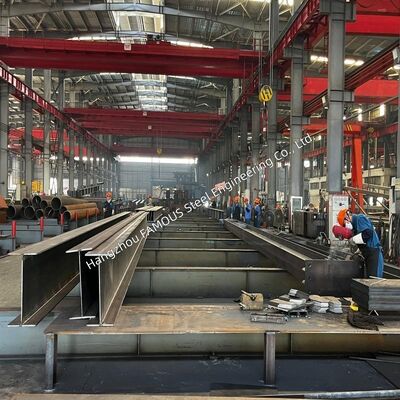

Hot rolled galvanized H beam to GB/T 11263 Q235B/Q345B with factory price
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | EN 10204 3.1/3.2 Mill Test Certificates; ISO 9001 |
| Model Number | H Beam Steel |
| Minimum Order Quantity | 1000 MT |
| Price | USD 500 – 800 / MT |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 10-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2,000 – 5,000 MT/month |
Product Details
| Standard | GB/T 11263 | Material Grades | Q235B, Q345B |
|---|---|---|---|
| Surface Treatment | Hot-dip Galvanized | Profile Series | HW, HM, HN, HP |
| Applications | High-rise Buildings, Industrial Plants, Bridges, Heavy Equipment Supports, Port Infrastructure, Foundation Piling | Customization | Customized To Project Requirements |
Product Description
Hot Rolled Galvanized H Beam is manufactured strictly in accordance with GB/T 11263. Available in Q235B and Q345B, equipped with hot-dip galvanized coating for outstanding corrosion resistance and long service life. Supplied directly from the factory at favourable prices, ideal for construction projects requiring stable structural strength and durability.
Material Grades – Q235B vs Q345B
| Parameter | Q235B | Q345B |
|---|---|---|
| Steel Type | Carbon structural steel | High-strength low-alloy steel |
| Yield Strength | ≥235 MPa | ≥345 MPa |
| Tensile Strength | 370 – 500 MPa | 470 – 630 MPa |
| Elongation | ≥26% | ≥21% |
| Impact Toughness | ≥27 J (20°C) | ≥34 J (20°C) |
| Typical Use | General structures under medium load | High-rise buildings, bridges, heavy load frames |
| Cost Level | Economical | Higher strength with moderate cost premium |
Q235B features balanced weldability, mechanical performance and cost for general engineering. Q345B has higher yield strength, suitable for heavy-load projects such as high-rise buildings and long-span bridges.
Full Compliance with GB/T 11263
All H beams follow GB/T 11263 covering dimension tolerance, technical requirements and inspection standards, including HW wide flange, HM medium flange, HN narrow flange, HP pile series. Specifications range from 100×100 mm to 900×300 mm. Each product is clearly marked with size, grade and standard, supported by official mill test certificates.
Hot-Dip Galvanized Protection
Beams adopt hot-dip galvanizing treatment. The dense zinc coating effectively resists atmospheric corrosion, moisture and chemical erosion to extend service life. The galvanized surface avoids extra on-site painting work, lowering construction and maintenance expenditure.
Structural Advantages of H-Beam Profile
• Parallel flanges and optimized cross-section deliver higher section modulus and bending resistance.- • Saves 10–15% steel consumption compared with traditional I-beams under equal load conditions.
- • Good plasticity, toughness and structural stability, applicable for seismic and vibration-sensitive buildings.
- • In steel structure buildings, it can increase usable area and reduce self-weight compared with concrete structures.
Wide Range of Applications
• High-rise commercial & residential buildings: columns, beams and floor frames
- • Industrial plants: roof trusses and crane girders
- • Bridge main girders and cross beams
- • Heavy equipment supporting bases
- • Port and transportation infrastructure supports
- • HP series steel sections for foundation piling works
Factory-Direct Pricing & Supply
Direct supply eliminates intermediate markup to offer competitive prices. Large production capacity supports orders of all volumes. We provide custom cut-to-length service to minimize on-site cutting waste. Professional logistics ensure safe packaging and global transportation.
Direct supply eliminates intermediate markup to offer competitive prices. Large production capacity supports orders of all volumes. We provide custom cut-to-length service to minimize on-site cutting waste. Professional logistics ensure safe packaging and global transportation.
Why Choose Our Galvanized H Beams?
Our hot rolled galvanized H beams meet GB/T 11263 requirements with complete material traceability. Options of Q235B / Q345B grades and reliable hot-dip galvanized anti-corrosion treatment. Factory direct sales control overall costs. Strict quality inspection guarantees stable performance for your construction projects.
Request Your Quotation Today
We accept enquiries from engineers, contractors, developers and steel processors. Our team can provide technical data, mill certificates and customized quotations to match your project demands.
Contact us now to discuss galvanized H beam solutions. Product supplied by Hangzhou FAMOUS Steel Engineering Co., Ltd., China
Contact us now to discuss galvanized H beam solutions. Product supplied by Hangzhou FAMOUS Steel Engineering Co., Ltd., China
