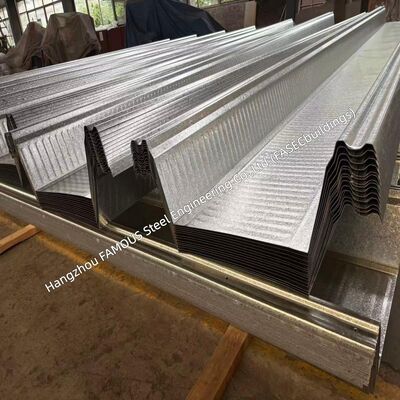

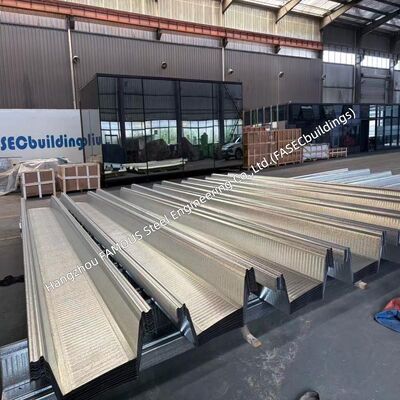

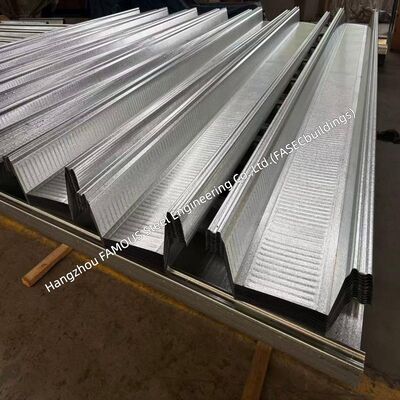

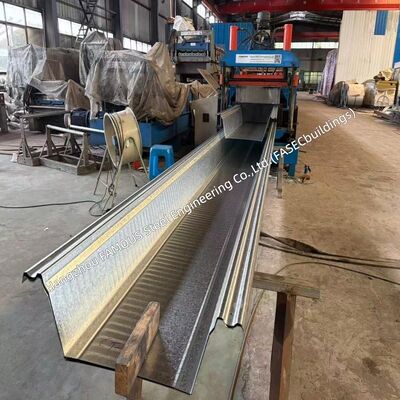

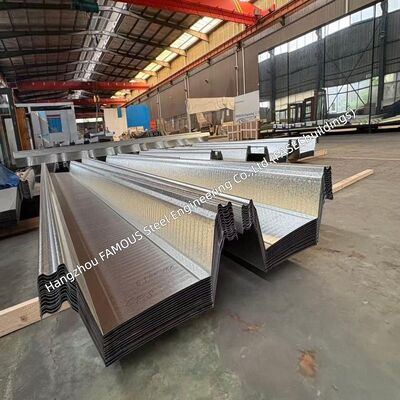

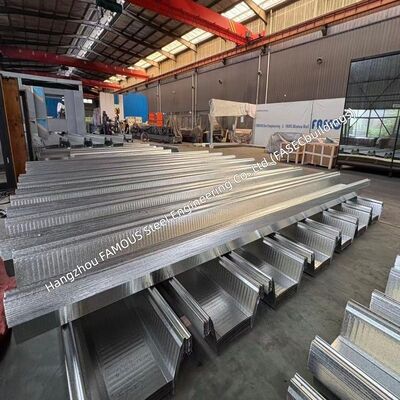

ComFlor 210 Alternative Composite Floor Deck | 6m Unpropped Span, Max 9m Propped Span

  • ComFlor 210 Alternative Composite Floor Deck | 6m Unpropped Span, Max 9m Propped Span
  • ComFlor 210 Alternative Composite Floor Deck | 6m Unpropped Span, Max 9m Propped Span
  • ComFlor 210 Alternative Composite Floor Deck | 6m Unpropped Span, Max 9m Propped Span
  • ComFlor 210 Alternative Composite Floor Deck | 6m Unpropped Span, Max 9m Propped Span
  • ComFlor 210 Alternative Composite Floor Deck | 6m Unpropped Span, Max 9m Propped Span
  • ComFlor 210 Alternative Composite Floor Deck | 6m Unpropped Span, Max 9m Propped Span
Place of Origin China
Brand Name FASEC
Certification ISO 9001; CE Marking (EN 1090-1); BES 6001; EPD (ISO 14025 / EN 15804)
Model Number Composite Floor Deck
Minimum Order Quantity 1000 MT
Price USD 15-20/SQM
Packaging Details Sea Freight (Container/Bulk Vessel)
Delivery Time 10-30 Days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 2,000 – 5,000 MT/month
Product Details
Product Name Composite Steel Floor Deck Application Commercial, Industrial, Multi-story Buildings, Bridge Construction, Slim Floor Systems
Material S350GD+Z275 Galvanized Steel Surface Finish Hot-dip Galvanized
Logistics Nestable Profile, Higher Container Loading Customization Customized To Customer Requirements
Leave a Message
Product Description
This ComFlor 210 equivalent is a deep long-span composite floor deck, ideal for commercial, industrial, multi-story building and bridge construction. Fabricated from 1.25mm S350GD+Z275 high-tensile galvanized steel (BS EN 10346 compliant), it achieves 6m unpropped span and 9m propped span, minimizing temporary supports and accelerating construction progress. Its 210mm deep rib with cross stiffeners ensures high structural efficiency and reduces raw material consumption.


Core Specifications & Advantages​


Attribute Specification Core Benefit
Material S350GD+Z275 galvanized steel, 1.25mm thickness, yield strength 350 N/mm² Superior anti-corrosion & durability, longer spans with lighter steel weight
Profile 210mm deep trapezoidal rib, cross stiffener, nestable structure High structural efficiency; larger container loading volume, lower sea freight
Span Capacity 6.0m unpropped; 9.0m propped Less temporary propping needed, faster installation & lower labor cost
Fire Performance Up to 2 hours fire rating without soffit fireproof coating Extra fireproof coating omitted, saving total project expenditure
Certifications BES 6001, EPD, Eurocode 4 & BS 5950 compliant Qualified for green buildings & global infrastructure bidding projects


Fire Resistance​​


It achieves 2-hour fire resistance with bare soffit by optimized rib structure and matched reinforcement, satisfying mainstream commercial building codes. No extra fireproof paint is demanded for 60-minute fire protection scenarios.


Slim Floor System Application​​


Mounted on the bottom flange of asymmetric beams rather than top flange, the floor slab is hidden within beam depth:

  • •Cut total building height, add one extra floor for buildings above 10 storeys
  • •Reduce facade cladding cost
  • •Pipelines arranged inside slab ribs to save floor space It also fits conventional beam top flange installation for flexible usage.


Concrete Consumption​​


Applicable slab thickness: 260mm–400mm. Its streamlined rib design consumes less concrete than ordinary floor decks, lowering dead load for foundations and main steel structures.


Sustainability & Certifications​​


Endorsed by BES 6001 responsible sourcing and EPD, eligible for BREEAM, LEED and large overseas infrastructure projects. The nestable profile raises container loading capacity to cut carbon emissions and logistics costs. Less steel and concrete input improves overall construction sustainability.


Logistics Advantage​​


Nestable trapezoidal design boosts m² quantity per bundle and container, effectively slashing transportation and handling fees, ideal for global export delivery.


Technical Support​​


Complete one-stop technical service is accessible:

  • •ComFlor design software
  • •Span & load charts
  • •BIM Revit files, engineering drawings
  • •Eurocode & BS standard design consultation


Summary​​


This ComFlor 210 equivalent is a deep long-span composite floor deck tailored for modern multi-story buildings and bridge engineering. Equipped with 6m unpropped span, 9m propped span and 2-hour bare soffit fire resistance, alongside authoritative international certifications and nestable shipping design, it ensures reliable structural performance, flexible design and cost-effective logistics. Fully compatible with slim floor systems, it optimizes building space utilization and reduces overall construction budgets.

Hangzhou FAMOUS Steel Engineering Co., Ltd. (FASECbuildings) provides customized structural calculation, professional quotation and full-range technical support for global construction projects. Contact us for complete parameters and tailored project solutions.



ComFlor 21019
