ComFlor 210 Equivalent Composite Floor Deck – Reliable Performance, Consistent Quality
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001; CE (EN 1090-1); BES 6001; EPD |
| Model Number | Composite Floor Deck |
| Minimum Order Quantity | 1000 MT |
| Price | USD 15-20/SQM |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 10-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2,000 – 5,000 MT/month |
Product Details
| Product Name | Composite Steel Floor Deck | Application | Commercial Buildings, Parking Garages, Hospitals, Industrial Plants, Bridge Construction |
|---|---|---|---|
| Material | S350GD+Z275 Galvanized Steel | Surface Finish | Hot-dip Galvanized |
| Logistics | Nestable Profile, Higher Container Loading | Customization | Customized To Customer Requirements |
Product Description

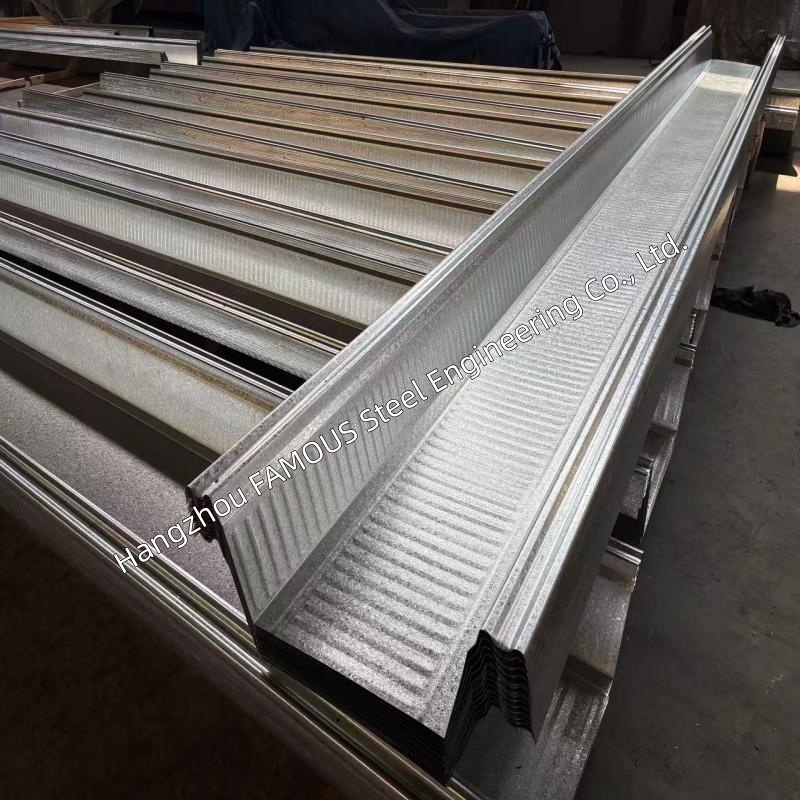

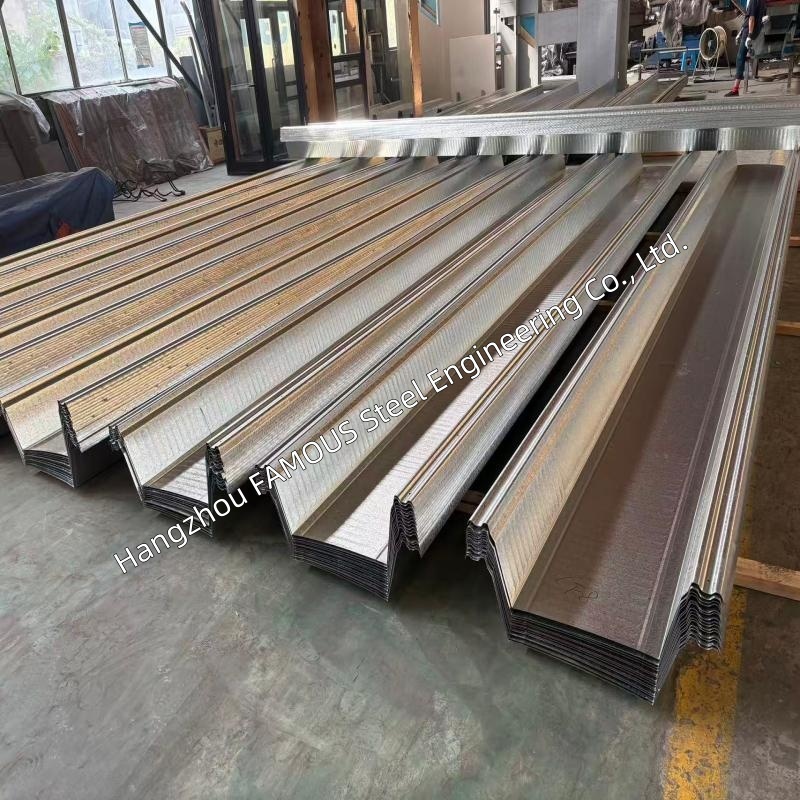

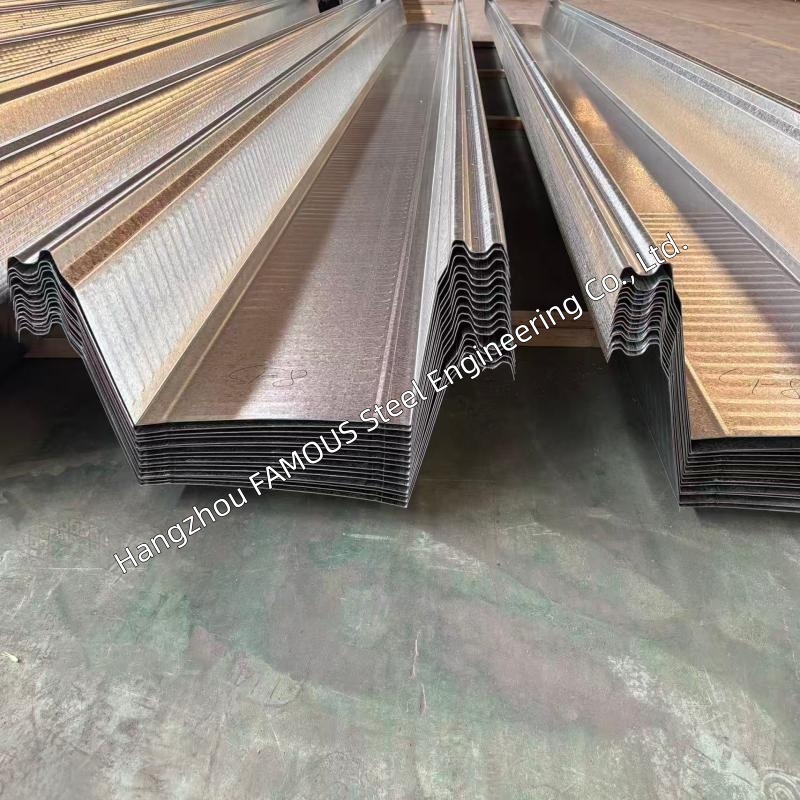

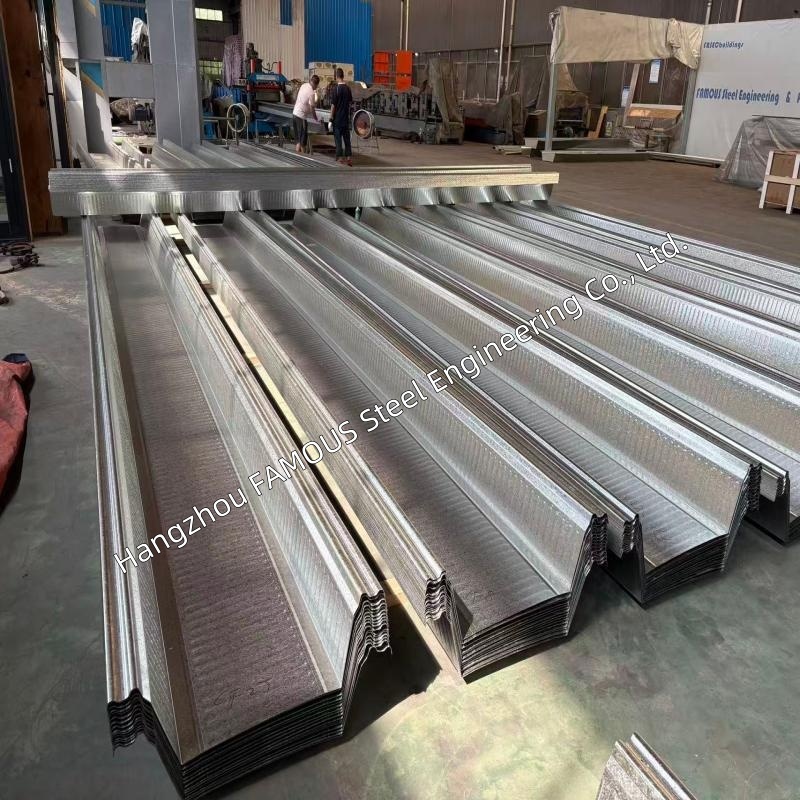

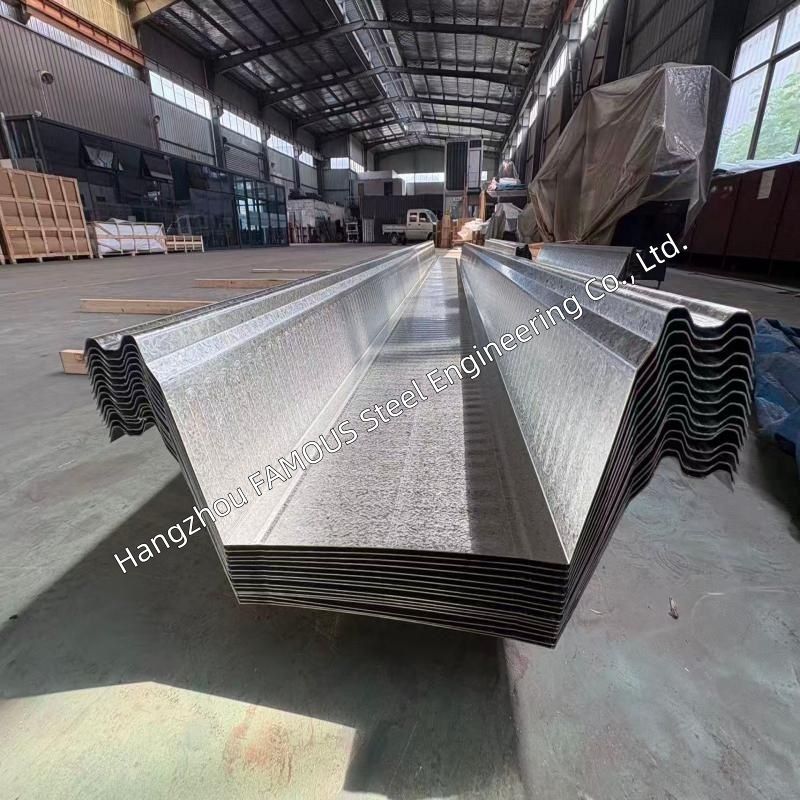

The ComFlor 210 Equivalent Composite Floor Deck is a premium structural flooring solution for steel-framed construction. Its 210mm deep trapezoidal profile with cross and longitudinal stiffeners ensures high structural efficiency and stable concrete composite action. Manufactured from Z275 high-strength galvanized steel, it delivers excellent spanning performance, 2-hour fire resistance and long-term service durability. Fully designed and analyzed in compliance with Eurocode 4 and BS5950, it satisfies the rigorous performance standards of global engineers and contractors.
Consistent Quality – Certified Manufacturing
• Manufactured to ISO 9001 & BS EN ISO 14001 management standards- • Raw material: BS EN 10346 S280GD+Z275 high‑strength galvanized steel
- • Z275 hot‑dip galvanized coating (275g/m² both sides) ensures corrosion resistance
- • Mill test certificates and full material traceability provided for each shipment
Specification
| Parameter | Details |
|---|---|
| Material & Coating | High‑strength galvanized steel BS EN 10346 S280GD+Z275, Z275 coating 275g/m² both sides |
| Profile Geometry | 210mm deep trapezoidal with cross and longitudinal stiffeners; 600mm cover width; nestable for compact stacking |
| Thickness | Standard 1.25mm; 1.0mm optional |
| Span Performance | Unpropped up to 6.0 metres; propped over 8.5 metres |
| Fire Resistance | Up to 2 hours fire rating with unprotected soffit |
| Reinforcement | Single bar per trough + anti‑crack mesh near slab top |
| Design Compliance | Eurocode 4, BS5950, AS1397; supported by ComFlor® 9.0.34 design software |
| Quality Certification | ISO 9001, BS EN ISO 14001 |
Superior Span Performance – Reliable Long‑Span Capability
ComFlor 210 Equivalent achieves unpropped spans up to 6.0 metres and propped spans over 8.5 metres. High moment of inertia and section modulus control deflection and enable wider beam spacing, cutting structural steel consumption. Spanning performance is validated by testing and supported by ComFlor® design software.
Fire Resistance – Proven Protection
It reaches 60‑minute fire rating without extra fire protection. Proper slab depth and reinforcement realise up to 2‑hour fire rating for unprotected soffit. Fire design considers reinforcement tensile performance, complies with Eurocode 4 and BS5950 for reliable fire‑safety performance.
Composite Action – Reliable Structural Integration
• Optimised profile creates solid composite behaviour with cast‑in‑situ concrete slab- • Trough reinforcing bars plus top anti‑crack mesh enhance slab strength and fire performance
- • Cross‑longitudinal stiffeners improve load transfer between steel deck and concrete
- • Forms integrated structural unit, performance validated through long‑term engineering tests
Nestable Design – Reliable Logistics
Nestable trapezoidal shape increases loading quantity per bundle, saving nearly 30% container volume for export transport. Secure steel‑banded bundles with clear labels simplify site tracking. It effectively lowers transport and handling costs for worldwide projects.
Why Choose ComFlor 210 Equivalent ?
This ComFlor 210 equivalent features stiffener‑enhanced structure, long‑span capacity, up‑to‑2‑hour fire resistance and ISO‑certified quality. Suitable for multi‑storey commercial buildings, parking garages, hospitals, industrial plants and bridge construction, it offers reliable performance for engineers and contractors.
Contact us today for project‑oriented documentation, design calculation and technical advice to match your project requirements.
Packaging & Shipping
Secure steel‑banded bundles; nestable design saves ~30% container space. Clear identification labels for traceability. Waterproof packaging available for sea freight. Custom cutting per drawings reduces on‑site waste. Mainly loaded in 40ft containers or bulk shipment; custom packaging solutions are acceptable.
After‑Sales Service
• Supply mill test certificates, datasheets and installation guides- • Design support: ComFlor software access, span‑load & fire‑design consultation
- • On‑site installation guidance and troubleshooting
- • Full material traceability & compliance documents for project approval
- • 24/7 technical support during construction
Company Profile
Hangzhou FAMOUS Steel Engineering Co., Ltd. is a Chinese professional manufacturer supplying high‑quality composite floor decking for global construction industry. Annual output reaches 15000 tonnes. Products comply with Eurocode 4, BS5950, AS1397. We fulfil bulk orders with stable quality and competitive pricing. Our products have been delivered to multiple overseas projects, recognised for reliable quality and responsive service. We look forward to becoming your trusted partner.
