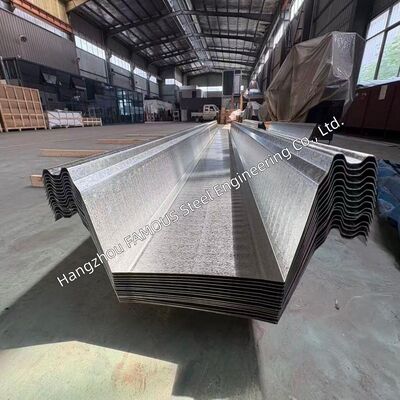

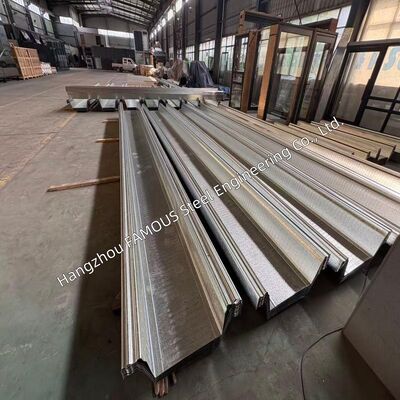

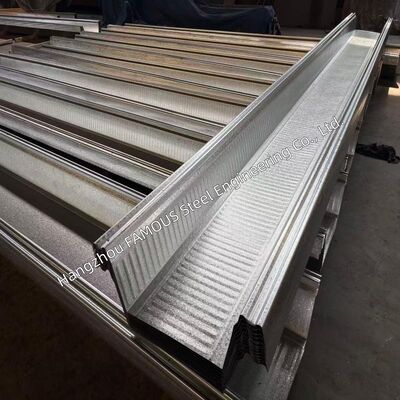

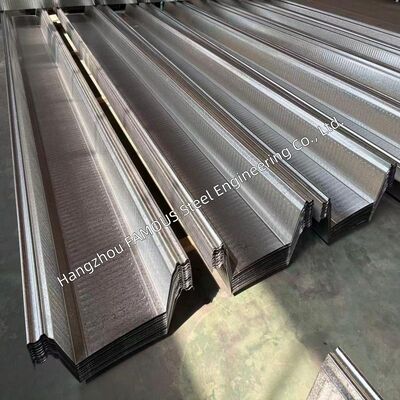

ComFlor 210 Equivalent Heavy-Duty Composite Deck for Demanding Industrial Floors
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001; CE (EN 1090-1); BES 6001; EPD |
| Model Number | Composite Floor Deck |
| Minimum Order Quantity | 1000 MT |
| Price | USD 15-20/SQM |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 10-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2,000 – 5,000 MT/month |
Product Details
| Product Name | Composite Steel Floor Deck | Application | Commercial Buildings, Parking Garages, Hospitals, Industrial Plants, Bridge Construction |
|---|---|---|---|
| Material | S350GD+Z275 Galvanized Steel | Surface Finish | Hot-dip Galvanized |
| Logistics | Nestable Profile, Higher Container Loading | Customization | Customized To Customer Requirements |
Product Description
The ComFlor 210 Equivalent Heavy‑Duty Composite Deck is engineered for high-demand industrial facilities, including warehouses, distribution centers and manufacturing plants. Its 210mm deep steel profile with integrated cross and longitudinal stiffeners delivers exceptional structural rigidity, reliably withstanding heavy wheel loads and industrial racking pressures. Capable of long clear-span performance, it integrates superior structural strength, certified fire resistance and durable corrosion protection, making it an ideal flooring solution for all types of industrial construction projects.
Heavy‑Duty Structural Design
• Cross and longitudinal stiffeners ensure high rigidity and even load distribution- • High section modulus withstands forklift traffic, racking, machinery and dynamic loads
- • 210mm deep trapezoidal profile improves composite action with concrete
- • Resists deformation and maintains long‑term service performance for industrial floors
High‑Strength Galvanized Material
Made from AS1397 G500 / S280GD+Z275 high‑strength galvanized steel. Z275 hot‑dip galvanized coating (275g/m² both sides) offers excellent corrosion resistance against moisture and chemicals. No on‑site painting required, lowering long‑term maintenance work.
Long‑Span Capability – Clear Industrial Floors
Unpropped spans up to 6.0 metres, propped spans over 8.5 metres. Wider column spacing creates unobstructed floor zones for storage and equipment layout. Reduced support beams save steel cost and accelerate site erection.
Specification
| Parameter | Details |
|---|---|
| Material | High‑strength galvanized steel AS1397 G500 / BS EN 10346 S280GD+Z275 |
| Coating | Hot‑dip galvanized Z275, 275g/m² both sides for industrial anti‑corrosion |
| Profile Depth | 210mm deep trapezoidal with cross and longitudinal stiffeners |
| Cover Width | 600mm |
| Thickness | Standard 1.25mm (custom gauges available) |
| Unpropped Span | Up to 6.0 metres |
| Propped Span | Over 8.5 metres |
| Fire Rating | 60 minutes without protection; up to 2 hours with sufficient slab depth |
| Composite Reinforcement | Single bar per trough + anti‑crack mesh near slab top |
| Compliance | Eurocode 4, BS5950, AS1397 |
Industrial‑Grade Composite Action
• Optimized profile forms strong composite assembly with cast‑in‑situ concrete- • Reinforcing bars plus anti‑crack mesh enhance slab strength under heavy point loads
- • Stiffeners improve load transfer between steel deck and concrete
- • Handles static and dynamic loads from rack feet and material‑handling vehicles
Fire Resistance – Industrial Safety Compliance
60‑minute fire rating without additional fire protection. Up to 2‑hour rating achievable with proper slab depth and reinforcement. Meets industrial building codes and avoids extra cost for spray‑on fireproofing.
Reduced Concrete Usage – Industrial Efficiency
Reduces concrete consumption without sacrificing load capacity. A 270mm composite slab equals concrete usage of a 115mm solid slab; 350mm composite slab equals 195mm solid slab. Lower dead load for structure and foundation, cuts material cost and carbon footprint.
Quick Installation – Minimizing Industrial Downtime
Pre‑engineered sheets with simple fixing enable fast laying on steel frames. Provides immediate safe working platform for concrete pouring and follow‑on trades. Covers large floor areas efficiently and shortens project lead‑time for tight commissioning schedules.
Why Choose ComFlor 210 equivalent for Industrial Floors?
ComFlor 210 equivalent heavy‑duty composite deck delivers robust strength, long‑span performance, galvanized corrosion protection and proven fire resistance for warehouses, factories and heavy‑duty projects. Optimized steel & concrete consumption brings cost‑effective construction with zero performance compromise.
Contact us today for industrial floor load calculation and design support. Our technical team provides project‑tailored advice to meet your heavy‑duty flooring requirements.
