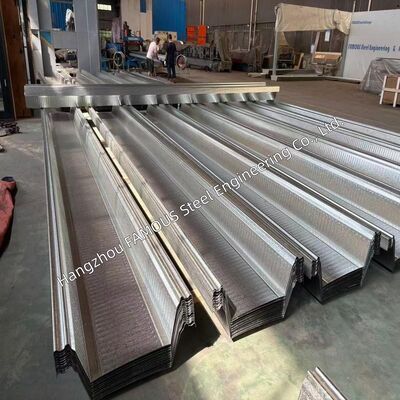

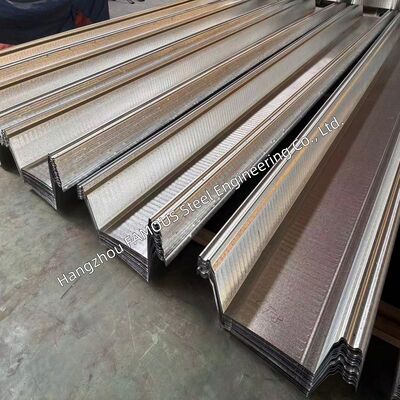

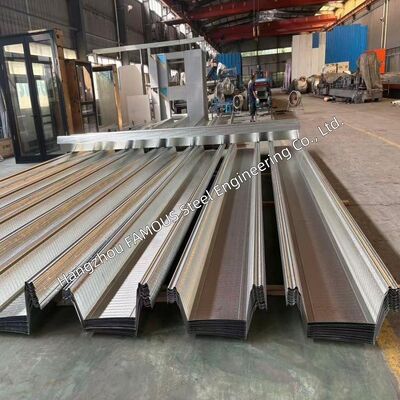

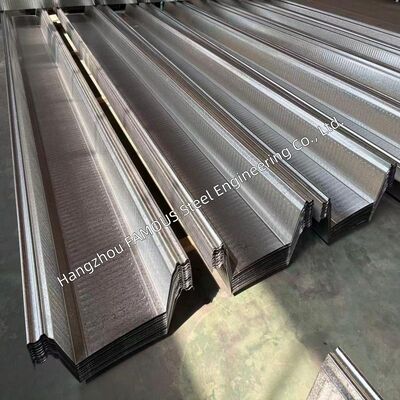

ComFlor 210 Alternative Steel Floor System – Optimized for Fast, Safe Construction
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001; CE (EN 1090-1); BES 6001; EPD |
| Model Number | Composite Floor Deck |
| Minimum Order Quantity | 1000 MT |
| Price | USD 15-20/SQM |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 10-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2,000 – 5,000 MT/month |
Product Details
| Product Name | Composite Steel Floor Deck | Application | Multi-storey Steel-framed Buildings, Commercial & Industrial Floors |
|---|---|---|---|
| Material | S350GD+Z275 Galvanized Steel | Surface Finish | Hot-dip Galvanized |
| Logistics | Nestable Profile, Higher Container Loading | Customization | Customized To Customer Requirements |
Product Description
The ComFlor 210 Alternative Steel Floor System is a pre-engineered composite decking solution engineered for speedy installation and superior jobsite safety. Manufactured from high-strength galvanized steel featuring a 210mm deep trapezoidal profile, it can be quickly and easily mounted on steel frames, forming a secure working platform instantly for subsequent construction works. Factory pre-cut lengths, hassle-free fastening methods and outstanding long-span performance reduce the demand for supporting beams, significantly shortening construction periods while complying with strict safety criteria.
Pre‑Engineered for Efficiency
ComFlor 210 Alternative sheets are factory‑cut to length per project specifications and delivered ready‑for‑installation. It removes on‑site cutting work, lowering labour input, material waste and cutting‑related hazards. Pre‑marked fixing points together with self‑aligning side laps support fast, accurate fitting without repeated measuring. Its nestable shape allows compact stacking, cutting transport volume by nearly 30% and lowering freight costs.
ComFlor 210 Alternative sheets are factory‑cut to length per project specifications and delivered ready‑for‑installation. It removes on‑site cutting work, lowering labour input, material waste and cutting‑related hazards. Pre‑marked fixing points together with self‑aligning side laps support fast, accurate fitting without repeated measuring. Its nestable shape allows compact stacking, cutting transport volume by nearly 30% and lowering freight costs.
Fast, Simple Fixing System
• Sheets are secured with powder‑actuated pins or self‑drilling screws- • Standard requirement: two fixings per sheet at ends, one fixing at intermediate supports
- • Side laps stitched at 350mm centres with pre‑marked hole locations
- • No complex bolting or welding; low demand for operator training and tools
- • Installation crews can cover large floor areas efficiently with simple operations
Immediate Safe Working Platform
• Instant secure surface once sheets are laid and fixed to serve as working platform- • No temporary scaffolding or formwork, removing extra hazards and setup time
- • Broad top surface delivers stable footing and reduces slip‑trip risks
- • Edge protection compatible for fast installation of perimeter guarding
- • Concrete, MEP and fit‑out trades can start immediately, shortening overall project schedule
Long‑Span Capability – Fewer Beams, Faster Erection
The 210mm deep profile fitted with cross and longitudinal stiffeners delivers unpropped spans up to 6.0 metres and propped spans exceeding 8.5 metres. Improved spanning performance reduces the quantity of support beams, lessening workload for beam fabrication, delivery, positioning and fastening. Fewer steel members accelerate erection progress, decrease crane occupancy and simplify framing coordination. This advantage is especially prominent for large floor plates, where faster steel erection brings earlier project completion.
Specification
| Parameter | Details |
|---|---|
| Material & Coating | High‑strength galvanized steel AS1397 G500 / S280GD+Z275 with Z275 hot‑dip galvanized coating (275g/m² both sides) |
| Profile Depth & Cover Width | 210mm deep trapezoidal with cross and longitudinal stiffeners; 600mm cover width |
| Thickness | Standard 1.25mm (custom gauges available) |
| Span Performance | Unpropped up to 6.0 metres; propped over 8.5 metres |
| Fire Rating | 60 minutes without protection; up to 2 hours with added slab depth |
| Fixings | Powder‑actuated pins or self‑drilling screws; side laps stitched at 350mm centres |
| Compliance | Eurocode 4, BS5950, AS1397 |
Accelerated Workflow – Follow‑On Trades Start Immediately
ComFlor 210 Alternative forms a safe and stable platform right after installation, allowing subsequent trades to proceed without delay. Concrete pouring can be performed with no formwork erection or stripping. MEP teams can carry out rough‑in work on‑site. Overlapping construction activities compress total project timeline, cutting site overhead, labour expense and financing cycle, creating tangible economic benefits for developers and main contractors.
Inherent Fire Resistance – No Added Protection Required
ComFlor 210 Alternative achieves a 60‑minute fire rating without additional fire protection for steelwork or deck. Fire performance can reach up to 2 hours with proper slab depth and reinforcement layout. Built‑in fire resistance saves cost, man‑hours and schedule delays caused by spray‑on fireproofing or intumescent coatings. One whole construction step is eliminated to push forward subsequent site works.
ComFlor 210 Alternative achieves a 60‑minute fire rating without additional fire protection for steelwork or deck. Fire performance can reach up to 2 hours with proper slab depth and reinforcement layout. Built‑in fire resistance saves cost, man‑hours and schedule delays caused by spray‑on fireproofing or intumescent coatings. One whole construction step is eliminated to push forward subsequent site works.
Packaging & Shipping
ComFlor 210 Alternative is bundled securely with steel banding for safe transit. The nestable design maximizes square meterage per container and reduces shipping costs by nearly 30%. Each bundle carries clear labels for easy tracking. Waterproof packaging is available for sea freight. Custom cutting service follows construction drawings to minimize on‑site waste.
After‑Sales Service
We deliver comprehensive after‑sales support: technical documentation including mill certificates, datasheets and installation guides; design support with ComFlor software and engineering consultation; on‑site installation guidance and troubleshooting; quality assurance with full traceability and compliance documents; 24/7 technical support throughout the whole construction phase.
We deliver comprehensive after‑sales support: technical documentation including mill certificates, datasheets and installation guides; design support with ComFlor software and engineering consultation; on‑site installation guidance and troubleshooting; quality assurance with full traceability and compliance documents; 24/7 technical support throughout the whole construction phase.
Company Profile
Hangzhou FAMOUS Steel Engineering Co., Ltd. is a professional steel manufacturer and supplier located in China, focusing on premium composite floor decking for global construction markets. Supported by advanced roll‑forming equipment, strict quality management and large‑volume production capacity, our products satisfy international standards including Eurocode 4, BS5950, AS1397, NZS3404. ComFlor 210 decking has been supplied to multiple overseas projects, gaining recognition for reliable quality and responsive service. We look forward to becoming your trusted partner.
