Permanent Formwork & Structural Deck – ComFlor Equivalent, Factory Price

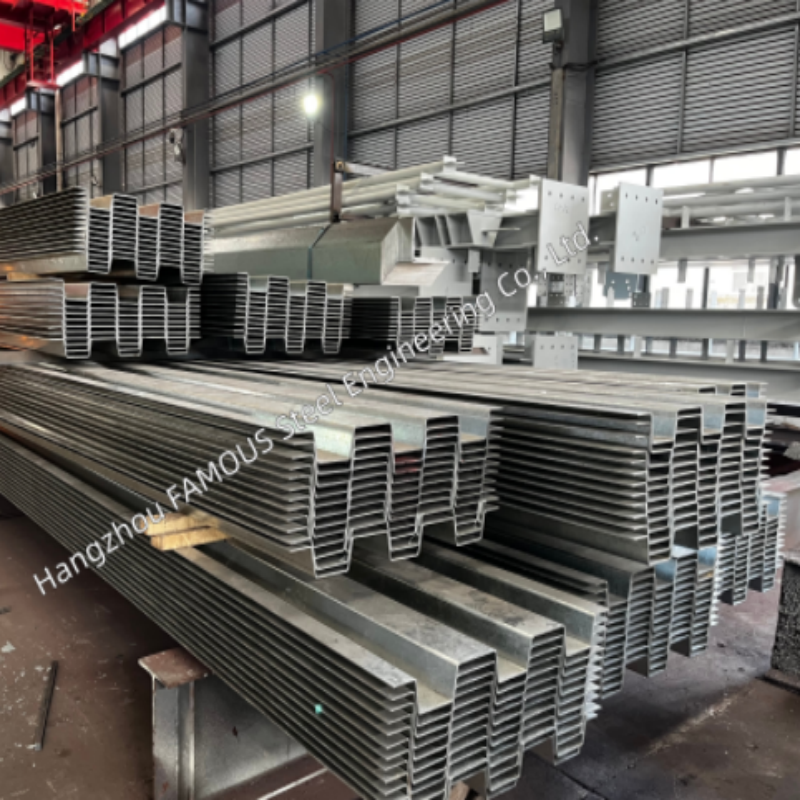

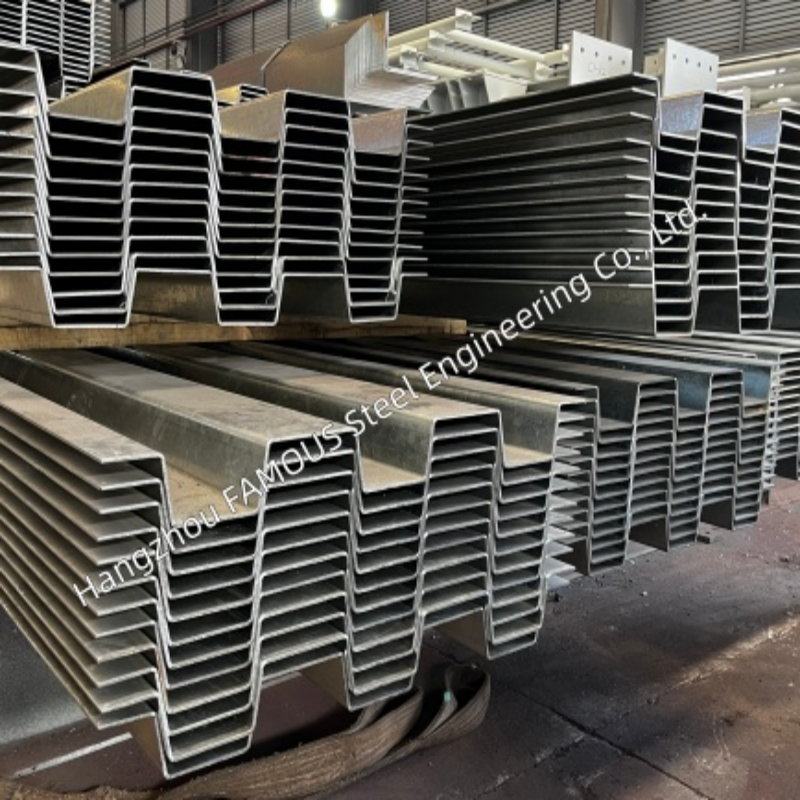

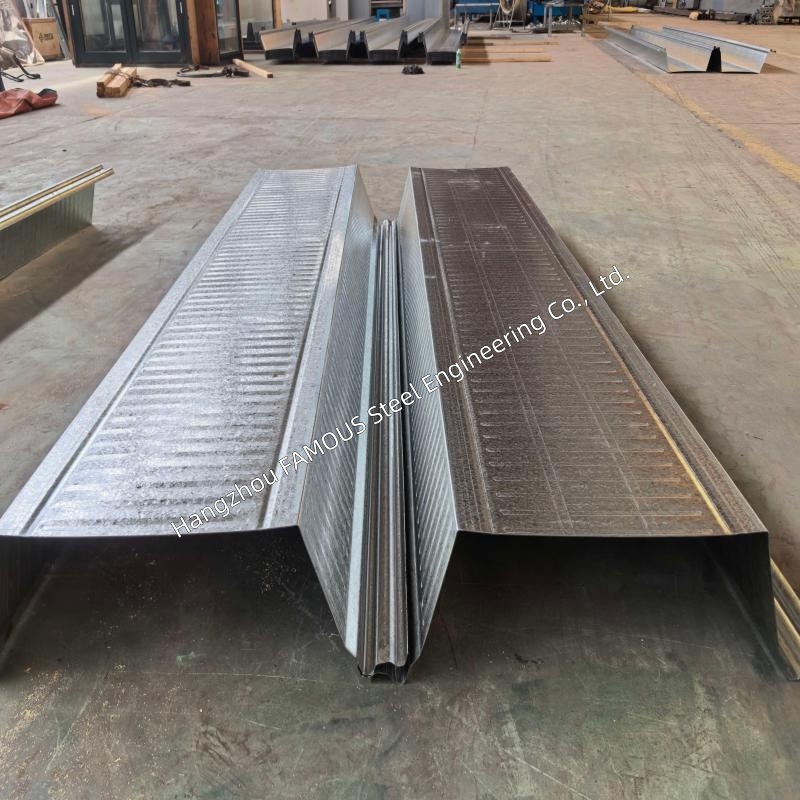

The ComFlor 60 and 210 equivalent composite steel decks serve a dual function – they act as permanent formwork during concrete pouring and as structural reinforcement in the finished composite slab, working compositely with the concrete to carry design loads. Engineered to deliver identical performance characteristics as the original ComFlor profiles, our equivalents offer the same spanning capability, load capacity, and fire resistance – at a factory-direct price that delivers exceptional value. Manufactured from S350GD+Z275 high-tensile steel with a heavy 275g/m² galvanized coating, these decks provide superior corrosion resistance and long-term durability for buildings and infrastructure projects. The closed-rib profile ensures excellent composite action with concrete, while the nestable design reduces transport volume and speeds up installation.

Performance & Structural Features

Dual Function – Formwork & Reinforcement
– Serves as permanent formwork, eliminating the need for traditional timber or temporary shuttering
– Acts as structural tensile reinforcement in the composite slab, working with concrete to resist bending and shear
– Reduces material waste, labour time, and overall construction cost
Spanning Capability
– CF60 equivalent: unpropped spans up to 4.5 metres; CF210 equivalent: unpropped up to 6.0 metres, propped exceeding 8.5 metres
– Minimizes temporary propping and secondary beam requirements
Composite Action
– Central shear stud placement in troughs ensures full shear transfer between steel and concrete
– Closed rib profile delivers high longitudinal shear resistance for efficient load sharing
Fire Performance
– Achieves up to 120-minute fire rating (R120) with zero soffit protection – simply adjust concrete cover thickness
– Eliminates cost of fire retardant paints or spray-applied coatings
Material & Cost Efficiency
– Profile shape minimizes concrete volume per square metre, reducing dead load and material cost
– CF210 equivalent: 270mm deep slab uses concrete equivalent to a solid 115mm slab
Handling & Logistics
– 600mm cover width – lightweight sheets for safe manual handling per HSE guidelines
– Nestable stacking – more m² per bundle, lower shipping costs and crane time

Technical Specifications – ComFlor 60 & 210 Equivalents

Full load/span tables and section property data (ultimate moment capacity, shear resistance, deflection) available upon request for all thicknesses.

Applications

• Multi-Storey Buildings – Offices, residential towers, student accommodation, apartments – where fast construction and cost control are priorities
• Multi-Storey Car Parks – Heavy vehicle traffic requiring durable, high-load-capacity flooring
• Healthcare & Education – Hospitals, schools, colleges – fast-track projects with long clear spans
• Bridge Walkways & Pedestrian Infrastructure – Footbridges, station platforms, walkways – lightweight and rapid installation
• Warehouse Mezzanines – Industrial storage and additional floor space in existing facilities
• Slimdek-Compatible Framing – CF210 equivalent works with asymmetric beam systems for shallow floor zones and reduced building height

Quality Assurance & Code Compliance

All ComFlor equivalent decks are designed and tested in accordance with:

• • Eurocode 4 (BS EN 1994-1-1) – Design of composite steel and concrete structures

• • BS 5950 – Structural use of steelwork in building

• • CE Marking – Compliant with European Construction Product Regulation (CPR)

• • AU/USA building codes – Accepted for international projects, with full documentation for code submittal
  Our manufacturing processes are certified under ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Health & Safety). We provide mill test certificates, inspection reports, and full material traceability for every production batch.

Why Choose Our ComFlor Equivalent?

Permanent Formwork + Structural Deck – One Product, Two Functions – Eliminates the cost and waste of traditional formwork while providing structural reinforcement – a complete flooring solution in one system.
Factory-Direct Pricing – No middlemen. Our high-volume production delivers competitive pricing without compromising steel grade, coating weight, or profile precision.
Proven Equivalent Quality – Our decks are engineered equivalents – same dimensions, materials, and structural performance as original ComFlor profiles. Full compatibility with existing design details, shear stud layouts, and connection systems.
Reliable Supply – Continuous manufacturing ensures stable supply for large orders (tens of thousands of m²) with consistent lead times.
Technical Support – Load/span tables, section property data, and installation guides provided for engineers and contractors.
Global Shipping – Professional packaging for damage-free delivery; full logistics support for door-to-door worldwide service.

ComFlor 60/210 equivalents – permanent formwork and structural deck in one. Factory price. Heavy galvanized. AU/USA compliant.

Contact our sales team for quotes, technical datasheets, samples, or project discussion. High volume – ready to ship.

—— Manufactured by Hangzhou FAMOUS Steel Engineering Co., Ltd. (FASECbuilding)
