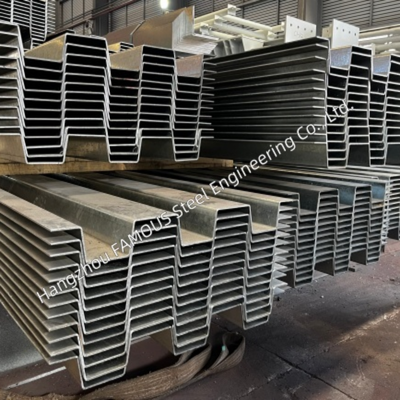

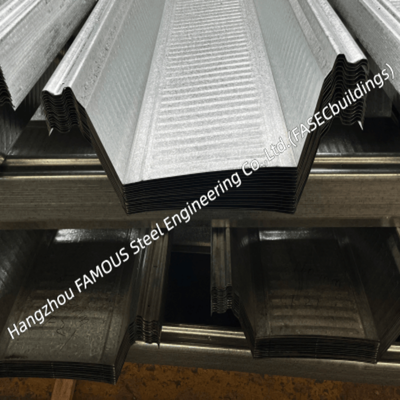

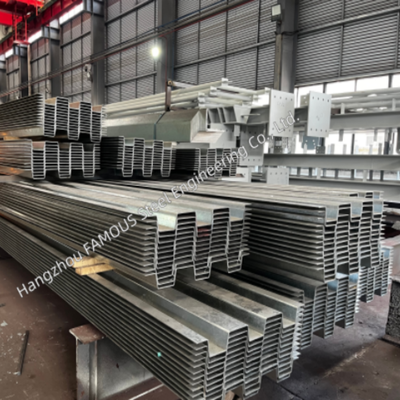

AS/NZS 1397 Hot-Dip Galvanized Bridge Deck Panels – Cost-Effective ComFlor Equivalent

Our AS/NZS 1397 Hot‑Dip Galvanized Bridge Deck Panels are precision‑rolled to deliver a cost‑effective ComFlor equivalent for steel bridge deck construction. All production follows the requirements of Australian Standard AS/NZS 1397 for continuous hot‑dip metallic coated steel, adopting high‑tensile steel grades up to G550. Profiles match the exact dimensional geometry of ComFlor 60, 80 and 210, permitting direct product substitution without structural‑frame redesign. Deployed as permanent bridge deck formwork, these panels create a safe working platform on‑site, reduce reliance on temporary shoring, accelerate construction sequences and lower overall project expenditure.


1. AS/NZS 1397 Material Regulatory Compliance

Material quality is underpinned by strict adherence to AS/NZS 1397. This standard defines clear requirements for forming grades, structural steel grades and zinc coating classification. We source independently certified steel coils with full material traceability, delivering consistent mechanical performance. This gives confidence to design engineers and main contractors operating across Australia, New Zealand and other territories adopting Australasian material specifications.


2. High‑Tensile Steel Grades & Structural Behaviour

Panels are cold roll‑formed from high‑strength structural steel to achieve robust spanning performance. Available grades cover G250 through G550, with yield strength ranging 250 MPa‑550 MPa. The base material safely supports wet concrete weight plus site construction imposed loads with controlled deflection. Favourable strength‑to‑weight ratios improve overall structural efficiency, reduce secondary steel member quantities and bring down total structural dead‑load.


3. Technical Specifications

Below are core technical parameters for our ComFlor‑equivalent deck panels. All entries can be adjusted to satisfy project‑specific load and unpropped‑span calculations:

4. Drop‑In Substitution Functional Benefit

Our panels are built for true drop‑in replacement of ComFlor series products. Rib pitch, depth and connection interfaces follow original reference dimensions exactly. Contractors can swap over to our panels without re‑running structural load checks, re‑sizing secondary beams or revising welding connection details. This high degree of interchangeability resolves procurement bottlenecks and delivers a dependable alternative supply route for international projects.


5. Permanent Formwork & Composite Structural Action

Acting as permanent bridge deck shuttering, the panels perform two key roles: they carry wet concrete during the pouring phase and participate structurally within the completed composite deck assembly. The steel section delivers tensile reinforcement whilst the concrete topping carries compressive forces, forming a highly efficient composite floor system. This integrated solution shortens site programme and removes hazardous temporary formwork stripping work, improving overall construction‑site safety performance.


6. High‑Performance Galvanized Corrosion Protection

Each panel undergoes full hot‑dip galvanizing to support multi‑decade low‑maintenance operation. The homogeneous zinc layer forms a physical barrier resisting moisture, de‑icing salts and airborne contaminants, alongside sacrificial cathodic protection for cut edges and minor surface damage. Even within corrosive coastal and industrial environments, structural integrity is preserved, lowering whole‑life maintenance and renewal costs.


7. Precision Production & In‑House Quality Assurance

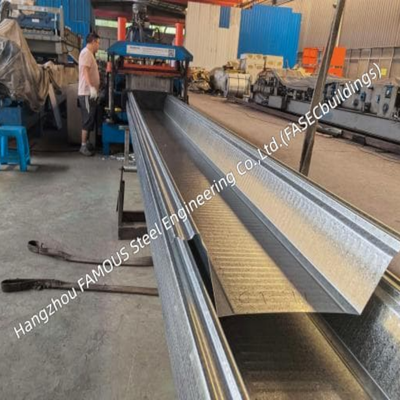

Our workshop runs modern CNC roll‑forming equipment maintaining tight dimensional tolerances. Every production batch passes multi‑stage inspection including thickness validation, coating mass audit and profile geometry verification. Rigorous QA prevents fit‑up issues against steel bridge girders and supports smooth, interruption‑free site erection workflows.


8. Optimised Packaging & Overseas Container Shipment

Seaworthy export packaging protects product condition through long‑haul logistics:

• Bundling: Panels are securely strapped into heavy‑duty bundles; wooden dunnage plus moisture‑barrier film between layers prevent scratching and condensation damage.
• Container Loading: Bundle lengths are optimised for maximum 20ft / 40ft container utilisation to control freight expense.
• Bundle Labelling: Each pack is clearly marked with batch numbers, piece lengths and shipping marks for fast site receiving and stock management.


9. Reliable Global Supplier for Steel Bridge Deck Solutions

Located in China, Hangzhou FAMOUS Steel Engineering Co., Ltd.(FASECbuildings) supplies AS/NZS 1397‑compliant steel structures and cost‑competitive ComFlor‑equivalent decking for worldwide clients. Merging advanced manufacturing capacity with dedicated engineering support, we deliver fit‑for‑purpose products at factory‑direct pricing.

Reach out to our engineering team with your project drawings or profile requirements. We will return a full formal quotation together with a customised production schedule to ensure your bridge deck panels arrive on‑time and ready for efficient site installation.
