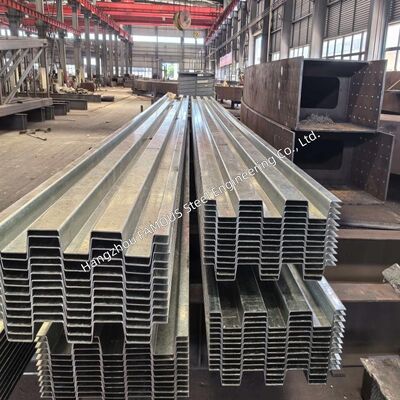

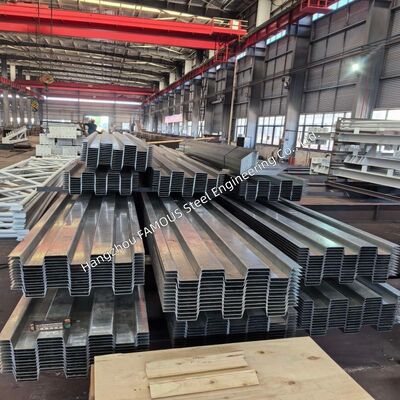

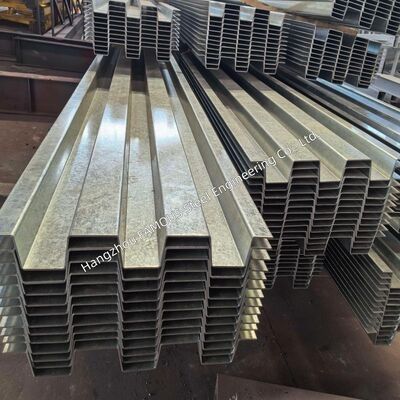

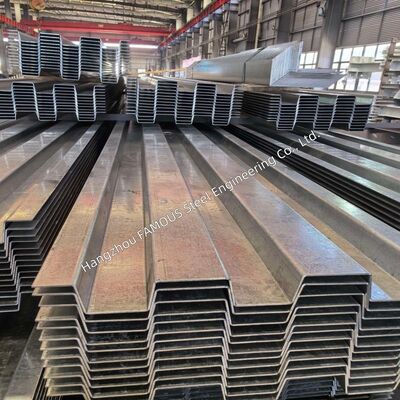

Hot-dip Galvanized Corrugated Steel Bridge Deck Forms – Heavy-Duty Permanent Formwork

  • Hot-dip Galvanized Corrugated Steel Bridge Deck Forms – Heavy-Duty Permanent Formwork
  • Hot-dip Galvanized Corrugated Steel Bridge Deck Forms – Heavy-Duty Permanent Formwork
  • Hot-dip Galvanized Corrugated Steel Bridge Deck Forms – Heavy-Duty Permanent Formwork
  • Hot-dip Galvanized Corrugated Steel Bridge Deck Forms – Heavy-Duty Permanent Formwork
Place of Origin China
Brand Name FASEC
Certification ISO 9001; CE; AS/NZS 1397; ASTM A653; MTCs
Model Number Steel Bridge Deck Forms
Minimum Order Quantity 1000 MT
Price USD 12-20/SQM
Packaging Details Sea Freight (Container/Bulk Vessel)
Delivery Time 10-30 Days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 2,000 – 5,000 MT/month
Product Details
Product Name Hot-dip Galvanized Corrugated Steel Bridge Deck Forms Application Steel Bridges, Viaducts, Heavy-duty Industrial Platforms
Material Galvanized Steel Surface Finish Hot-dip Galvanized
Core Function Heavy-duty Permanent Formwork, Load-bearing Component Customization Customized To Customer Requirements
Leave a Message
Product Description

Our Hot‑dip Galvanized Corrugated Steel Bridge Deck Forms is an all‑steel engineered solution for steel bridges, viaducts and heavy‑duty industrial platforms. Acting as heavy‑duty permanent formwork, these corrugated steel panels serve as an integrated load‑bearing component of bridge superstructure. The special corrugated geometry delivers outstanding rigidity, transferring dynamic vehicle loads and static dead loads to primary steel girders. It removes the need for temporary timber or steel shoring, cutting site labor, shortening construction cycles and improving site safety. Fully hot‑dip galvanized for long‑term anti‑corrosion performance, panels are supplied factory‑direct with precise dimensions under international structural standards.


Material Specifications

All dimensions and coatings are fully customizable to match project requirements:



Specification Category Standard Parameters & Customization Range
Steel Material Grade S355JR / ASTM A572 Gr.50 high‑strength structural carbon steel
Sheet Thickness 1.5 mm‑3.5 mm, adjusted by span and load‑bearing capacity
Zinc Coating Thickness Standard Z275 (275g/m²); upgradeable to Z600 for coastal corrosive environments
Corrugation Profile Depth 50 mm‑150 mm, matched to girder spacing for optimal stiffness
Standard Panel Length Max 15 m single piece; cut‑to‑length available
Fabrication Tolerance Strict ±1 mm tolerance for smooth on‑site fitting


44



Engineered Heavy‑Duty Structural Performance

Optimized corrugated trapezoidal profile raises section moment of inertia, enabling thin steel sheets to work as a solid structural diaphragm against bending and shear forces. As permanent formwork, panels become integral to the whole bridge system, offering reliable load distribution under heavy axle loads, high‑speed train vibration and seismic events. Stable deck performance is guaranteed throughout the whole service life.


Superior Hot‑Dip Galvanized Surface Protection

Each panel is hot‑dip galvanized complying with ASTM A123 & ISO 1461 for maintenance‑free long‑term service. Uniform zinc‑iron alloy coating provides physical barrier against moisture, road salt and chemical pollutants, plus sacrificial cathodic protection for minor scratches and cut edges. Excellent anti‑corrosion property lowers lifecycle cost under harsh weather conditions.


Precision Prefabrication & Rapid On‑Site Installation

Slitting, cold roll‑forming, shearing and galvanizing are completed inside our controlled factory. It ensures tight dimensional accuracy, clean edges and pre‑punched bolt holes. Each panel is clearly marked and labeled, together with complete installation drawings. On‑site workers can quickly weld or bolt panels to girder top flanges, reducing site labor and accelerating project progress


Your Global Partner for Steel Bridge Infrastructure

Based in China, Hangzhou FAMOUS Steel Engineering Co., Ltd.(FASECbuildings) is a trusted exporter of structural steel components for heavy infrastructure worldwide. We deliver transparent communication, professional structural calculation and competitive factory‑direct pricing.

Send your project drawings, span requirements and coating specifications to our engineering team. We will offer a detailed professional quotation and customized production schedule to keep your bridge project on‑time and on‑budget. Contact us today.
