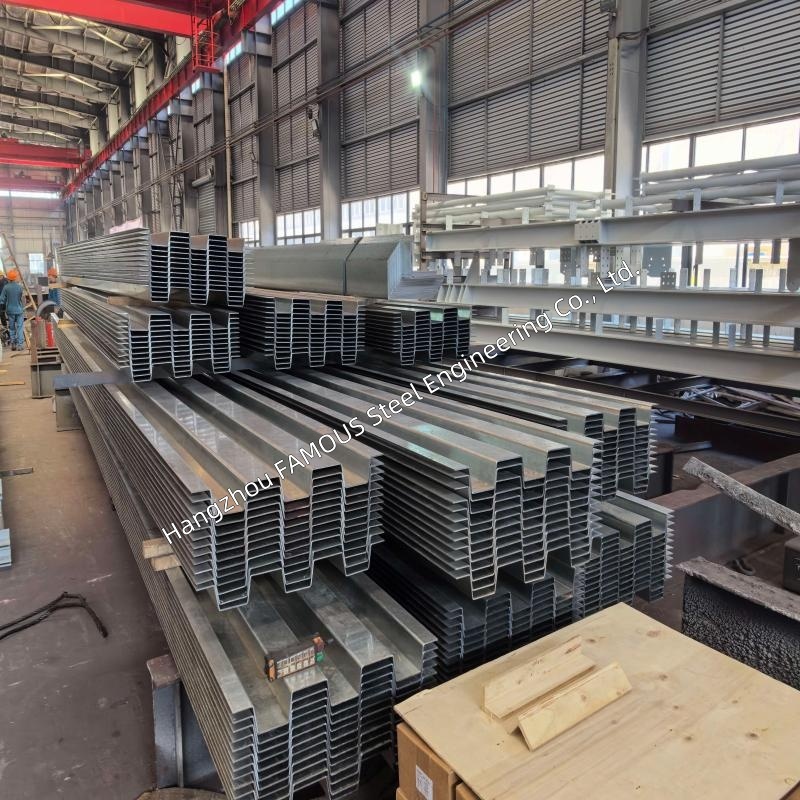

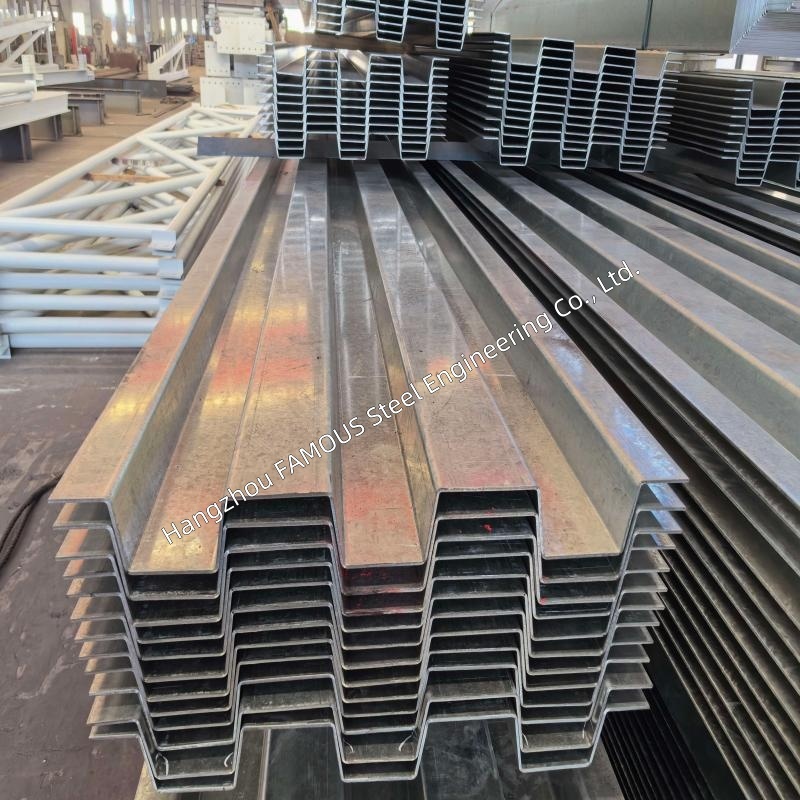

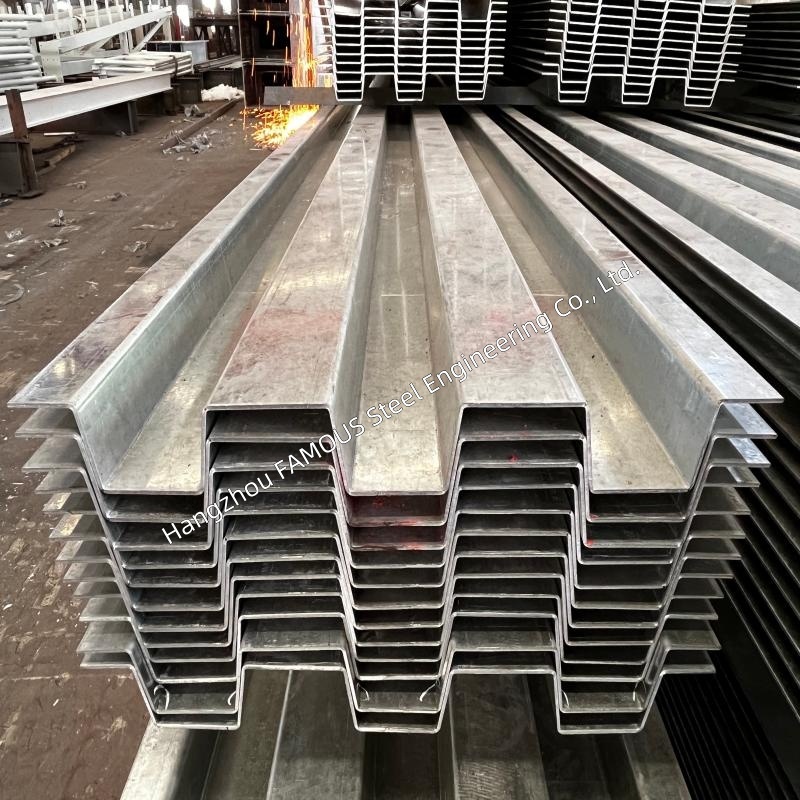

Steel Bridge Deck Forms | Composite Metal Decking for Bridge Infrastructure
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001; CE; AS/NZS 1397; ASTM A653; MTCs |
| Model Number | Steel Bridge Deck Forms |
| Minimum Order Quantity | 1000 MT |
| Price | USD 13-20/SQM |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 10-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2,000 – 5,000 MT/month |
Product Details
| Product Name | Composite Metal Decking | Base Material | Q345B, S355GD, ASTM A653 |
|---|---|---|---|
| Equivalent Profiles | Comflor 210 / 80 / 60, Bondek | Application | Urban Overpasses, Pedestrian/cycle Bridges, Railway Viaducts, Curved Ramps, Small To Medium-span Road Bridges |
| Core Function | Permanent Formwork & Tensile Reinforcement | Customization | Customized To Customer Requirements |
Product Description
Why Choose Our Steel Bridge Deck Forms?
Engineered for modern bridge construction, our deck forms combine proven composite performance with long-term durability. They eliminate temporary form removal while acting as tensile reinforcement, speeding up construction and lowering maintenance needs.

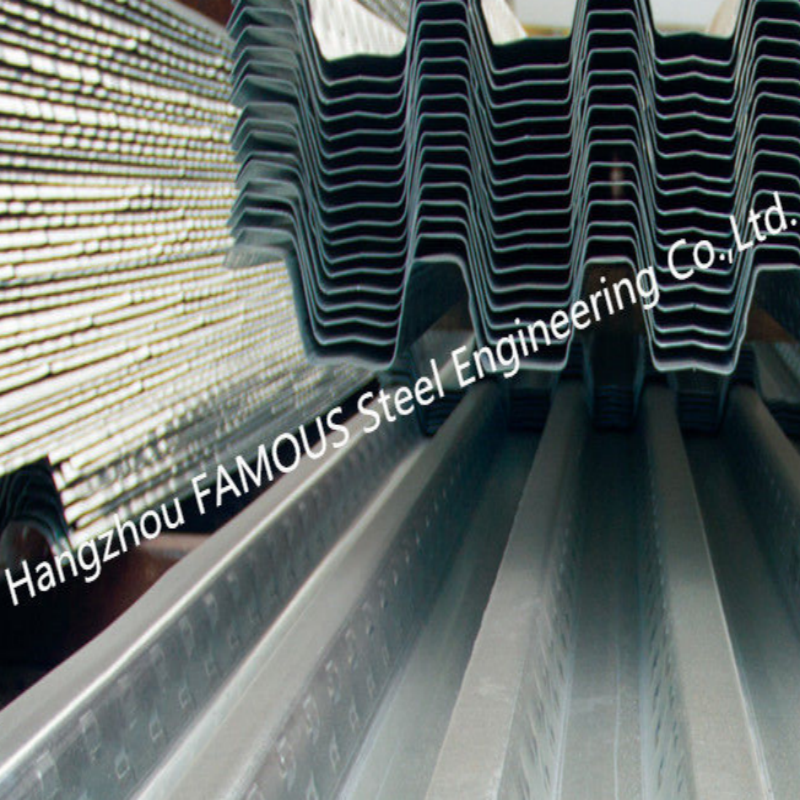

✅ Strong Composite Bond: Precision embossed surfaces lock with concrete, forming a stable steel-concrete deck system.
✅ Bridge-Ready Durability: Hot-dip galvanized (Z275–Z600) or epoxy coatings resist corrosion in harsh environments.
✅ Fast & Simple Installation: Lightweight profiles are quickly fixed to girders via welding or bolting.
✅ Versatile Design Compatibility: Fits straight spans, curved viaducts, ramps and interchange structures.
✅ Proven Cost Savings: Reduces labor, waste and lifecycle maintenance compared to traditional formwork.
Core Applications
Ideal for a wide range of bridge infrastructure projects:
- ● Urban highway overpasses & underpasses
- ● Pedestrian & cycle bridges
- ● Railway viaducts & light rail bridges
- ●Curved viaducts & interchange ramps
- ● Small to medium-span road bridges
- ● Bridge approach slabs & auxiliary structures
Product Specifications
Base Material: High-strength structural steel (Q345B, S355GD, ASTM A653)
- Profile Options: Trapezoidal, dovetail (re-entrant), flat; equivalents to Comflor 210/80/60, Bondek
- Thickness Range: 1.0–2.0mm (customized by span & load requirements)
- Effective Width: 600–1000mm standard modules (custom widths available)
- Corrosion Protection: Hot-dip galvanizing (Z275–Z600), epoxy primer or duplex coating
- Yield Strength: ≥ 345 MPa (up to 550 MPa for high-load applications)
- Compliance: AASHTO LRFD, Eurocode 4 and relevant national bridge codes
Our Competitive Edge
Factory-Direct Quality: Full control from raw material to finished product for consistent performance.
- International Profile Expertise: Specialized in Comflor/Bondek equivalents to meet regional standards.
- Custom Engineering Support: Technical assistance for profile selection, load calculations and installation.
- Global Export Capabilities: Seaworthy packaging, full MTCs (EN 10204 3.1) and SGS/BV inspection support.
Get Your Custom Solution Today
Send us your project drawings, load specifications and requirements. Our engineering team will provide a tailored solution and competitive quote within 24 hours.
