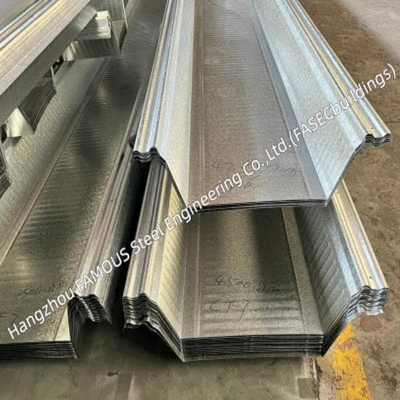

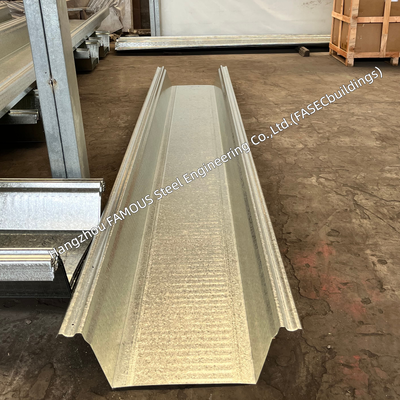

AS/NZS Compliant Steel Bridge Deck Panels – ComFlor Series Equivalent Permanent Formwork
| Place of Origin | China |
|---|---|
| Brand Name | FASEC |
| Certification | ISO 9001; CE; AS/NZS 1397; ASTM A653; MTCs |
| Model Number | Composite Floor Deck |
| Minimum Order Quantity | 1000 MT |
| Price | USD 12-20/SQM |
| Packaging Details | Sea Freight (Container/Bulk Vessel) |
| Delivery Time | 10-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2,000 – 5,000 MT/month |
Product Details
| Product Type | Galvanised Composite Floor Deck | Base Material | High-tensile Steel |
|---|---|---|---|
| Surface Coating | Z275 Standard; Z450 / Z600 Optional | Core Function | Permanent Formwork & Tensile Reinforcement |
| Applications | Multi-storey Commercial Buildings, Civil Infrastructure, Floor Slabs | Customization | Customized To Project Load And Span Requirements |
Product Description
Our AS/NZS Compliant Steel Bridge Deck Panels are engineering‑grade permanent composite formwork, engineered as drop‑in ComFlor series equivalent solutions for bridge decks and commercial steel building construction. Produced under full‑scope in‑factory quality assurance, every coil and finished panel complies with AS 1397 and AS/NZS 1365, roll‑formed from high‑strength hot‑dip zinc‑coated high‑tensile steel strip. The panels deliver outstanding span performance, composite structural efficiency and long‑term anti‑corrosion performance.
Working as integral permanent formwork, the steel deck contributes tensile capacity and enables full composite slab action. It greatly reduces or removes requirements for temporary propping and on‑site falsework, generating measurable savings in site labour, equipment rental and overall project timelines. Direct factory output guarantees strict dimensional compatibility against ComFlor reference profiles alongside competitive commercial terms for worldwide infrastructure tender and project orders.
AS/NZS Standard Compliance & Material Integrity
Product reliability is built upon full adherence to Australian & New Zealand construction standards. Input steel coil meets AS 1397 continuous hot‑dip metallic coated steel sheet specification together with AS/NZS 1365 performance requirements. Base steel grade is G550 high‑tensile steel, minimum yield strength ≥550 MPa to satisfy demanding composite structural loading. Full compliance satisfies rigorous safety, durability and specification audit expectations for Australian and New Zealand building and bridge infrastructure projects, supporting specification sign‑off by local structural engineers.
ComFlor Series Equivalent Interchangeable Profiles
Our roll‑formed profiles act as direct functional and dimensional alternatives to OEM ComFlor 60, 80 and 210 series, freeing clients from single‑source brand constraints. Standard effective panel width is 910 mm, standard BMT thickness covers 0.8 mm‑1.2 mm. Precise profile geometry delivers full dimensional equivalence, enabling straightforward specification for new builds as well as retrofitting and replacement work on already‑finalised structural designs, applicable across both building floor slabs and bridge deck applications.
Technical Specifications
All listed engineering parameters can be adjusted via custom manufacturing to satisfy project‑specific span tables, applied loads and design constraints.
| Specification Category | Detailed Engineering Parameters & Customization Data |
|---|---|
| Base Steel Material | High‑tensile steel strip to AS 1397, Grade G550, Minimum Yield Strength ≥ 550 MPa |
| Panel Thickness (BMT) | Standard: 0.8 mm / 1.0 mm / 1.2 mm; alternative thicknesses available upon formal project enquiry |
| Zinc Coating Class | Z350 (350 g/m²) as standard; Z450 (450 g/m²) optional for marine / highly corrosive environments |
| Profile Type / Effective Width | ComFlor 60 / 80 / 210 equivalent, effective width 910 mm |
| Manufactured Length Range | Cut‑to‑length: 0‑11.8 m, dimension optimised for 20GP / 40GP sea freight container loading |
| Corrosion Protection Mechanism | Hot‑dip galvanising with dual barrier + sacrificial cathodic protection; cut‑edge corrosion mitigation for long‑term service life |
Heavy‑Duty Structural Performance & Corrosion Resistance
Developed for long‑design‑life infrastructure service, panels utilise robust hot‑dip zinc metallurgical coating, resisting moisture, de‑icing salts, coastal salt spray and industrial atmospheric contaminants. Selectable Z350 / Z450 coating grades allow specification matching to site environmental classification, lowering whole‑of‑life inspection and maintenance expenditure. Positive composite interaction between steel deck and slab delivers enhanced slab stiffness, efficient load distribution and controlled deflection under static and dynamic heavy traffic loads, perfectly suited for bridge deck working conditions.
Precision Prefabrication & Accelerated Site Installation

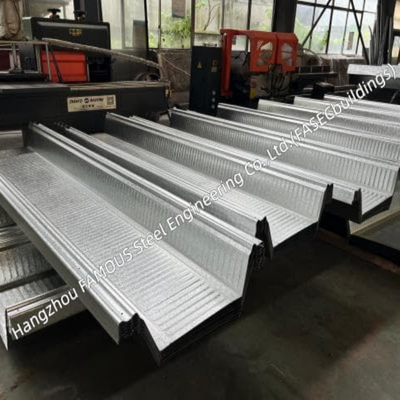

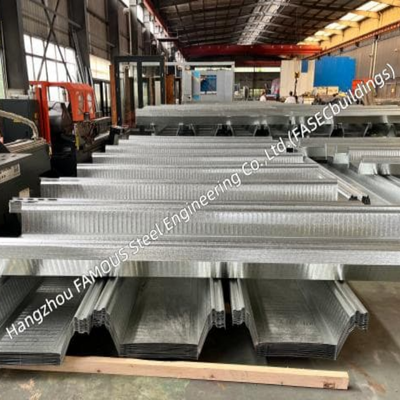

As a factory‑prefabricated structural component, panels are roll‑formed to exact cut‑length and profile tolerances with high‑accuracy continuous forming equipment. In‑plant production maintains stable dimensional consistency and clean, uniform finished edges, ready for field bolting or welding onto primary bridge girders. Thanks to its permanent formwork concept, large volumes of temporary shoring and falsework can be omitted, improving site‑site safety and helping contractors compress overall bridge construction critical path schedules.
Your Trusted Global Steel Deck System Supplier
Selecting a competent manufacturer is vital for risk control and long‑term project performance. We are Hangzhou FAMOUS Steel Engineering Co., Ltd.(FASECbuildings) from China, supplying AS/NZS‑qualified steel structures and ComFlor‑equivalent steel decking for international clients. We combine mature large‑volume manufacturing capacity with dedicated in‑house engineering support, delivering robust, cost‑optimised products for infrastructure and building projects globally.
Send over your project drawings and design requirements to our engineering team. We will return professional engineered quotations together with confirmed production lead‑time and container‑loading proposal to make certain your steel bridge deck panels arrive ready for fast‑track site installation.
